SID-10WR2 10.1" Semi-Industrial Panel PC with RK3568
10.1" Semi-Industrial Panel PC with RK3568
Key Features:
- 10.1" 1280 x 800 Semi-Industrial Panel PC with PCAP touch
- Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
- 2GB DDR4 / 32GB eMMC
- Fanless operation from -20°C ~ 60°C (-4°F ~ 140°F)
- Support Android 11, Debian 11
Description
Product Overview

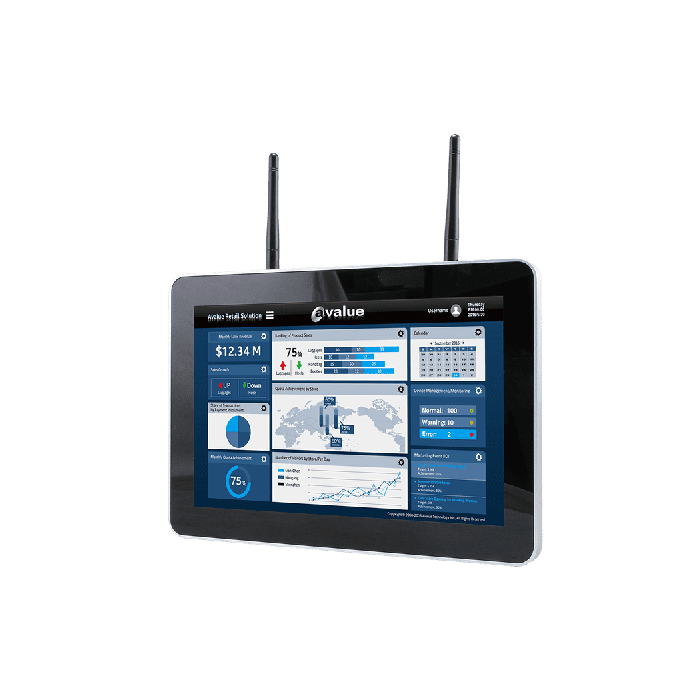

The Avalue SID-10WR2 is a 10.1-inch semi-industrial panel PC designed for embedded and industrial touch-display applications. Equipped with a Rockchip RK3568 quad-core ARM Cortex-A55 processor up to 2.0 GHz, 2 GB DDR4 memory and 32 GB eMMC storage, it features a 1280 × 800 multi-touch PCAP screen, a fanless design, a lockable DC input and IP65 front-panel protection. With support for Android 11 and Debian 11, and 12 V to 24 V DC input range, it is suitable for kiosk, HMI and industrial integration environments.
Key Features
Compact Performance
- Rockchip RK3568 ARM Cortex-A55 quad-core processor up to 2.0 GHz
- 2 GB DDR4 memory and 32 GB eMMC storage
- On-board graphics Mali-G52 supporting OpenGL ES, Vulkan and OpenCL
Rugged and Reliable Design
- Fanless architecture ensures silent, maintenance-free operation
- Wide DC input range from 12 V to 24 V for flexible industrial power integration
- Operating temperature from 0 °C to 40 °C and storage from −20 °C to 60 °C
- Front panel rated IP65 for dust and water resistance
Display and Touch Interface
- 10.1-inch TFT display with 1280 × 800 resolution
- Projected-capacitive (PCAP) multi-touch supporting up to 10-point input
- Brightness approximately 350 cd/m², contrast ratio approximately 800:1, viewing angles approx. 85° all around
Power and Connectivity
- External I/O includes 2 × USB 3.0, headphone jack, RJ45 Gigabit LAN, RS-232 (DB9) port and HDMI 2.0 output
- Internal I/O includes M.2 Key B (3042) slot for SSD or LTE module, optional Wi-Fi 802.11ac and Bluetooth 5.0
- Lockable DC-jack power connector for robust reliability
Certifications and Compliance
- CE and FCC Class B certified
- Designed for semi-industrial, 24/7 embedded display applications
Download
More Information
| Brand | Avalue Technology Inc | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
SID-10WR2-6803-A1R: SID-10WR2 DC In, Android 11
