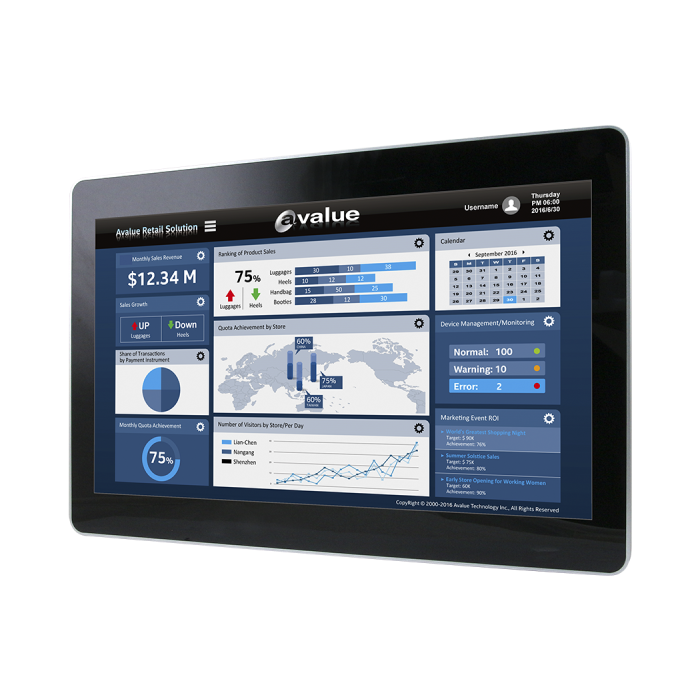

SID-15WAD 15.6" Slim Panel PC with Intel N50
SID-15WAD 15.6" Slim Panel PC with Intel N50
Key Features:
- 15.6″ industrial-grade LCD panel (1920 × 1280) with PCAP touch
- Powered by Intel® Processor N50 (6 MB cache, up to 3.4 GHz)
- 8 GB LPDDR5 system memory and 64 GB eMMC storage
- Fanless cooling design for silent and reliable operation
- IP65 front panel protection with VESA 100 × 100 mounting
- Wide viewing angles (85° U/D/L/R) and 250 cd/m² brightness
Description
Product Overview
The Avalue SID-15WAD is a 15.6-inch semi-industrial panel PC designed for embedded, commercial and industrial touch-display environments. Powered by the Intel Alder Lake-N N50 processor, with 8 GB LPDDR5 memory and 64 GB eMMC storage, it features a Full HD 1920 × 1080 projected-capacitive multi-touch display, IP65 front panel protection, and a fanless design. With flexible WLAN/Bluetooth options and broad OS support, the SID-15WAD provides a high-performance, low-power solution for HMIs, kiosks, digital signage and other embedded applications.
Key Features
Compact Performance
- Intel Alder Lake-N N50 processor (6 MB cache, up to 3.4 GHz)
- On-board 8 GB LPDDR5 memory and 64 GB eMMC storage
- Fanless architecture for silent, maintenance-free operation
- Supports Windows 10/11 and Ubuntu 24.04
Rugged and Reliable Design
- Wide input power: DC +12 V with lockable DC jack for industrial reliability
- Front panel rated to IP65 for protection against dust and water
- Operating temperature range 0 °C to 40 °C; storage range −20 °C to 60 °C
- Slim open-frame design (384 × 258 × 39 mm) and weight approximately 2.8 kg
Display and Touch Interface
- 15.6-inch Full HD (1920 × 1080) TFT panel with 10-point PCAP multi-touch
- Typical brightness around 250 cd/m²; wide 85° viewing angles in all directions
- True-flat front for easy cleaning and modern integrated looks
Power and Connectivity
- External I/O includes two USB 3.0 Type-A ports, audio jack, RJ45 Gigabit LAN, power button with LED, lockable DC jack
- Wireless options: Wi-Fi 802.11 a/b/g/n/ac/ax, optional Bluetooth 5.2
- Internal expansion includes a micro-SD slot and other embedded I/O options
Certifications and Compliance
- CE and FCC Class B certified
- Design targeted at semi-industrial, 24/7 embedded display systems
Dimensions Drawings
Download
More Information
| Brand | Avalue Technology Inc | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
