SID-15WR2 15.6" Slim Panel PC with Rockchip RK3568
15.6" Slim Panel PC with Rockchip RK3568
Key Features:
- 15.6" 1920 x 1080 Slim Panel PC with PCAP touch
- Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
- 4GB LPDDR4 / 32GB eMMC
- Fanless operation from 0°C ~ 40°C
- DC 12V and support Powered LAN (802.3at)
- Support Android 14
Description
Product Overview

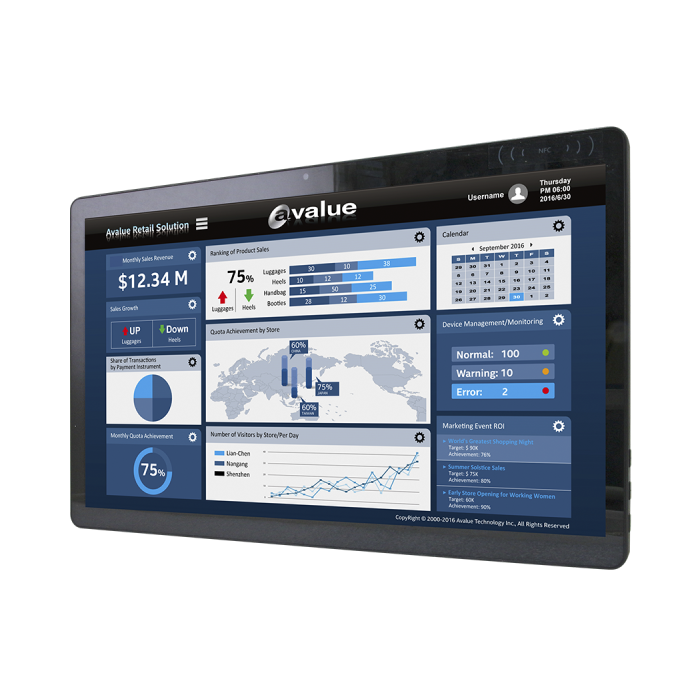

The Avalue SID-15WR2 is a 15.6-inch semi-industrial panel PC combining a Full HD 1920 × 1080 display, quad-core ARM processing and fanless design in a compact, slim chassis. Built for kiosks, industrial HMIs, retail signage and embedded control systems, it delivers dependable performance with low power consumption. With its true-flat projected-capacitive touchscreen, wide DC input range and durable construction, the SID-15WR2 is engineered for 24/7 operation in harsh or space-limited environments.
Key Features
Compact Performance
- Rockchip RK3568 ARM Cortex-A55 quad-core processor up to 2.0 GHz
- 4 GB LPDDR4 memory and 32 GB eMMC storage
- Supports Android 14 or Debian 11 operating systems
- Integrated Mali-G52 GPU for smooth graphics and multimedia performance
Rugged and Reliable Design
- Fanless design for silent, maintenance-free operation
- Wide DC input range from 12 V to 24 V for flexible integration
- Operating temperature range from 0 °C to 40 °C and storage from −20 °C to 60 °C
- Compact open-frame design suitable for OEM or embedded panel installation
Display and Touch Interface
- 15.6-inch Full HD (1920 × 1080) IPS display with projected-capacitive multi-touch
- Brightness 250 cd/m², contrast ratio 800:1 and wide 85° viewing angles
- True-flat design for modern, easy-to-clean front surface
Power and Connectivity
- External I/O includes two USB 3.0 ports, HDMI 2.0 output, RJ45 Gigabit LAN, RS-232 and RS-485 serial ports
- Internal expansion includes M.2 Key B (3042) slot for SSD or LTE module
- Lockable DC power input for industrial reliability
Certifications and Compliance
- CE and FCC Class B certified
- Designed for continuous 24/7 operation in semi-industrial applications
