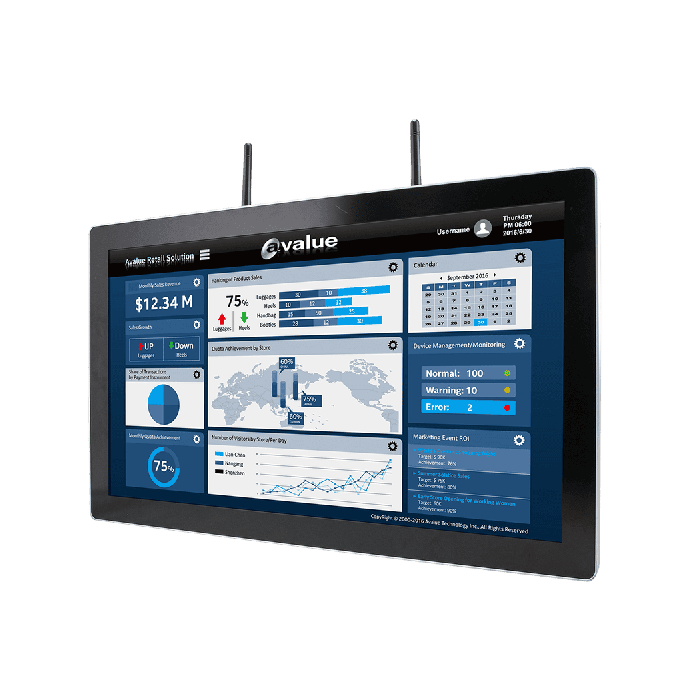

SID-21W04 21.5" Semi Industrial Panel PC with Celeron J3455
15.6" Semi-Industrial Panel PC with Intel® Celeron™ Processor J3455
Key Features:
- 15.6" 1920 x 1080 Semi Industrial Panel PC with True-flat PCAP touch
- Intel® Celeron® Processor J3455
- 1 x 204 pin SO-DIMM DDR3L 4GB (8GB for BOM Option)
- 32GB eMMC / 1 x M.2 B Key for SSD
- Fanless operation from 0°C ~ 40°C
- Wide voltage input +12 ~ 24Vdc
Description
Product Overview
The Avalue SID-15W04 is a 15.6-inch semi-industrial panel PC engineered for embedded and industrial applications. Featuring an Intel Celeron J3455 processor, a Full HD true-flat multi-touch display, wide voltage input and robust I/O options, it is ideal for HMIs, kiosks, digital signage, smart terminals and industrial control-systems. With fanless operation, Wi-Fi/BT support and flexible internal expansion it delivers reliable performance for 24/7 environments.
Key Features
Compact Performance
- Intel Celeron J3455 quad-core CPU (1.50 GHz)
- 4 GB DDR3L SO-DIMM memory as standard (8 GB optional)
- 32 GB eMMC storage plus M.2 Key B (3042) slot for SSD or LTE module
Rugged and Reliable Design
- Fanless architecture for silent, maintenance-free use
- Wide DC input range from 12 V to 24 V for flexible power integration
- Front panel rated IP65 for dust and water resistance
- Operating temperature range from 0 °C to 40 °C and storage from −20 °C to 60 °C
Display and Touch Interface
- 15.6-inch Full HD (1920 × 1080) TFT display
- Projected-capacitive multi-touch supporting up to 10 points
- Brightness 220 cd/m² and contrast ratio 800:1
- Wide 85° viewing angles and true-flat design for seamless integration
Power and Connectivity
- External I/O includes two USB 3.0 ports, HDMI 1.4b, RJ45 Gigabit LAN, headphone jack, RS-232 and RS-485 ports
- Internal expansion includes M.2 Key B (3042) slot and micro-SIM slot for optional wireless modules
Certifications and Compliance
- CE and FCC Class B certified
- Designed for 24/7 operation in embedded and industrial applications
Dimensions Drawings
Download
More Information
| Brand | Avalue Technology Inc |
|---|---|
| Specifications |
System Information Processor Intel® Celeron® Processor J3455 System Memory 1 x 204-pin SO-DIMM DDR3L 4GB (8GB for BOM Option) Storage 32GB eMMC Other Storage Device 1 x Micro SD Slot Graphic Chipset Intel® HD Graphics 500 Speaker Output Optional 2 x 4Ω 2W LAN Chipset Realtek RTL8211FI-CG Ethernet Interface 10/100/1000 Base-Tx GbE compatible DC Input +12V ~ +24V DC Input Connector Lockable DC Jack Adapter Input: 100~240 Vac/50~60 Hz Output: 60W Adapter (12V @ 5A Adapter) OS Windows 10 / Ubuntu 20.04 Certification Information CE, FCC Class B LCD Size 21.5" LCD Panel TFT Resolution 1920 x 1080 Pixel pitch 0.24795 (H) x 0.24795 (V) mm Luminance 250 cd/m² Contrast ratio 3000 Viewing angle 89 (U), 89 (D), 89 (L), 89 (R) Response time 30 ms Backlight LED Touch Type Projective capacitive multi-touch up to 10 points Touch Light Transmission 86% USB Port 2 x USB 3.0 Audio Port 1 x Headphone Jack LAN Port 1 x RJ45 Wireless LAN Antenna 2 x Wi-Fi Antenna COM Port 1 x RS-232 (DB9) HDMI 1 x HDMI 1.4b Switch 1 x Power Button DC input 1 x DC Jack LED indicator 1 x Power LED Expansion 1 x M.2 Key B (3042, SATA3 / USB 2.0, support SSD/LTE Module) SIM Slot 1 x Micro SIM Slot WLAN Optional Wi-Fi 802.11ac/a/b/g/n Bluetooth Optional BT 5.0 Operating Temp. 0°C ~ 40°C (32°F ~ 104°F) Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F) Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Dimension (W x L x H) 535 x 329.31 x 56.6mm Weight 8.7 kg IP Rating Front panel IP65 VESA 100 x 100 Power Requirement DC +12 ~ +24V System Fan Fanless Construction - Front Aluminium extrusion with a cover lens Construction - Rear Metal sheet |
Ordering Information
SID-15W04-3410-A1R: 15.6" SID J3455 4G 32G Ubuntu 20.04
SID-15W04-3411-A1R: 15.6" SID J3455 4G 32G 2019 WIN10
