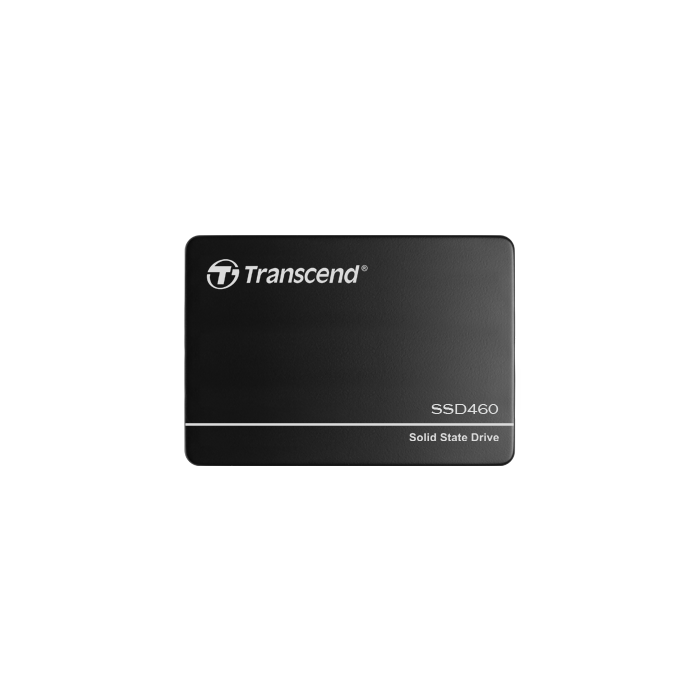

SSD460K & SSD460K-I 2.5" DRAM-less SSD

SKU: TSxxxxSSD460K/-I

2.5" DRAM-less SSD SSD460K features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology

Description

Compared to 3D NAND at 96 layers, this density breakthrough greatly improves storage efficiency. Transcend's industrial 2.5" DRAM-less SSD SSD460K features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology. The SSD460K is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and extended operational life.

Key Features:

  • Compliant with RoHS 2.0 standards
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Supports Transcend Scope Pro software
  • Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
  • Anti-sulfur technology implemented to prevent sulfurization in the environment
  • NCQ command for better performance
  • TRIM command for better performance
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • Advanced Garbage Collection
  • Advanced Global Wear-Leveling and Block management for reliability



Download

More Information

Brand Transcend
Specifications

Appearance

Dimensions 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27")
Weight 54 g (1.9 oz)
Form Factor
  • 2.5"

Interface

Bus Interface
  • SATA III 6Gb/s

Storage

Capacity
  • 64 GB/
  • 128 GB/
  • 256 GB/
  • 512 GB/
  • 1 TB/
  • 2 TB
Flash Type
  • 112-layer 3D NAND flash

Operating Environment

Operating Voltage
  • 5V±5%
Operating Temperature
  • Extended Temp.
    -20°C (-4°F) ~ 75°C (167°F)
  •
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
Shock
  • 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)

Power

Power Consumption (Operation) 1.9 watt(s)
Power Consumption (Sleep) 0.3 watt(s)

Performance

Sequential Read/Write (CrystalDiskMark) Read: up to 560 MB/s
Write: up to 500 MB/s
4K Random Read/Write (IOmeter) Read: up to 55,000 IOPS
Write: up to 80,000 IOPS
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Terabytes Written (TBW) up to 4376 TBW
Drive Writes Per Day (DWPD) 1.95 (3 yrs)
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses endurance under the highest capacity.
