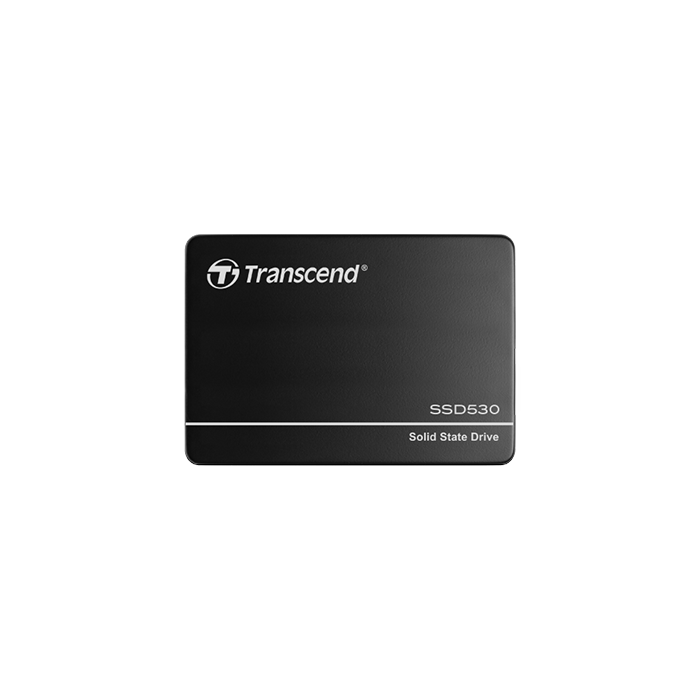

SSD530K 2.5" SATA SSD

The SSD530K from Transcend includes a SATA III 6Gb/s interface, 3D NAND flash memory, and Transcend's exclusive SLC mode technology. When combined, these provide superior reliability and endurance that is nearly equivalent to SLC, but at a lower cost. The SSD530K has a DRAM cache for fast access and is designed to operate in extreme temperatures (-20°C to 75°C), making it ideal for embedded applications such as embedded automation computers, engineering machines, and fanless PCs. Reliable speeds and customised functions meet the needs of a wide range of embedded system applications.

Key Features:

Firmware:

• Dynamic thermal throttling
• Built-in LDPC ECC (Error Correction Code) functionality
• Advanced Global Wear-Leveling and Block management for reliability
• Advanced Garbage Collection
• Early Move
• Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
• TRIM command for better performance
• NCQ command for better performance
• Full drive encryption with Advanced Encryption Standard (AES) (optional)
• Power-saving DevSleep (Device Sleep) mode

Hardware:

• Compliant with RoHS 2.0 standards
• DDR3 DRAM Cache embedded
• High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability
• Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
• Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
• Promised operational reliability in an extended temperature range (from -20°C to 75°C)
