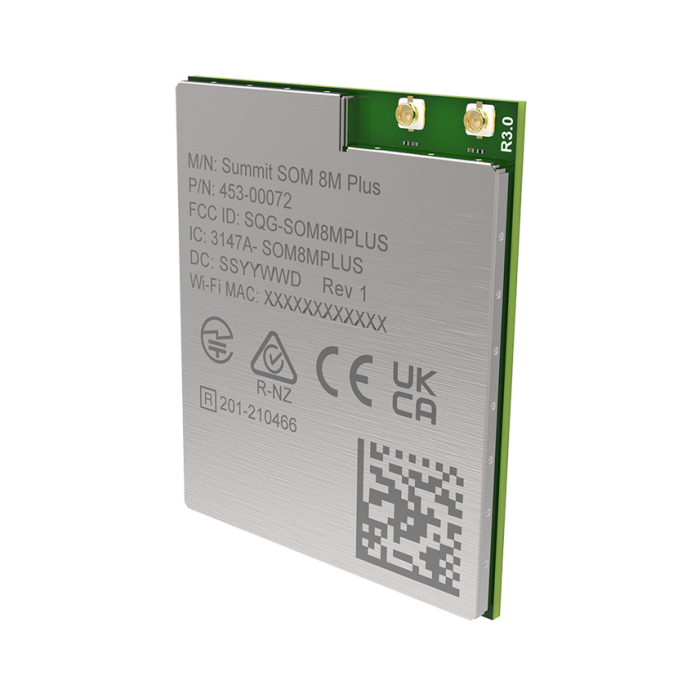

Summit SOM 8M Plus System-on-Module - WiFi 5 + Bluetooth 5.3
i.MX 8M Plus with Dual-Band 2x2 Wi-Fi 5 + Bluetooth 5.3 System-on-Module
Description
The Summit SOM 8M Plus, which is powered by NXP Semiconductor's i.MX 8M Plus processor and 88W8997 wireless SoC, is a versatile, power-efficient quad Cortex-A53 and Cortex-M7 solution for powerful heterogeneous multiprocessing, machine learning, rich multimedia (graphics, video, vision, and audio), advanced connectivity, and enhanced security to enable high-performance, flexible solutions.
Features:
Wi-Fi 5 2x2 MU-MIMO
Bluetooth 5.3
1.6 GHz quad-core Cortex-A53 MPU and 800 MHz Corex-M7 MCU
Machine learning, graphics, video, vision, and audio – up to three displays
Secure enclave and secure boot powered by i.MX 8M Plus
Extensive range of pre-certified antennas
10+ year product lifecycle
CVE remediated Long Term Support Linux
Upcoming FIPS 140-3 Level 1 validation
Industrial temperature rating
Global certifications/registrations
More Information
Brand
Ezurio (Laird Technologies)
Specifications
Processors
Microprocessor
4x Cortex®-A53 cores @ 1.6 GHz
Microcontroller
1x Cortex®-M7 core @ 800 MHz
Audio
Graphics
GC7000UL with 2 shaders for 3D and GC520L for 2D
Machine Learning
Neural Processing Unit (NPU) with 2.3 TOP/s
Memory
RAM
Up to 2GB LPDDR4 standard; Up to 6GB LPDDR4 on request
Storage
Up to 16GB eMMC 5.1 standard; Up to 64GB eMMC 5.1 on request
Machine Learning
Neural Processing Unit
Keyword detect, noise reduction, beamforming
Speech recognition (i.e. Deep Speech 2)
Image recognition (i.e. ResNet-50)
Graphics and Video
Graphics Processing Unit
166 million triangles/sec
1.0 giga pixel/sec
16 GFLOPs 32-bit
OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan
2D acceleration
Video Processing Unit
Video Decode
1080p60 HEVC/H.265 Main, Main 10 (up to level 5.1)
1080p60 VP9 Profile 0, 2
1080p60 VP8
1080p60 AVC/H.264 Baseline, Main, High decoder
Video Encode
1080p60 AVC/H.264 encoder
1080p60 HEVC/H.265 encoder
Display Interfaces
1x MIPI DSI, up to UWHD and WUXGA
1x LVDS Tx, up to 1920x1080p60
1x HDMI 2.0a Tx, up to 4kp30
Vision
Camera
Image Signal Processor
375 Mpixel/s HDR ISP supporting configurations, such as 12MP@30fps, 4kp45, or 2x 1080p80
Audio
Audio Interfaces
SPDIF input and output
Six external SAI modules supporting I2S, AC97, TDM, codec/DSP, and DSD interfaces
ASRC
eARC/ARC (HDMI)
8-channel PDM mic input
Peripherals
Input/Output
2x USB 3.0/2.0 Dual-Role with PHY
2x Gbit Ethernet with IEEE® 1588, AVB (One also supports TSN)
2x CAN/CAN FD
4x UART 5 Mbit/s
6x I2C
3x SPI
1x SDIO 3.0/eMMC 5.1
Wireless Specification
Wi-Fi
Bluetooth®
Frequency
Transmit Power
Receive Sensitivity
Antenna Options
2x U.FL connectors for external antennas
Raw Data Rates (Air)
Wi-Fi 5 866.7Mbit/s - MCS9, 2 Spatial Streams, 80MHz, 256QAM, SGI
Key Wi-Fi Features
Wi-Fi 5 (802.11ac)
IEEE 802.11 a/b/g/n/ac
20, 40 & 80MHz bandwidth support
MU-MIMO, OFDMA
Transmit Beamforming
Key Bluetooth Features
Bluetooth
Classic Bluetooth – BR / EDR
2 x WideBand Speech (WBS) links
Central / Peripheral Modes
Up to 16 Bluetooth LE connections
LE Secure Connections
2MPHY
Supply Voltage
Power Consumption
Estimated Current
Continuous TX:
2.4 GHz band – TBD
5 GHz band – TBD
Physical
Dimensions
40mm x 47 mm x ?.? mm (SIP Modules)
Environmental
Miscellaneous
Lead-Free
Lead-free and RoHS-compliant
Development Kit
Development board, accessories, and evaluation software
Qualifications
Regulatory
