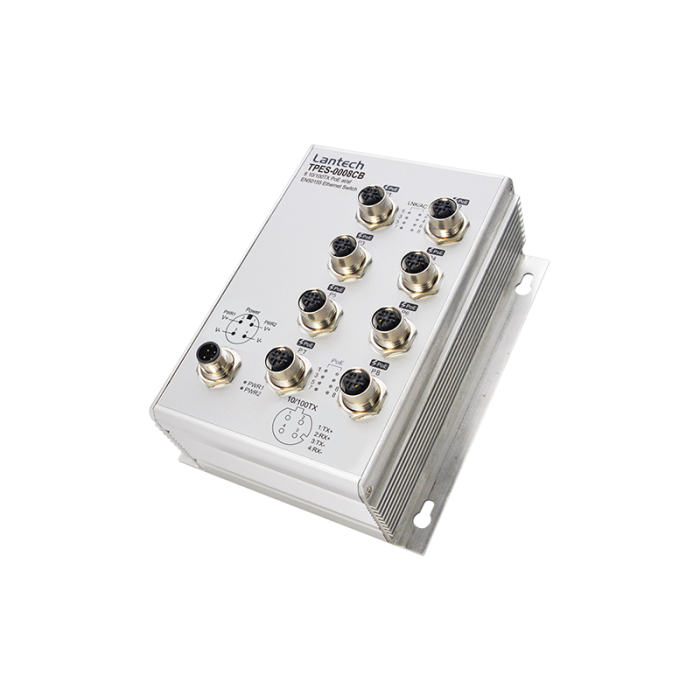

T(P)ES-0008CB EN50155 Ethernet Switch
8 10/100TX (PoE at/af) EN50155 Ethernet Switch
Key Features:
- Redundant dual power input design
- IEEE802.3at/af up to 30W PoE output per port
- PoE budget up to 80W for 8 Ports with galvanic isolation
- Inrush current prevention and polarity reverse protection
- EN50155/50121-3-2/50121-4 and EN45545-2 Fire & Smoke verification
- E-mark certificate and ITxPT label w/ ignition function
Description
The Lantech T(P)ES-0008CB is an 8 10/100 Base-TX with M12- connectors EN50155 unmanaged Ethernet switch with IP54 rated protection which meets the high-reliability requirements demanded by industrial rolling stock applications.
Rugged Dual 24VI/24TVI Power Input with 8 PoE Ports
The T(P)ES-0008CB 24VI model accepts 9~36VDC dual input and 24TVI model accepts 16.8~56VDC with galvanic isolation to PoE and all Ethernet ports. PoE feeding with 80W budget from internal power. The redundant power input design prevents inrush current and safeguards against polarity reversal.
- Galvanic isolation
- 80W PoE budget
- Inrush current limitation
- Reverse polarity protection
Verified Durability for Extreme Environments
The T(P)ES-0008CB is designed to meet with critical network environment with IP54 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and vibration. It is labeled with ITxPT public transport standards and also compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start. For greater flexibility in application the T(P)ES-0008CB supports an extended operating temperature range from -40°C to 75°C.
- IP54 for protection against dust and water
- Complies with EN 61373:2010 stability testing (Shock and Vibration)
- E-marking certificate for vehicle application
- ITxPT labeled with ignition function
- ISO 7637-2 compliant
- EN50155/50121-3-2/50121-4 and EN45545-2 Fire & Smoke verification
- Extended working temperature (-40°C ~ 75°C)
Efficient PoE timer when ignition off
Efficient PoE configuration when ignition off supports optional PoE feeding OFF timer (1/5/10mins or default by 60mins) at ignition off mode to prevent car battery drain-out (- IGN model). The E-marking certificate makes it the most suitable switch for bus, carriage, other vehicle applications as well as for industrial areas where the power source is limited with 12V or 24V but has demand of IP surveillance or VoIP applications.
Other Features
- Supports IEEE802.3at/af feeding power up to 30W per PoE port
- Back-plane (Switching Fabric): 1.6 Gbps
- 16K MAC address table
- Wall mount design design
Download
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Hardware Specifications
|
Ordering Information
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
8351-142 |
TPES-0008CB-54-24VI | 8 10/100TX PoE at/af Ethernet Switch w/M12 connectors; 9~36VDC dual power inputs w/ PoE galvanic isolation; E-marking certified; IP54 rated; -40°C to 75°C |
8351-1421 |
TPES-0008CB-54-24TVI | 8 10/100TX PoE at/af Ethernet Switch w/M12 connectors; 16.8~56VDC dual power inputs w/ PoE galvanic isolation; E-marking certified; IP54 rated; -40°C to 75°C |
8351-1422  |
TPES-0008CB-54-24VI-IGN | 8 10/100TX PoE at/af Ethernet Switch w/M12 connectors; 9~36VDC dual power inputs w/ PoE galvanic isolation; E-marking and ITxPT certified w/ignition; IP54 rated; -40°C to 75°C |
| 8351-1426 |
TES-0008CB-54-24VI | 8 10/100TX Ethernet Switch w/M12 connectors; 9~36VDC dual power inputs w/ galvanic isolation; E-marking certified; IP54 rated; -40°C to 75°C |
| 8351-14261 |
TES-0008CB-54-24TVI | 8 10/100TX Ethernet Switch w/M12 connectors; 16.8~56VDC dual power inputs w/ galvanic isolation; E-marking certified; IP54 rated; -40°C to 75°C |
| 8351-1427 |
TES-0008CB-54-24VI-IGN | 8 10/100TX Ethernet Switch w/M12 connectors; 9~36VDC dual power inputs w/ galvanic isolation; E-marking and ITxPT certified w/ignition; IP54 rated; -40°C to 75°C |
OPTIONAL ACCESSORIES - Connector
|
Model name |
Description |
|---|---|
| ECON120005PF | 5 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
| ECONM12-04A(F)-C-180 | 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
| ECONM12-04D(M)-C-180 | 4 pin M12 (Male) D-coded 180 degree crimp type connector for data |
OPTIONAL ACCESSORIES - Cable
|
Model name |
Description |
|---|---|
| ECONM12-5P(F)70CM CABLE | 5 pin M12 (Female) A-coded 90 degree cable for power supply, 70cm |
| ECONM12-4P(F)1.5M CABLE | 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm |
| ECAB124030MJS | 4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm |
| ECONM12-05A(F) to MCP 6P-20CM CABLE | 5 pin M12 (Female) A-coded 180 degree to 6 pin MCP power cable, 20cm (For ignition models) |
