T(P)ES-0105T X coded EN50155 Ethernet Switch
5 10/100TX + 1 10/100/1000T X-coded EN50155 Ethernet Switch (w/5 PoE at/af)
Key Features:
- Redundant dual power input design
- EN50155 verification with inrush current prevention
- PoE budget up to 55W for 5 Ports with galvanic isolation
- ISO16750-2 P5A compliant and E-marking certificate for vehicle application (24VI)
- ITxPT labeled w/ignition function (24VI-IGN model)
- High reliability and extended working temperature with Fire & Smoke verification
Description

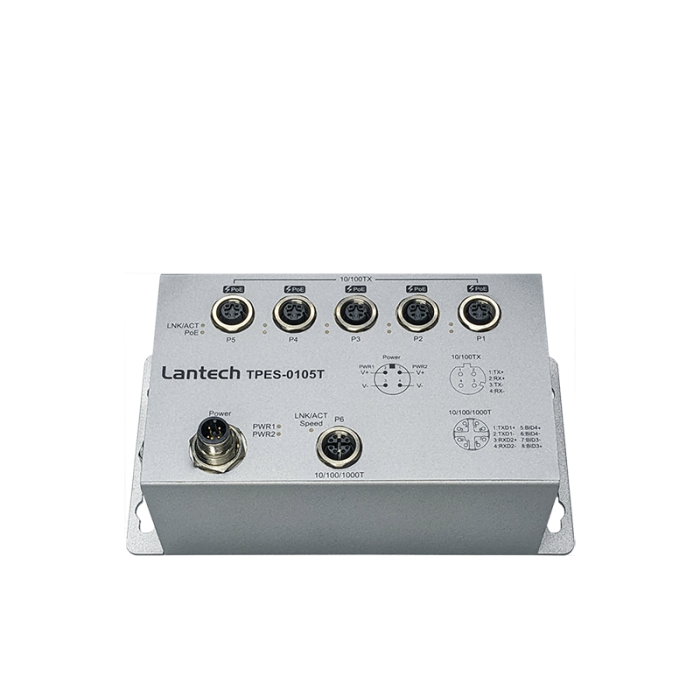

The Lantech T(P)ES-0105T is a 5 10/100 Base-TX + 1 10/100/1000 Base-T (with 5 ports 802.3at/af PoE ports) with M12 connectors unmanaged EN50155 Ethernet switch with IP44 rated protection which meets the high-reliability requirements demanded by industrial rolling stock applications.
Rugged Dual 24VI/24TVI/WVI Power Input with 8 PoE Ports
The TPES-0105T accepts 9~36VDC (24VI model) or 16.8~56VDC (24TVI model) dual input with galvanic isolation and PoE model can feed 54V output for PoE feeding with 55W budget. The inrush current on initial power up can be limited to lower than 10 x nominal current.
- 55W PoE Budget
- Inrush current limitation
- Reverse polarity protection
- Galvanic isolation to shield from transients
EN50155, EN50121-4 & EN45545 verification; High reliability and extended working temperature
T(P)ES-0105T passed serious tests under extensive Industrial EMI and Safety standards. With EN45545-2 Fire & Smoke and EN50155 verification, the T(P)ES-0105T is the best switch for railway on-board/track side, vehicle, and mining applications. It is designed to meet a critical network environment with IP44 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and vibration. For greater flexibility in the application, the T(P)ES-0105T supports an extended operating temperature range from -20°C ~70°C for Standard Model.
E-marking certificate; ISO 16750-2 compliant
Lantech T(P)ES-0105T is compliant with ISO 16750-2 P5A (12V system DC 14V 87V/0.5Ω/400ms; 24V system DC 28V 174V/2Ω/350ms) which protects the switch from being damaged by high voltage that could be found at vehicle cranky start. The E-marking certificate makes it the most suitable switch for bus, carriage, trams, and other vehicles application as well as for industrial areas where thepower source is limited with 12V or 24V but has demand of IP surveillance or VoIP applications.
Other features
- Back-plane (Switching Fabric): 3 Gbps
- 8K MAC address table
- Wall mount design
Download
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Hardware Specifications
|
Ordering Information
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
8351-1369 |
TPES-0105T-5-44-24VI | 5 10/100TX + 1 10/100/1000T w/5 PoE at/af EN50155 M12 Ethernet Switch w/ PoE galvanic isolation; 9~36VDC dual input; -20°C to 70°C; IP44 rated |
| 8351-13691 |
TPES-0105T-5-44-24VI-E | 5 10/100TX + 1 10/100/1000T w/5 PoE at/af EN50155 M12 Ethernet Switch w/ PoE galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP44 rated |
| 8351-13692 |
TPES-0105T-5-44-24VI-IGN | 5 10/100TX + 1 10/100/1000T w/5 PoE at/af EN50155 M12 Ethernet Switch w/ PoE galvanic isolation & ignition; 9~36VDC dual input; -20°C to 70°C; IP44 rated; ITxPT* certified |
| 8351-13693 |
TPES-0105T-5-44-24VI-E-IGN | 5 10/100TX + 1 10/100/1000T w/5 PoE at/af EN50155 M12 Ethernet Switch w/ PoE galvanic isolation & ignition; 9~36VDC dual input; -40°C to 70°C; IP44 rated; ITxPT* certified |
8351-13694 |
TPES-0105T-5-44-24TVI | 5 10/100TX + 1 10/100/1000T w/5 PoE at/af EN50155 M12 Ethernet Switch w/ PoE galvanic isolation; 16.8~56VDC dual input; -20°C to 70°C; IP44 rated |
| 8351-13695 |
TPES-0105T-5-44-24TVI-E | 5 10/100TX + 1 10/100/1000T w/5 PoE at/af EN50155 M12 Ethernet Switch w/ PoE galvanic isolation; 16.8~56VDC dual input; -40°C to 70°C; IP44 rated |
| 8351-1368 |
TES-0105T-44-24VI | 5 10/100TX + 1 10/100/1000T EN50155 M12 Ethernet Switch w/ PoE galvanic isolation; 9~36VDC dual input; -20°C to 70°C; IP44 rated |
| 8351-13681 |
TES-0105T-44-24VI-E | 5 10/100TX + 1 10/100/1000T EN50155 M12 Ethernet Switch w/ PoE galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP44 rated |
| 8351-13682 |
TES-0105T-44-24VI-IGN | 5 10/100TX + 1 10/100/1000T EN50155 M12 Ethernet Switch w/ PoE galvanic isolation & ignition; 9~36VDC dual input; -20°C to 70°C; IP44 rated; ITxPT* certified |
| 8351-13683 |
TES-0105T-44-24VI-E-IGN | 5 10/100TX + 1 10/100/1000T EN50155 M12 Ethernet Switch w/ PoE galvanic isolation & ignition; 9~36VDC dual input; -40°C to 70°C; IP44 rated; ITxPT* certified |
| 8351-13684 |
TES-0105T-44-24TVI | 5 10/100TX + 1 10/100/1000T EN50155 M12 Ethernet Switch w/ PoE galvanic isolation; 16.8~56VDC dual input; -20°C to 70°C; IP44 rated |
| 8351-13685 |
TES-0105T-44-24TVI-E | 5 10/100TX + 1 10/100/1000T EN50155 M12 Ethernet Switch w/ PoE galvanic isolation; 16.8~56VDC dual input; -40°C to 70°C; IP44 rated |
OPTIONAL ACCESSORIES - Connector
|
Model name |
Description |
|---|---|
| ECONM12-04A(F)-C-180 | 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
| ECONM12-04D(M)-C-180 | 4 pin M12 (Male) D-coded 180 degree crimp type connector for data |
OPTIONAL ACCESSORIES - Cable
|
Model name |
Description |
|---|---|
| ECONM12-4P(F)1.5M CABLE | 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm |
| ECAB124030MJS | 4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm |
