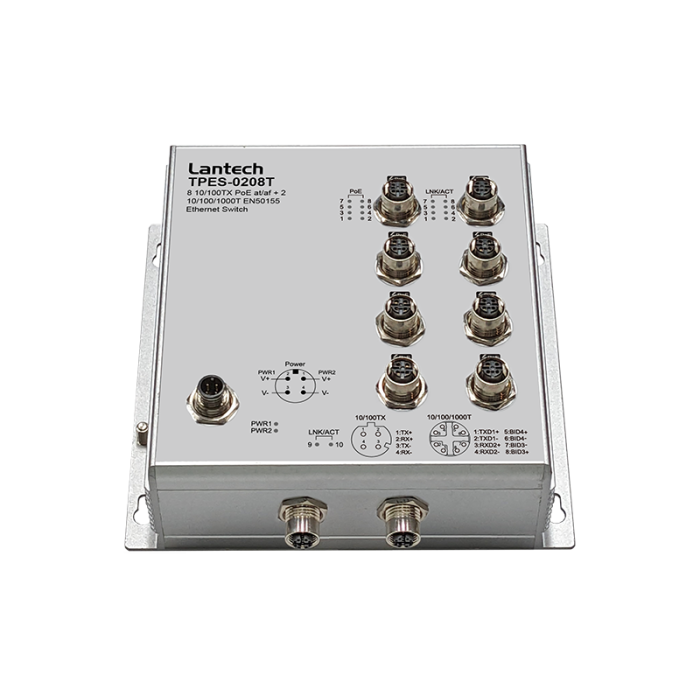

T(P)ES-0208T X-coded EN50155 Ethernet Switch
8 10/100TX + 2 10/100/1000T X-coded EN50155 Ethernet Switch (w/8 PoE at/af)
Key Features:
- Redundant dual power input design
- Optional copper bypass in case of power failure
- EN50155 verification with inrush current prevention and polarity reverse protection
- PoE budget up to 80W for 8 Ports with galvanic isolation
- ISO16750-2 P5A compliant and E-marking certificate for vehicle application (24VI)*
- High reliability and extended working temperature with Fire & Smoke verification
Description
The Lantech T(P)ES-0208T (IP54) is a 8 10/100TX + 2 10/100/1000T with M12 connector EN50155 (PoE) unmanaged Ethernet switch for IP54 rated protection, which meets the high reliability requirements demanded by industrial rolling stock applications.
Rugged Dual 24VI/24TVI/WVI Power Input with 8 PoE Ports
The TPES-0208T-8 (IP54) supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port (8 ports in total) for various IP PD devices. The total PoE budget is up to 80W. The redundant power input design prevents inrush current and safeguards against polarity reversal. PoE galvanic isolation up to 1.5KVDC to provide power input to PoE Ethernet ports insulation prevents cabling and grounding incidents from damaging the Ethernet switch itself.
- 80W PoE Budget
- Inrush current limitation
- Reverse polarity protection
- Galvanic isolation to shield from transients
EN50155, EN50121-4 & EN45545 verification; High reliability and extended working temperature
The T(P)ES-0208T (IP54) is designed to meet with critical network environment with IP54 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Rolling stock EMI and EMC, environmental shock & vibration and fire & smoke test with EN50155/EN50121-4 and EN45545-2 verification. For a greater flexibility in application, the T(P)ES-0208T (IP54) supports an extended operating temperature range from -40°C to 75°C.
E-marking certificate; ISO 16750-2 compliant
The T(P)GS-0208T is compliant with ISO 16750-2 P5A which protects the switch from being damaged by high voltage that could be found at vehicle cranky start. The E-marking certificate makes it the most suitable switch for bus, carriage, trams, and other vehicles application as well as for industrial areas where thepower source is limited with 12V or 24V but has demand of IP surveillance or VoIP applications.
Optional GigaT bypass
The optional bypass relay is set to bypass the switch to the next one when power is off in order to protect the network from crashing. Lantech bypass caters to remain in bypass mode until the switch is completely booting up when power is back to avoid another network lost. (-BT model)
Other features
- Back-plane (Switching Fabric): 5.6 Gbps
- 16K MAC address table
- Din rail** and wall mount design
Download
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Hardware Specifications
|
Ordering Information
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
| 8360-579 | TPES-0208T-8-54-24VI | 8 10/100TX + 2 10/100/1000T M12 IP54 rated EN50155 Unmanaged Ethernet Switch w/8 PoE at/af; -40°C to 75°C; 9~36VDC dual input w/ PoE galvanic isolation |
| 8360-5791 | TPES-0208T-8-54-24TVI | 8 10/100TX + 2 10/100/1000T M12 IP54 rated EN50155 Unmanaged Ethernet Switch w/8 PoE at/af; -40°C to 75°C; 16.8~56VDC dual input w/ PoE galvanic isolation |
| 8360-5792 | TPES-0208T-8-54-WVI | 8 10/100TX + 2 10/100/1000T M12 IP54 rated EN50155 Unmanaged Ethernet Switch w/8 PoE at/af; -40°C to 75°C; 16.8~137.5VDC dual input w/ PoE galvanic isolation |
| 8360-5793 | TES-0208T-54-24VI | 8 10/100TX + 2 10/100/1000T M12 IP54 rated EN50155 Unmanaged Ethernet Switch w/8 PoE at/af; -40°C to 75°C; 9~36VDC dual input w/ galvanic isolation |
| 8360-5794 | TES-0208T-54-24TVI | 8 10/100TX + 2 10/100/1000T M12 IP54 rated EN50155 Unmanaged Ethernet Switch w/8 PoE at/af; -40°C to 75°C; 16.8~56VDC dual input w/ galvanic isolation |
| 8360-5795 | TES-0208T-54-WVI | 8 10/100TX + 2 10/100/1000T M12 IP54 rated EN50155 Unmanaged Ethernet Switch w/8 PoE at/af; -40°C to 75°C; 16.8~137.5VDC dual input w/ galvanic isolation |
OPTIONAL ACCESSORIES - Connector
|
Model name |
Description |
|---|---|
| ECONM12-04A(F)-C-180 | 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
| ECONM12-08X(M)-SPEEDCON | 8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON |
OPTIONAL ACCESSORIES - Cable
|
Model name |
Description |
|---|---|
| ECONM12-4P(F)1.5M CABLE | 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm |
| ECABM12X83MSTP | 8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm |
