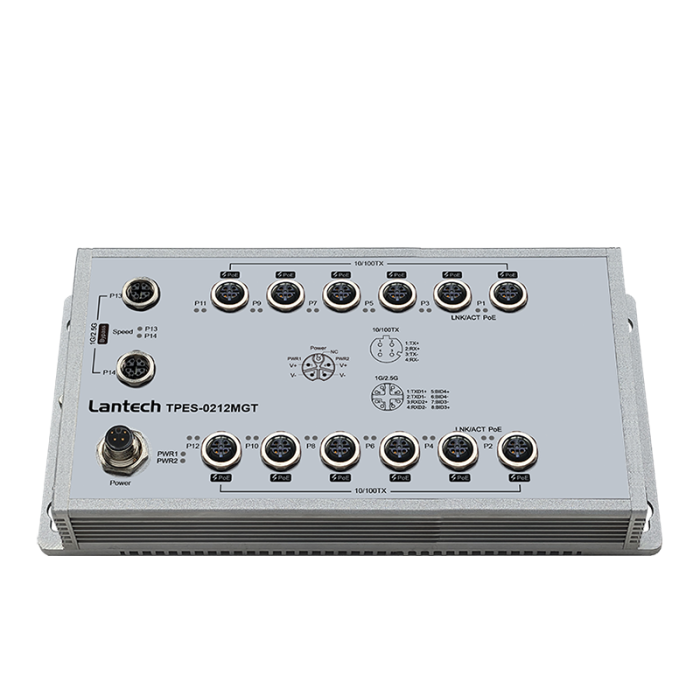

T(P)ES-0212MGT M12 Unmanaged Ethernet Switch
12 FE + 2 2.5G (PoE) M12 Unmanaged Ethernet Switch
Key Features:
- Redundant dual power input with glavanic isolation
- IEEE802.3at/af up to 30W PoE output per port
- PoE budget up to a total of 120W at 24VDC
- Inrush current prevention and polarity reverse protection
- Efficient PoE timer when ignition off (-IGN model)
- IP54 aluminium housing for heat dissipation and moist ingress prevention
Description
The Lantech T(P)ES-0212MGT is a 12 10/100 Base-TX and 2 1G/2.5G Copper with M12-connectors unmanaged Ethernet switch with IP54-rated protection which meets the high-reliability requirements demanded by industrial rolling stock applications.
Rugged Dual 24VI Power Input with 14 PoE Ports
The T(P)ES-0216MGT 24VI model accepts 9~36VDC dual input and 24TVI model accepts 16.8~56VDC with galvanic isolation to PoE and all Ethernet ports. This model also features PoE feeding with 120W budget from internal power. The redundant power input design prevents inrush current and safeguards against polarity reversal.
- Galvanic isolation
- 120W PoE Budget
- Inrush current limitation
- Reverse polarity protection
Verified Durability for Extreme Environments
The T(P)ES-0216MGT is designed to meet with critical network environment with IP54 enclosure and M12 connectors for protection against dust and water. It has passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing for shock and vibration. The E-marking certificate makes it the most suitable switch for bus, carriage, other vehicle applications as well as for industrial areas where the power source is limited with 12V or 24V but has demand of IP surveillance or VoIP applications. It is also labeled with ITxPT public transport standards and also compliant with ISO 7637-2 which protects switch from being damaged by high voltage that could be found at vehicle cranky start. For greater flexibility in application the T(P)ES-0008CB supports an extended operating temperature range of -40°C to 75°C.
- IP54 for protection against dust and water
- Complies with EN 61373:2010 stability testing (Shock and Vibration)
- E-marking certificate for vehicle application
- ITxPT labeled with ignition function
- ISO 7637-2 compliant
- EN50155/50121-3-2/50121-4 and EN45545-2 Fire & Smoke verification
- Extended working temperature (-40°C ~ 75°C)
Efficient PoE timer when ignition off
The T(P)ES-0216MGT ignition model supports efficient PoE configuration when the ignition is off. It supports PoE feeding OFF timer (10mins by default) and system 60mins by default at ignition off mode to prevent car battery drain-out. The ignition model comes with a 60-minute countdown of standby mode to continue network operation and then transitions into sleep mode to avoid the switch rebooting when the ignition is back.
Other Features
- Supports IEEE802.3at/af feeding power up to 30W per PoE port (for PoE model)
- Back-plane (Switching Fabric): 12.4 Gbps
- 8K MAC address table
- Wall mount design
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Hardware Specifications
|
Ordering Information
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
| 8361-041 | TPES-0212MGT-54-24VI-IGN-E | 12 10/100TX PoE at/af + 2 1G/2.5G IP54 rated unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input w/ PoE & Ethernet galvanic isolation; w/ignition |
| 8361-0411 | TES-0212MGT-54-24VI-IGN-E | 12 10/100TX + 2 1G/2.5G IP54 rated unmanaged Ethernet Switch w/M12 connectors; -40°C to 75°C; 9~36VDC dual input w/ Ethernet galvanic isolation; w/ignition |
| 8361-0412 | TPES-0212MGT-54-24VI-IGN | 12 10/100TX PoE at/af + 2 1G/2.5G IP54 rated unmanaged Ethernet Switch w/M12 connectors; -20°C to 60°C; 9~36VDC dual input w/ PoE & Ethernet galvanic isolation; w/ignition |
| 8361-0413 | TES-0212MGT-54-24VI-IGN | 12 10/100TX + 2 1G/2.5G IP54 rated unmanaged Ethernet Switch w/M12 connectors; -20°C to 60°C; 9~36VDC dual input w/ Ethernet galvanic isolation; w/ignition |
| 8361-0414 | TPES-0212MGT-54-24TVI | 12 10/100TX PoE at/af + 2 1G/2.5G IP54 rated EN50155 Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual input w/ PoE & Ethernet galvanic isolation |
| 8361-0415 | TES-0212MGT-54-24TVI | 12 10/100TX + 2 1G/2.5G IP54 rated EN50155 Ethernet Switch w/M12 connectors; -40°C to 75°C; 16.8~56VDC dual input w/ Ethernet |
OPTIONAL ACCESSORIES - Connector
|
Model name |
Description |
|---|---|
| ECONM12-05K(F)-S-180 | 5 pin M12 (Female) K-coded 180 degrees screw type connector for power supply |
| ECONM12-04D(M)-C-180 | 4 pin M12 (Male) D-coded 180 degree crimp type connector for data |
| ECONM12-08X(M)-SPEEDCON | 8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON |
OPTIONAL ACCESSORIES - Cable
|
Model name |
Description |
|---|---|
| ECABM12-05K(F)-90-1.5M | 5 pin M12 (Female) K-coded 90 degrees 1.5M cable for power supply |
| ECAB124030MJS | 4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm |
| ECABM12X83MSTP | 8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm |
| ECONM12-05K(F) to MCP 6P-20CM CABLE | 5 pin M12 (Female) K-coded 180 degree to 6 pin MCP power cable, 20cm (For ignition models) |
