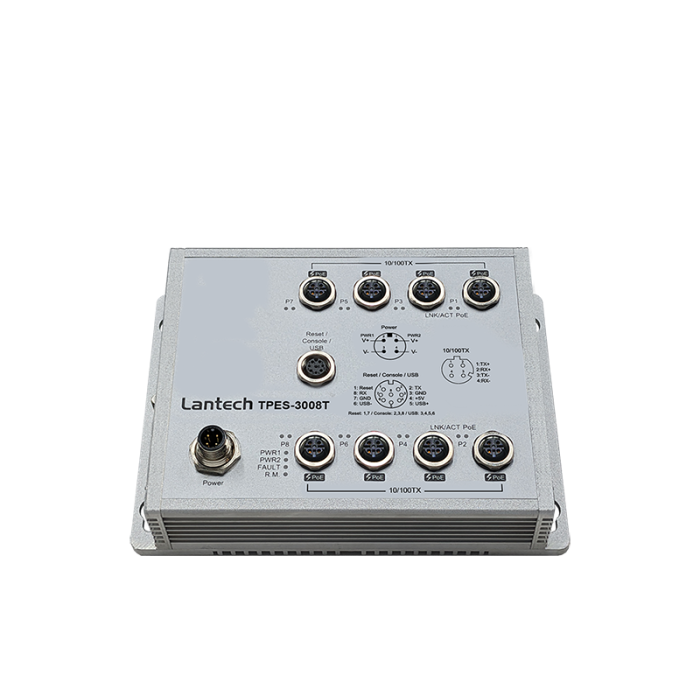

T(P)ES-3008T Vehicle Managed Router Switch

The Lantech T(P)ES-3008T (OS2 Pro platform) is available for basic and standard variants. It’s a compact router switch designed for rail, metro and vehicle 24V input Ethernet switch systems. It features 8 10/100TX ports w/M12 X-coded (Push-Pull** lock connectors IEC 61076-2010), along with 8 PoE 802.3af/at Ethernet ports (PoE model). The switch offers Layer 2 management, NAT, Ignition PoE timer off***, unique AUTO-FEED configuration, MQTT, advanced security functions and Health diagnostic snapshot maintenance to ensure reliable and easy onboard network deployment. It’s WebGUI and complete CLI interface*** make configuration straightforward for all skill levels. Additionally, the OPEN API document format enhances central management efficiency, making it ideal for fleet management and AIoT applications. Compliance with EN50155, ITxPT*, and E-marking certifications rest assured the product meets world-class standards for vehicle, rail onboard performance and reliability.

Rugged Design with Dual Power Inputs and Enhanced Protection

The T(P)ES-3008T is designed with dual redundant power inputs supporting both 9-36VDC (24VI) and 16.8-56VDC (24TVI), providing flexibility for vehicle and rail power architectures. It complies with ISO 16750-2 and includes features such as:

• High ESD protection
• Inrush current limitation
• Reverse polarity protection
• Galvanic isolation to shield from transients

Intelligent PoE with Scheduling and Auto-Recovery

With a PoE budget of up to 80W, this switch supports intelligent PoE management, including:

• PD detection and auto-reboot
• Scheduling based on user-defined timetables
• Per-port power monitoring (voltage, current, power, temp.)
• Galvanic isolation on both PoE and Ethernet for added safety

The IGN model offers a programmable PoE ignition timer for remote port power control (30s to 60min), eliminating the need for external relay wiring. It also supports the ITxPT Xstatus protocol for real-time switch status reporting.

Cybersecurity and IEC 62443 Compliance*
To safeguard onboard networks, the T(P)ES-3008T incorporates:

• DDoS prevention
• 802.1X authentication
• Dynamic ARP Inspection, IP Source Guard, and Port Security

The optional IEC 62443-4-2*** cybersecurity package includes over 90 protections, such as vulnerability assessments, encryption, root of trust, secure boot, and tamper detection.

Advanced Network Management with OS2 Pro Platform

Built on the Lantech OS2 Pro platform, the switch supports:

• Layer 2+ features: VLAN, IGMP, DHCP options, NAT, Port Forwarding, LACP
• Layer 3 routing: OSPF, RIP v1/v2
• Ring protection: G.8032/RSTP
• JSON-based Open API for efficient device control without heavy CPU load

Versatile Features for Maintenance & Deployment

• Auto-FEED Configuration: Instantly applies saved configurations to replacement switches
• USB Port: Backup/restore configurations and firmware updates
• Snapshot Feature: Gathers diagnostic data for root cause analysis
• eMMC Storage: Improves power efficiency and reliability
• CPU Watchdog: Automatic recovery from software hangs

Optional features include:

• Enhanced environmental monitoring* (voltage, current, temperature, etc.)
• LantechView software** for centralised management of Lantech devices
• Bypass Relay (-BT model) for 24TVI models to ensure network continuity during power loss

Multicast Support and IoT Integration

• mDNS for easy device discovery in LAN environments
• MQTT roles (Broker/Publisher) for lightweight messaging in IoT applications

Model Comparison – OS2 Pro Basic vs. Standard

*Future release
**Optional
***not for Basic model
