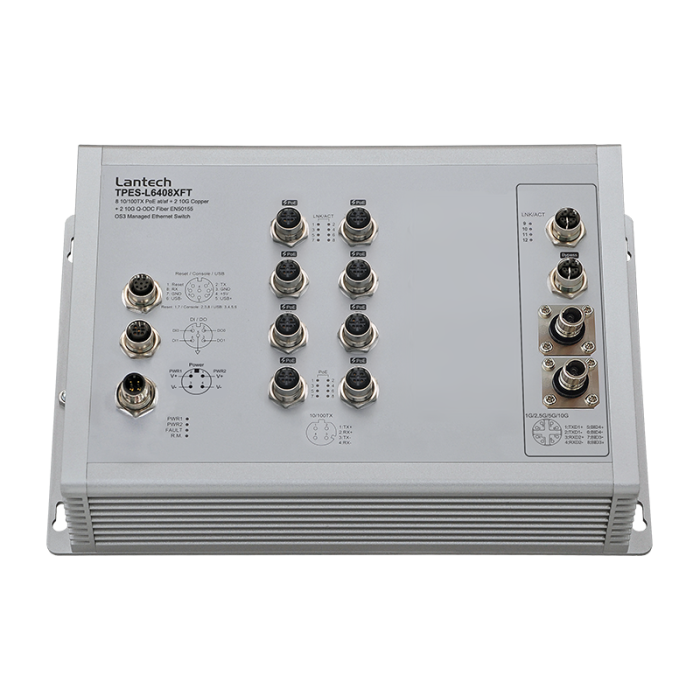

T(P)ES-L6408XFT OS3 Managed Ethernet Switch

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3ak 10Gbase-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 81.6Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100TX: 8 x M12 4-pole D-coded with Auto MDI/MDI-X function
1G/2.5G/5G/10G Copper: 2x M12 8-pole X-coded
1G/10G FX: 2x ports Q-ODC OM3 with multi-mode/single-mode fiber
Power Input connector: 1 x M12 4-pole Male A-coded
Reset/Console/USB : 1 x M12 8-pole A-coded
DIDO: 1 x M12 5-pole A-coded

Network Cable

10Base-T: 4-pair STP Cat3 cable
100Base-TX: 4-pair STP Cat3/5 cable
1000Base-T: 4-pair STP Cat5/5e cable;
2.5G Copper: 4-pair STP Cat5e cable
10G Copper: 4-pair STP Cat6/6A cable

1G/10G fiber:
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm); Single-mode: 0 to 2 km, 1310 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
10/100TX Ethernet port: Link/Activity (Green)
1G/2.5G/5G/10G port: speed (1G/2.5G/5G: Yellow; 10G: Orange)
1G/10G fiber: Link/Act (Orange)
PoE: Link/Act (Green) (PoE model)

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 80 VDC, 50mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C ~ 70°C / -40°F ~ 158°F (85°C operation for 10min.)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Dual DC input
16.8~137.5VDC (WVI model) ;
9~36VDC (24V model) ;
16.8~56VDC (24TVI model)
(PoE galvanic isolation for PoE models; Ethernet galvanic isolation for all models

PoE Budget (PoE model)

80W@24VDC
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

M12 port #1~#8 (-8 model) ; #9~#10 (-10 model) ; support IEEE 802.3at/af End-point ; Alternative A mode

Power Consumption

max. 37.8W exclude PoE load

Case Dimension

IP54/IP67 model: Aluminum case
304mm(W)x195mm(H)x96.2mm(D)

Weight

3.45kgs

Installation

Wall Mount Design

EMI & EMS

FCC Part 15 Class A,
IEC/EN61000-6-2
CE EN55032 Class A
CE EN55024
CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3
BS EN61000-4-2, BS EN61000-4-3,
BS EN61000-4-4, BS EN61000-4-5,
BS EN61000-4-6, BS EN61000-4-8,
BS EN55032, BS EN55024

Verifications

EN50155/EN50121-3-2/EN50121-4;
EN45545-1, EN 45545-2 Fire & Smoke verification

Stability Testing

EN61373 (Shock and Vibration)

Vehicle Certificate

E13 marking (UN ECE R10) (24V model)

MTBF

TBC (standards: IEC 62380)

Warranty

5 years

Bypass***

One pair bypass module on 10GT ports to pass to next switch in case of power failure and CPU fail
