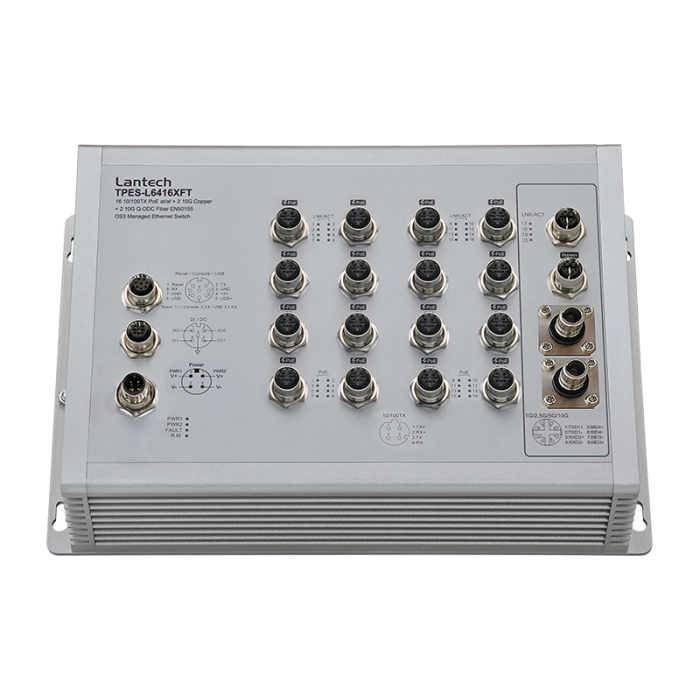

T(P)ES-L6416XFT OS3 Managed Ethernet Switch

SKU: T(P)ES-L6416XFT

16 10/100TX + 2 10G Copper + 2 10G Fiber Q-ODC OM3 (with 8/10/16 PoE) EN50155 OS3 Managed Ethernet Switch

Key Features:

  • Redundant dual power input design
  • Miss-wiring avoidance, node failure protection, Loop protection
  • EN50155 verification with high ESD and inrush current prevention and polarity reverse protection
  • Able to feed up to 30W for each port, with PD detection, auto PD reboot, scheduling and galvanic isolation
  • DDoS security to protect switch and server
  • Optional smart bypass protection on dual 10G copper ports
Datasheet

Description

The Lantech T(P)ES-L6416XFT is a high performance OS3 Ethernet switch with 16 10/100TX + 2 1G/2.5G/5G/10G Copper r + 2 1G/10G Fiber Q-ODC OM3. PoE model has 8/16 or w/10 PoE (incl.8 10/100TX + 2 uplink 10GT copper) 802.3af/at ports which provides advanced security function for network aggregation deployment.

Rugged Design with Dual Power Inputs and Enhanced Protection

The T(P)ES-L6416XFT is designed with dual redundant power inputs supporting 16.8~137.5VDC (WVI), 9~36VDC (24V) and 16.8~56VDC (24TVI), providing flexibility for vehicle and rail power architectures. It complies with EN50155, EN455545-2, EN61373 and includes features such as:

  • High ESD protection
  • Inrush current limitation
  • Galvanic isolation to shield from transients
  • Miss-wiring avoidance
  • Node failure protection
  • Loop protection

Intelligent PoE with PD detection and Scheduling

With a PoE budget of up to 80W, this switch supports intelligent PoE management, including:

  • PD detection and auto-reboot
  • Scheduling based on user-defined timetables
  • Per-port power monitoring (voltage, current, power, temp.)
  • Galvanic isolation on both PoE and Ethernet for added safety

Cybersecurity and IEC 62443-4-1 Certification
To safeguard onboard networks, the T(P)ES-L6416XFT incorporates:

  • DDoS prevention
  • 802.1X authentication
  • Dynamic ARP Inspection, IP Source Guard, and Port Security

Advanced Network Management with OS3 Platform

Built on the Lantech OS3 platform, the switch supports:

  • Layer 3 features: VLAN, IGMP, DHCP options, NAT, Port Forwarding, LACP
  • Layer 3 routing: OSPF, RIP v1/v2
  • Ring protection: G.8032/RSTP
  • JSON-based Open API for efficient device control without heavy CPU load

Read more about the OS3 platform here: https://www.lantechcom.tw/global/eng/download/datasheet/D-OS3_OS4.pdf

Versatile Features for Maintenance & Deployment

  • Auto-FEED Configuration: Instantly applies saved configurations to replacement switches
  • USB Port: Backup/restore configurations and firmware updates
  • Snapshot Feature: Gathers diagnostic data for root cause analysis
  • Enhanced environmental monitoring (voltage, current, temperature, etc.)
  • Bypass Relay (-BT model) for 24TVI models to ensure network continuity during power loss

Download

Datasheet
Hardware Manual

More Information

Brand Lantech
Specifications

 Hardware Specifications

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3ak 10Gbase-T
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE802.3ad Link Aggregation Control Protocol (LACP)
IEEE802.1AB Link Layer Discovery Protocol (LLDP)
IEEE802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 83.2Gbps

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100TX: 16 x M12 4-pole D-coded with Auto MDI/MDI-X function
1G/2.5G/5G/10G Copper: 2x M12 8-pole X-coded
1G/10G FX: 2x ports Q-ODC OM3 with multi-mode/single-mode fiber
Power Input connector: 1 x M12 4-pole Male A-coded
Reset/Console/USB : 1 x M12 8-pole A-coded
DIDO: 1 x M12 5-pole A-coded

Network Cable

10Base-T: 4-pair STP Cat3 cable
100Base-TX: 4-pair STP Cat3/5 cable
1000Base-T: 4-pair STP Cat5/5e cable;
2.5G Copper: 4-pair STP Cat5e cable
10G Copper: 4-pair STP Cat6/6A cable

1G/10G fiber:
Multi-mode: 0 to 300 m, 850 nm (OM3 50/125 μm); Single-mode: 0 to 2 km, 1310 nm (9/125 μm)

LED

Per unit: Power 1 (Green), Power 2 (Green), FAULT (Red); RM(Green)
10/100TX Ethernet port: Link/Activity (Green)
1G/2.5G/5G/10G port: speed (1G/2.5G/5G: Yellow; 10G: Orange)
1G/10G fiber: Link/Act (Orange)
PoE: Link/Act (Green) (PoE model)

DI/DO

2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 80 VDC, 50mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C ~ 70°C / -40°F ~ 158°F (85°C operation for 10min.)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Dual DC input
16.8~137.5VDC (WVI model) ;
9~36VDC (24V model) ;
16.8~56VDC (24TVI model)
(PoE galvanic isolation for PoE models; Ethernet galvanic isolation for all models

PoE Budget (PoE model)

80W@24VDC
Higher PoE budget can be applied upon request. **

PoE pin assignment (PoE model)

M12 port #1~#8/16 (-8/-16 model) ; #17~#18 (-10 model) ; support IEEE 802.3at/af End-point ; Alternative A mode

Power Consumption

max. 40.6W exclude PoE load

Case Dimension

IP54/IP67 model: Aluminum case
304mm(W)x195mm(H)x96.2mm(D)

Weight

3.45kgs

Installation

Wall Mount Design

EMI & EMS

FCC Part 15 Class A,
IEC/EN61000-6-2
CE EN55032 Class A
CE EN55024
CE EN61000-4-2 (ESD) Level 3
CE EN61000-4-3 (RS) Level 3
CE EN61000-4-4 (EFT) Level 3
CE EN61000-4-5 ED3 (Surge) Level 3
CE EN61000-4-6 (CS) Level 3
CE EN61000-4-8 (Magnetic field) Level 3
BS EN61000-4-2, BS EN61000-4-3,
BS EN61000-4-4, BS EN61000-4-5,
BS EN61000-4-6, BS EN61000-4-8,
BS EN55032, BS EN55024

Verifications

EN50155/EN50121-3-2/EN50121-4;
EN45545-1, EN 45545-2 Fire & Smoke verification

Stability Testing

EN61373 (Shock and Vibration)

Vehicle Certificate

E13 marking (UN ECE R10) (24V model)

MTBF

TBC (standards: IEC 62380)

Warranty

5 years

Bypass***

One pair bypass module on 10GT ports to pass to next switch in case of power failure and CPU fail

Ordering Information

P/N

Model name

Description
8361-62604 TPES-L6416XFT-8-QMM-54-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62614 TPES-L6416XFT-8-QSM-54-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62624 TPES-L6416XFT-10-QMM-54-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62634 TPES-L6416XFT-10-QSM-54-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62644 TPES-L6416XFT-16-QMM-54-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62654 TPES-L6416XFT-16-QSM-54-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62664 TES-L6416XFT-QMM-54-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-62674 TES-L6416XFT-QSM-54-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-62607 TPES-L6416XFT-8-QMM-54-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62617 TPES-L6416XFT-8-QSM-54-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62627 TPES-L6416XFT-10-QMM-54-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62637 TPES-L6416XFT-10-QSM-54-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62647 TPES-L6416XFT-16-QMM-54-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62657 TPES-L6416XFT-16-QSM-54-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-62667 TES-L6416XFT-QMM-54-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-62677 TES-L6416XFT-QSM-54-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-626 TPES-L6416XFT-8-QMM-54-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-6261 TPES-L6416XFT-8-QSM-54-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-6262 TPES-L6416XFT-10-QMM-54-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-6263 TPES-L6416XFT-10-QSM-54-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-6264 TPES-L6416XFT-16-QMM-54-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-6265 TPES-L6416XFT-16-QSM-54-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ PoE galvanic isolation
8361-6266 TES-L6416XFT-QMM-54-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-6267 TES-L6416XFT-QSM-54-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP54 housing w/ galvanic isolation
8361-62605 TPES-L6416XFT-8-QMM-67-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62615 TPES-L6416XFT-8-QSM-67-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62625 TPES-L6416XFT-10-QMM-67-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62635 TPES-L6416XFT-10-QSM-67-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62645 TPES-L6416XFT-16-QMM-67-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62655 TPES-L6416XFT-16-QSM-67-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62665 TES-L6416XFT-QMM-67-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-62675 TES-L6416XFT-QSM-67-24V

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 9~36VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-62608 TPES-L6416XFT-8-QMM-67-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62618 TPES-L6416XFT-8-QSM-67-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62628 TPES-L6416XFT-10-QMM-67-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62638 TPES-L6416XFT-10-QSM-67-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62648 TPES-L6416XFT-16-QMM-67-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62658 TPES-L6416XFT-16-QSM-67-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62668 TES-L6416XFT-QMM-67-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-62678 TES-L6416XFT-QSM-67-24TVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~56VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-62606 TPES-L6416XFT-8-QMM-67-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62616 TPES-L6416XFT-8-QSM-67-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/8 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62626 TPES-L6416XFT-10-QMM-67-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62636 TPES-L6416XFT-10-QSM-67-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/10 PoE 802.3at/af incl. 2 10GT EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62646 TPES-L6416XFT-16-QMM-67-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62656 TPES-L6416XFT-16-QSM-67-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM w/16 PoE 802.3at/af EN50155 OS3 PoE Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ PoE galvanic isolation
8361-62666 TES-L6416XFT-QMM-67-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber multi-mode Q-ODC OM3 300M EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation
8361-62676 TES-L6416XFT-QSM-67-WVI

16 10/100TX + 2 1G/2.5G/5G/10G Copper M12 X-coded + 2 1G/10G Fiber single-mode Q-ODC 2KM EN50155 OS3 Managed Ethernet Switch; 16.8~137.5VDC dual input; -40~70C/-40~158F; IP67 housing w/ galvanic isolation

OPTIONAL ACCESSORIES - Connector

Model name

Description

ECONM12-04A(F)-C-180

4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply

ECONM12-08A(M)-180

8 pin M12 (Male) A-coded 180 degree crimp type connector for reset/console/USB

ECONM12-05A(M)-C-180

5 pin M12 (Male) A-coded 180 degree crimp type connector for DI/DO

ECONM12-08X(M)-SPEEDCON

8 pin M12 (Male) X-coded 180 degree crimp type connector for data, Ethernet CAT6A (10G), shielded, SPEEDCON

ECONM12-04D(M)-C-180

4 pin M12 (Male) D-coded 180 degree crimp type connector for data

OPTIONAL ACCESSORIES - Cable

Model name

Description

ECONM12-4P(F)1.5M CABLE

 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm

ECONM12-08M2-CONSOLE

8 pin M12 (Male) A-coded 180 degree to RS232 cable for console, 150cm

ECABM12X83MSTP

8 pin M12 (Male) X-coded 180 degree RJ45 STP cable for data, shielded, 300cm

ECAB124030MJS

4 pin M12 (Male) D-coded 180 degree RJ45 STP cable for data, 300cm

ECABMO02-QOP2-3.0-MM-OM3

Q-ODC 2 plug/LC multi-mode fiber, MM-OM3, 300cm

ECABMO02-QOP2-3.0-SM-OS2

Q-ODC 2 plug/LC single-mode fiber, SM-OS2, 300cm

OPTIONAL ACCESSORIES - Others

Model name

Description

M12 to USB interface adapter

8 pin M12 (Male) A-coded 180 degree M12 to USB 2.0 interface adapter, 8cm

USB 2.0 Ethernet Adapter

USB 2.0 to RJ45 Ethernet Adapter

ECONM12-08(M) TO DB9+USB2.0-1.5M CABLE

8 pin M12 (Male) A-coded 180 degree M12 to USB2.0 to DB9 (Female) cable, 150cm
Builder Banner

Need something specific?

We build to order.

We can customise any solutions according to your specifications. Click below to learn more
and contact us.

Learn more Speak to a specialist

Product

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Sign In
