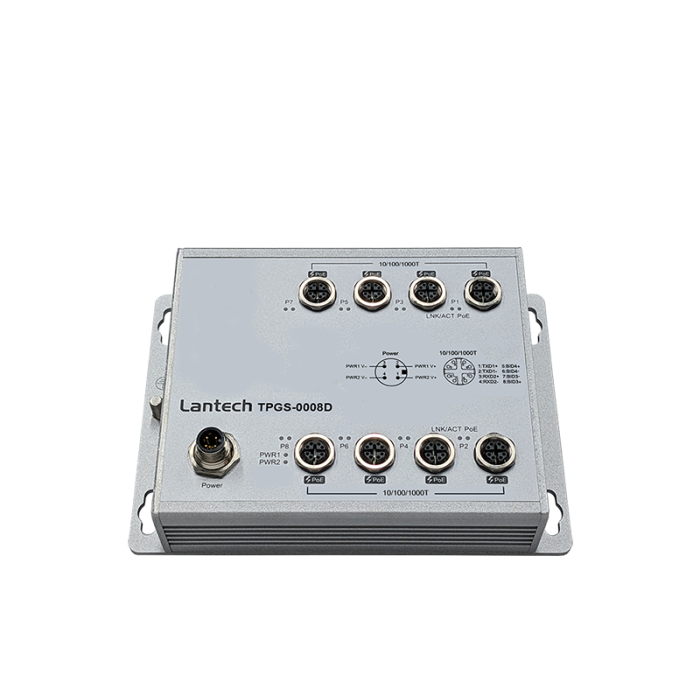

T(P)GS-0008D Unmanaged Ethernet Switch
8 GE (PoE at/af) 10/100/1000 Base-T Unmanaged Ethernet Switch
Key Features:
- Redundant dual power input design
- IEEE802.3at/af up to 30W PoE output per port
- PoE budget up to 80W for 8 Ports with galvanic isolation
- Inrush current prevention and polarity reverse protection
- Efficient PoE timer when ignition off (-IGN model)
- IP67/54 aluminium housing for heat dissipation and moist ingress prevention
Description
The Lantech T(P)GS-0008D is an 8 10/100/1000 Base-T (with 8 ports 802.3at/af PoE ports- PoE model) with M12-connectors unmanaged Ethernet switch with IP67/IP54 rated protection which meets the high-reliability requirements demanded by industrial rolling stock applications.
Rugged Dual 24VI Power Input with 8 PoE Ports
The TGS-0008D 24VI model accepts 9~36VDC dual power inputs (24VI model) with PoE and can feed 54V output for PoE feeding with an 80W budget.
The redundant power input design prevents inrush current and safeguards against polarity reversal.
- 80W PoE Budget
- Inrush current limitation
- Reverse polarity protection
Up to 8 PoE at/af Ports and PoE Galvanic Isolation
The TPES-0008D has compliance with 802.3af/at standard and the PoE model is able to feed each PoE port up to 30 Watt at each PoE port for various IP PD devices. It also has PoE galvanic isolation up to 1.5KVDC to provide power input to PoE Ethernet ports whilst the insulation prevents cabling and grounding incidents from damaging the Ethernet switch itself.
Efficient PoE timer when ignition off
The TPGS-0008D ignition model supports efficient PoE configuration when the ignition is off. It supports PoE feeding OFF timer (10mins by default) and system 60mins by default at ignition off mode to prevent car battery drain-out. The TGS-0008D ignition model comes with a 60-minute countdown of standby mode to continue network operation and then transitions into sleep mode to avoid the switch rebooting when the ignition is back.
Other Features
- IP67/IP54 rated protection
- Back-plane (Switching Fabric): 16 Gbps
- 16K MAC address table
- Wide Operating Temperature (-40°C ~70°C) available
- Wall mount design
Download
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Hardware Specifications
|
Ordering Information
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
| 8351-15701 | TPGS-0008D-67-24VI-E | 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP67 rated |
| 8351-15702 | TPGS-0008D-67-24VI | 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -20°C to 60°C; IP67 rated |
| 8351-15703 | TPGS-0008D-67-24VI-IGN-E | 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP67 rated w/ignition |
| 8351-15704 | TPGS-0008D-67-24VI-IGN | 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -20°C to 60°C; IP67 rated w/ignition |
| 8351-157 | TGS-0008D-67-24VI-E | 8 10/100/1000T Unmanaged Ethernet Switch w/ Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP67 rated |
| 8351-1571 | TGS-0008D-67-24VI | 8 10/100/1000T Unmanaged Ethernet Switch w/ Ethernet galvanic isolation; 9~36VDC dual input; -20°C to 60°C; IP67 rated |
| 8351-15711 | TGS-0008D-67-24VI-IGN-E | 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP67 rated w/ignition |
| 8351-15712 | TGS-0008D-67-24VI-IGN | 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 9~36VDC dual input; -20°C to 60°C; IP67 rated w/ignition |
| 8351-15701 | TPGS-0008D-54-24VI-E | 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP54 rated |
| 8351-15702 | TPGS-0008D-54-24VI | 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -20°C to 60°C; IP54 rated |
| 8351-15703 | TPGS-0008D-54-24VI-IGN-E | 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP54 rated w/ignition |
| 8351-15704 | TPGS-0008D-54-24VI-IGN | 8 10/100/1000T PoE Unmanaged Ethernet Switch w/PoE & Ethernet galvanic isolation; 9~36VDC dual input; -20°C to 60°C; IP54 rated w/ignition |
| 8351-157 | TGS-0008D-54-24VI-E | 8 10/100/1000T Unmanaged Ethernet Switch w/ Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP54 rated |
| 8351-1571 | TGS-0008D-54-24VI | 8 10/100/1000T Unmanaged Ethernet Switch w/ Ethernet galvanic isolation; 9~36VDC dual input; -20°C to 60°C; IP54 rated |
| 8351-15725 | TGS-0008D-54-24VI-IGN-E | 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 9~36VDC dual input; -40°C to 70°C; IP54 rated w/ignition |
| 8351-15726 | TGS-0008D-54-24VI-IGN | 8 10/100/1000T Unmanaged Ethernet Switch w/Ethernet galvanic isolation; 9~36VDC dual input; -20°C to 60°C; IP54 rated w/ignition |
OPTIONAL ACCESSORIES - Connector
|
Model name |
Description |
|---|---|
| ECONM12-04A(F)-C-180 | 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
OPTIONAL ACCESSORIES - Cable
|
Model name |
Description |
|---|---|
| ECONM12-4P(F)1.5M CABLE | 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm |
