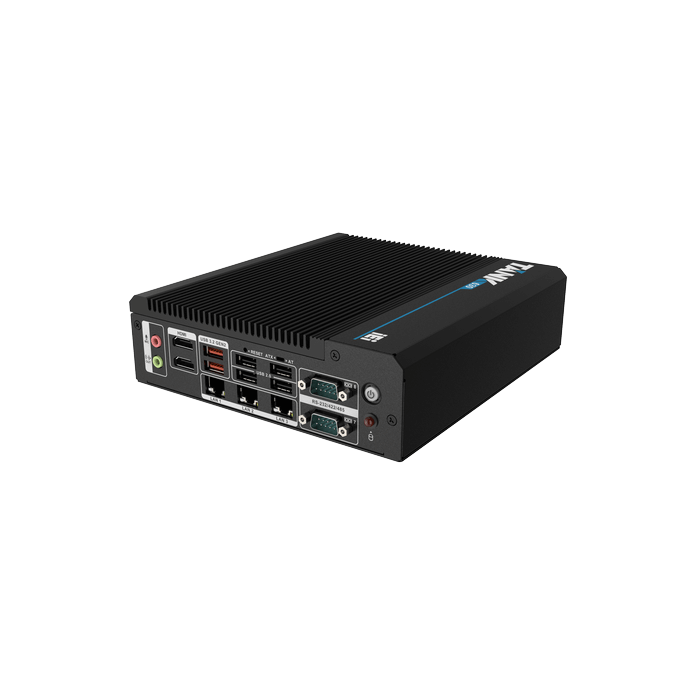

TANK-630-EHL Fanless Celeron Embedded System
Fanless Embedded System with Intel Celeron J6412 processor
Key Features:
- Fanless system with Intel® Celeron® J6412 processor
- Multiple COM ports: six RS-232 and two RS-232/422/485
- 2 x HDMI dual independent display
- M.2 and one 2.5” SATA storage device
- CE/FCC compliant
Description
The TANK-630-EHL is a rugged, fanless embedded system designed for industrial and harsh environments. Powered by the Intel® Celeron® J6412 quad-core processor (2.0 GHz, up to 2.6 GHz, with a low TDP of 10W), it is energy-efficient while delivering solid performance. This system supports up to 32GB of DDR4 memory and includes 8GB pre-installed, making it versatile for various applications.
Key features include:
- I/O Versatility: Offers multiple connectivity options, including 6 RS-232 and 2 RS-232/422/485 COM ports, 2 HDMI outputs supporting dual independent displays, 3 2.5GbE LAN ports, 2 USB 3.2 Gen2, and 4 USB 2.0 ports.
- Expandable Storage and Wireless Support: This unit accommodates one 2.5” SATA storage drive and multiple M.2 slots (A-key, B-key, M-key) for storage or wireless module integration.
- Durable and Compact Design: Constructed with extruded aluminium for durability, it supports VESA and wall mounting. The system operates from -10°C to 50°C with proper airflow and meets CE, FCC, and UKCA compliance standards.
- Fanless Operation: Ensures silent and reliable performance, making it suitable for applications like factory automation, IoT, and edge computing.
The TANK-630-EHL is also compatible with Windows 10/11 and Linux operating systems.
Download
More Information
| Brand | IEI Integration Corp. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Hardware Spec.
Package Contents
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
|
TANK-630-EHL-JC-R10 |
Fanless embedded system with Intel® Celeron® J6412 2.0GHz,(up to 2.6GHz, 4-Core, TDP 10W), 8GB DDR4 pre-installed memory, 10V~28V DC, 6xRS232, 2xRS-232/422/485, 2xUSB 3.2, 4xUSB2.0, 2xHDMI, 3x2.5GbE Lan, RoHS |
|---|
