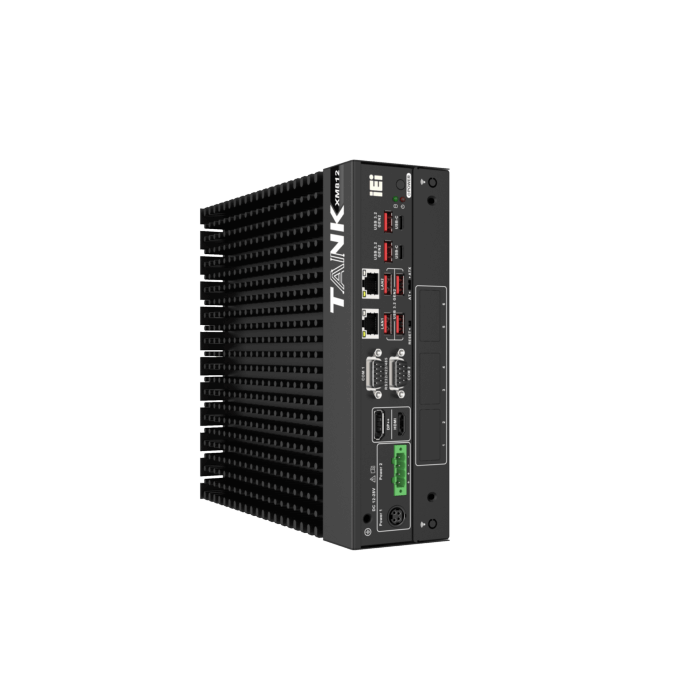

TANK-XM812 Fanless Embedded Computer with AMD Ryzen
High-Performance AMD Ryzen™ 7000/8000 Series AM5 Processor, Fanless Embedded Computer
Key Features:
- AMD Ryzen™ 7000/8000 Series AM5 Processor
- 2 x 2.5GbE ports
- Multiple USB ports and serial ports
- Multiple internal expansion boards for flexible selection
- Various optional backplanes and chassis
- CE/FCC compliant
Description
Product Overview
The IEI TANK-XM812 is a rugged, fanless embedded computer designed for industrial edge, automation, surveillance, AI inference and IoT applications. It is powered by AMD Ryzen 5 processors from the 7000/8000 series, providing strong multi-core performance for demanding workloads in compact, harsh environments. The system comes with pre-installed DDR5 memory and offers flexible expansion and rich I/O options, making it suitable for machine automation, data acquisition, smart infrastructure and embedded computing solutions where durability and continuous uptime are critical.
Key Features
High Performance Computing
-
AMD Ryzen 5 series processor with multiple cores and high clock capability
-
Efficient DDR5 system memory for responsive tasks and multitasking
-
Fanless architecture for long-term reliability in dust-prone or enclosed environments
-
Designed to handle automation, vision, edge AI, analytics and real-time processing
Rugged, Industrial Design
-
Fanless passively cooled chassis for silent and maintenance-free operation
-
Built for industrial usage with wide operating temperature support and vibration resilience
-
Compact and durable enclosure suitable for machines, cabinets or wall installation
-
Wide power input range to support industrial and mobile power systems
Flexible Connectivity and Expansion
-
Multiple high-speed USB ports for peripherals, cameras, sensors and storage
-
Gigabit Ethernet for reliable wired network connectivity
-
PCIe expansion slots allowing custom add-on cards and I/O modules
-
HDMI and DisplayPort outputs for local displays and operator interfaces
Storage and Memory Support
-
Expandable storage via NVMe and SATA options for fast data access and logging
-
Support for additional memory expansion, depending on configuration
-
Expandable to help accommodate larger datasets, applications and workloads
Industrial and Application Ready
-
Suitable for in-field industrial control, machine vision, smart kiosks, surveillance and edge data processing
-
Designed to run operating systems such as Windows or Linux for broad software compatibility
-
Enables deployment in industrial floors, automation lines, rugged equipment environments, and other harsh or remote locations
Dimensions Drawings
Download
More Information
| Brand | IEI Integration Corp. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
|
TANK-XM812-87AC-R10 |
Ruggedised Fanless embedded system with AMD Ryzen™ 5 8700G, (up to 5.1 GHz, 8 Core, TDP 65W), 8GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12~28V DC, RoHS |
|---|---|
|
TANK-XM812-85AC-R10 |
Ruggedised Fanless embedded system with AMD Ryzen™ 5 8600G, (up to 5.0 GHz, 6 Core, TDP 65W), 8GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12~28V DC, RoHS |
