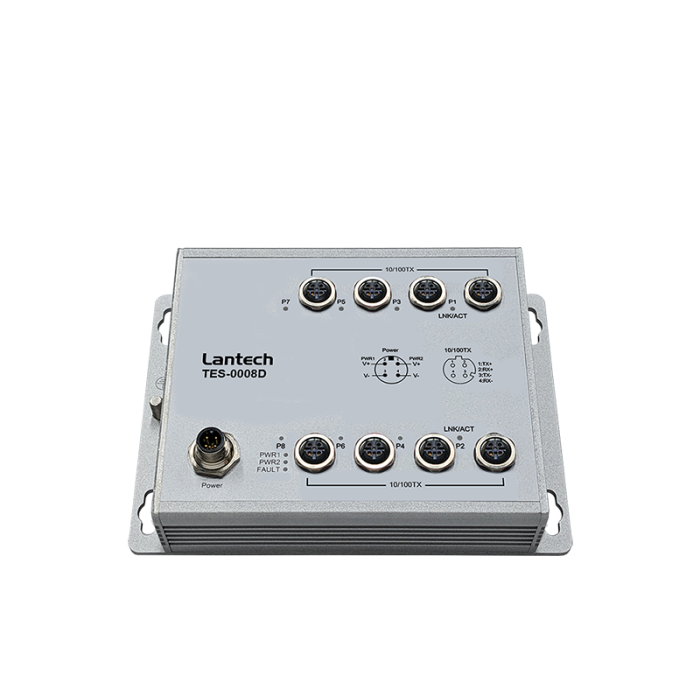

TES-0008D M12 Unmanaged Ethernet Switch
8 FE 10/100TX M12 Unmanaged Ethernet Switch
Key Features:
- Redundant dual power input design
- Galvanic isolation between power input and ethernet power system
- Inrush current prevention and polarity reverse protection
- Ignition off and sleep mode, labeled with ITxPT
- E-marking certificate and ISO 7637-2 compliance
- IP54 aluminium housing for heat dissipation and moist ingress prevention
Description
The Lantech TES-0008D is a compact 8 10/100TX unmanaged Ethernet switch with M12 connectors with IP54-rated protection which meets the high-reliability requirements demanded by industrial rolling stock applications. It is designed for Ethernet switch systems in rail, metro, vehicle, or hardened industrial applications with a 24V input.
Rugged Design with Dual Power Inputs and Enhanced Protection
The switch is designed with dual power inputs and is capable of withstanding EMI/RFI interference in the onboard or industrial harden network. The redundant power input design integrates inrush current protection also protects against polarity reversal. Additionally, the galvanic isolation feature shields the system from power transients often present in onboard and outdoor networks. It also meets the requirements of ISO 16750-2 P5A, reducing the impact of high-frequency pulse voltage that could be incurred by motor applications. The switch can be used in extreme environments with an operating temperature range of -40°C to 70°C. The E-marking certificate makes it the most suitable for bus, carriage, and other vehicle applications.
- E-marking certificate
- ISO 7637-2 and ISO 16750-2 P5A compliant
- Inrush current limitation
- Reverse polarity protection
- Extended operating temperature (-40°C ~ 70°C)
Ignition Off and Sleep Modes with Optional ITxPT** labeling
The TES-0008D Ignition model comes with a 60-minute countdown of standby mode to continue network operation and then transitions into sleep mode to avoid the switch rebooting when ignition is back. The ignition model is labeled with ITxPT public transport standards.
Other Features
- IP54 rated protection
- Back-plane (Switching Fabric): 1.6 Gbps
- 2K MAC address table
- Wall mount design
Download
More Information
| Brand | Lantech | ||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Hardware Specifications
|
Ordering Information
ORDERING INFORMATION
|
P/N |
Model name |
Description |
|---|---|---|
8351-154 |
TES-0008D-54-24VI-E | 8 10/100TX IP54 rated unmanaged Ethernet Switch w/M12 connectors w/Ethernet galvanic isolation; 9~36VDC dual power inputs; -40°C to 70°C |
| 8351-1541 |
TES-0008D-54-24VI | 8 10/100TX IP54 rated unmanaged Ethernet Switch w/M12 connectors w/Ethernet galvanic isolation; 9~36VDC dual power inputs; -20°C to 60°C |
| 8351-1542 |
TES-0008D-54-24VI-IGN-E | 8 10/100TX IP54 rated unmanaged Ethernet Switch w/M12 connectors w/Ethernet galvanic isolation; 9~36VDC dual power inputs; -40°C to 70°C w/ignition |
| 8351-1543 |
TES-0008D-54-24VI-IGN | 8 10/100TX IP54 rated unmanaged Ethernet Switch w/M12 connectors w/Ethernet galvanic isolation; 9~36VDC dual power inputs; -20°C to 60°C w/ignition |
OPTIONAL ACCESSORIES - Connector
|
Model name |
Description |
|---|---|
| ECONM12-04A(F)-C-180 | 4 pin M12 (Female) A-coded 180 degree crimp type connector for power supply |
OPTIONAL ACCESSORIES - Cable
|
Model name |
Description |
|---|---|
| ECONM12-4P(F)1.5M CABLE | 4 pin M12 (Female) A-coded 90 degree cable for power supply, 150cm |
