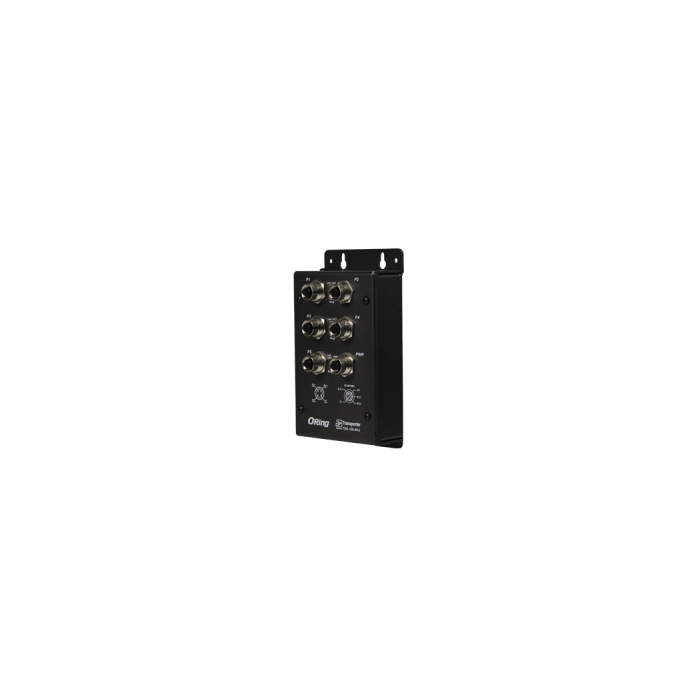

TES-150-M12 - 5 port unmanaged switch
TES-150-M12 - 5 port unmanaged switch
EN50155 5-port unmanaged Ethernet switch with 5x10/100Base-T(X), M12 connector
Description
- Leading EN50155-compliant Ethernet switch for rolling stock applications
- Supports 5 ports 10/100 Base-T(X)
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store-and-forward transmission
- Supports flow control
- Ultra-rugged enclosure with M12 connectors for toughest industrial usages
- Wall mounting enabled
More Information
|
Specifications |
| Physical Ports |
|
| 10/100 Base-T(X) Ports in M12 Auto MDI/MDIX |
5 x M12 connector (D-coding) |
| Technology |
|
|
Ethernet Standards
|
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
|
|
Processing
|
Store-and-Forward
|
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 1 |
|
10/100Base-T(X) RJ45 Port Indicator
|
Green for port Link/Act.
Amber for duplex indicator
|
| Power |
|
| Power Input |
12 ~ 48 VDC voltage power input in M12 connector (A-coding)
|
| Power Consumption (Typ.) |
3 Watts |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristic |
|
| Enclosure |
IP-30 |
| Dimension (W x D x H) |
88.9 (W) x 40 (D) x 178.2 (H)mm(3.5 x 1.57 x 7 inch)
|
| Weight (g) |
360g
|
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 70°C (-40 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensing
|
| Regulatory approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
|
| Shock |
IEC60068-2-27, EN61373 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6, EN61373 |
| Safety |
EN60950-1 |
| Warranty |
5 years |
|
