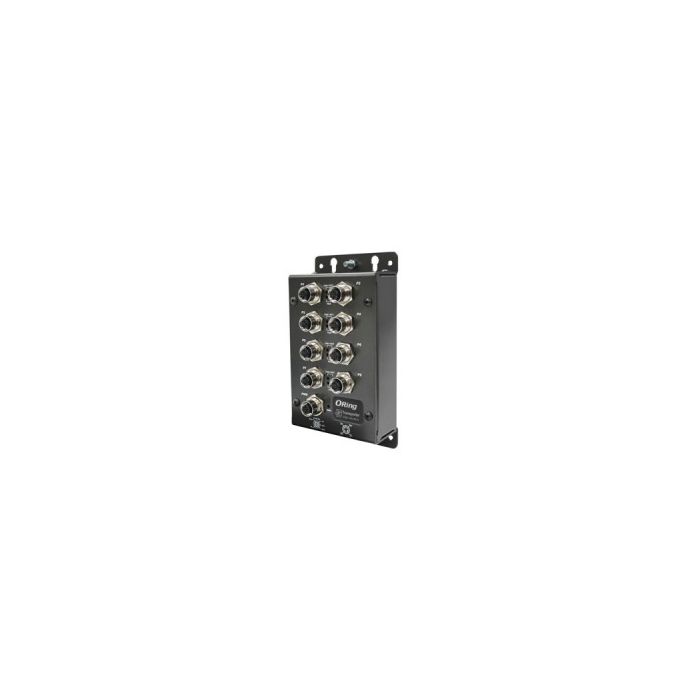

TES-180-M12 - 8 port unmanaged switch

In stock
SKU:
TES-180-M12
Brand: ORing

EN50155 Compact Size 8-port unmanaged Ethernet switch with 8x10/100Base-T(X), M12 connector


Enquire Now
Enquire about this product:

▪ Leading EN50155-compliant Ethernet switch for rolling stock application
▪ Support auto-negotiation and auto-MDI/MDI-X
▪ Support store and forward transmission
▪ Support flow control
▪ Warning system by relay output
▪ Ultra-rugged enclosure for toughest industrial usages
▪ Wall mounting enabled


This product is listed in Industrial Automation, Mining, Transport, ORing, Ethernet Switches
Physical Ports
10/100 Base-T(X) Ports in M12 (D-coding) Auto MDI/MDIX 8 x M12 connector (D-coding)
Technology

Ethernet Standards

IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control

MAC Table

8192 MAC addresses

Processing

Store-and-Forward

LED Indicators
Power Indicator Green : Power LED

Fault Indicatorr

Amber : Indicate power failure event

10/100Base-T(X) M12 Port Indicator

Green for port Link/Act. Amber for Duplex/Collision
Fault contact
Relay

Relay output to carry capacity of 3A at 24VDC on M12 connector (A-coding)

Power
Input Power

12~48VDC on M12 connector

Power Consumption (Typ.) 4.32 Watts
Overload Current Protection Present
Reverse Polarity Protection Present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H)

88.9 (w) x 40 (D) x178.2 (H)  mm

Weight (g)

510 g

Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory approvals
EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
EMS

EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-9, EN61000-4-11

Shock IEC60068-2-27, EN61373
Free Fall IEC60068-2-32
Vibration IEC60068-2-6, EN61373
Safety EN60950-1
Warranty 5 years
