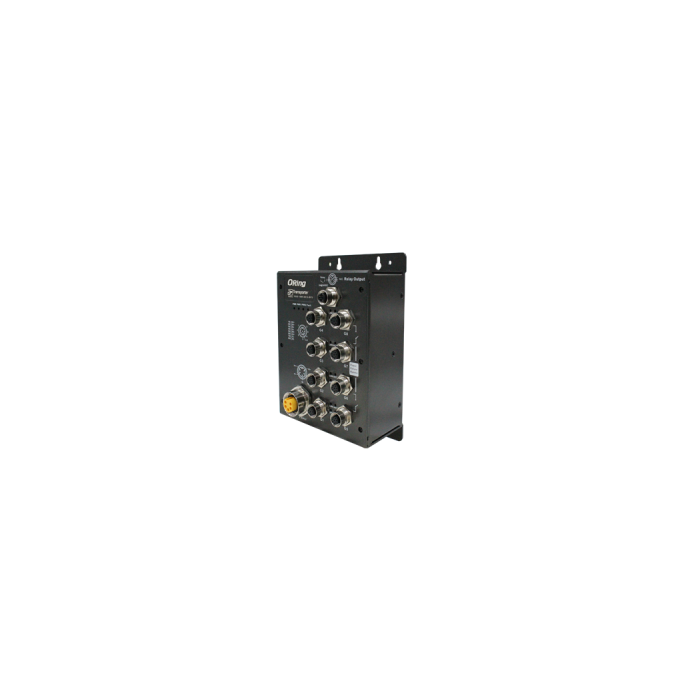

TGS-1080-M12 Series - 8 port unmanaged switch
TGS-1080-M12 Series - 8 port unmanaged switch
EN50155 8-port unmanaged Gigabit Ethernet switch with 8x10/100/1000Base-T(X), M12 connector and 2xbypass included
Description
- Leading EN50155-compliant Ethernet switch for rolling stock application
- Provide 8x10/100/1000Base-T(X) ports
- Support dual power inputs for power redundancy
- Built-in 2 sets of bypass ports
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- M12 connectors to guarantee reliable operation against environmental disturbances
- Rigid IP-40 housing design
- Wall mounting enabled
More Information
|
Specifications |
| Physical Ports |
|
|
10/100/1000Base-T(X) Ports in M12
|
8 x M12 connector (8-pin A-coding, bypass function included by last 4 ports) |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
|
| MAC Table |
8K MAC addresses |
| Processing |
Store-and-Forward |
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 1 |
| Fault Indicator |
Amber : Indicate PWR1 or PWR2 failure |
| 10/100/1000Base-T(X) M12 port indicator |
Top for port Link/Act indicator. Green for 1Gbps link, Amber for 10/100 Mbps link
Bottom Amber for Duplex / Collision indicator
|
| Fault Contact |
|
| Relay |
Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding) |
| Power |
|
| Redundant Input Power |
72~110VDC power input on 5-pin M23 connector |
| Power Consumption (Typ.) |
11.24 Watts |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
125 (W) x 65 (D) x196 (H) mm |
| Weight (g) |
1235 g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 70°C (-40 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Warranty |
5 years |
|
