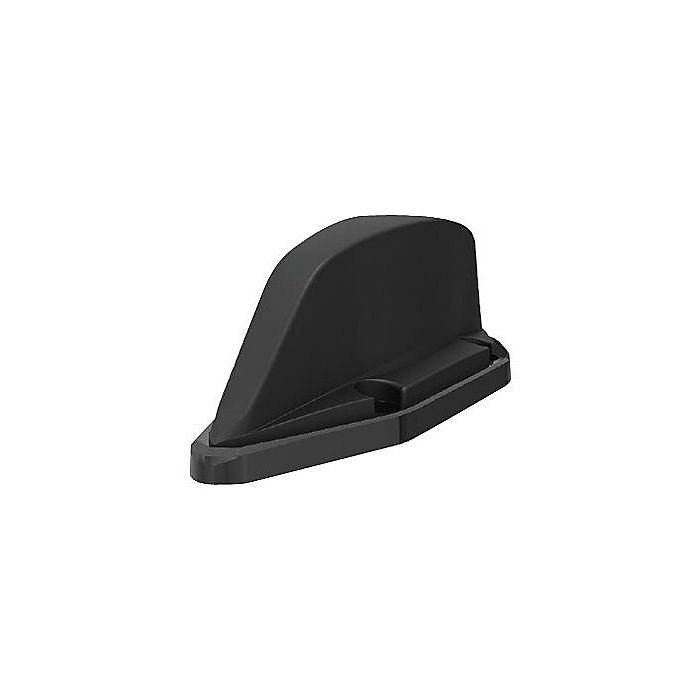

TRNMG-7-60-NJ MiMo 2G/3G/4G Rail Antenna
698MHz to 6000MHz MiMo 2G/3G/4G Rail Antenna with optional GNSS EN50155, EN45545-2 (HL 1-3), EN50124-1, IP69k
Downloads:
The TRNM[G] MiMo antenna series is designed specifically for use on trains, trams and buses underground or overground.
Incorporating two elements operating wideband across all frequencies from 698MHz to 6000MHz the TRNM[G] range is versatile and future-proof. The TRNM[G] series supports 2x2 MiMo across 4G/ 5G LTE frequencies from 698MHz to 6000MHz all in one housing. Alternatively, the main elements can be used for 2.4/5.0 GHz WLAN.
The TRNM[G] has two DC grounded radiating elements, in versions with a GPS module it is protected by a gas discharge surge arrestor. Housed in a high-impact, flame-retardant Ultem housing, the TRNM[G] series is weatherproof ensuring that the antenna’s performance is never compromised.
The TRNM[G] antenna meets stringent industry standards including EN50155, EN45545-2 (HL 1-3), and EN50124-1 (25 KA / 100 MS) and is ingress protected to IP69k when properly installed.
Key Features
- 2x2 MiMo Wideband Cellular LTE Antenna
- Heavy Duty & Fully Rail Certified Antenna
- Built to the Standard 4-hole Fixing Position
Performance Features
- Covers Wideband 700-6000MHz for Cellular LTE
- GSM-R and WiFi
- Optional GNSS Version Avaialble
- DC Grounded Antenna
- Certified to EN50155, EN45545 (HL 1-3), EN50124-1 (25KA / 100ms) and IP69K
Applications
- Mass Transit
- Rail
| Electrical Data | |
| LTE Frequencies | 698-960/1427-6000MHz |
| Global Positioning | Optional GPS / GNSS 1562-1612 |
| Wifi Frequencies | 2.4/5.0GHz |
| LTE MiMo | 2x2 |
| WiFi MiMo | 2x2 |
| Global Positioning Data | |
| Frequency Range (MHz) | 1562-1612 |
| LNA Gain (dB) | 26dB |
| Mechanical Data | |
| Available Colours | Black |
| Width (mm) | 87 |
| Height (mm) | 98 |
| Operating Temperature | -40 / +85°C |
| Mounting Data | |
| Mounting Type | Panel Mount |
| Mounting Method | N Bulkhead; Bolt Mount |
| Approvals Data | |
| IP Rating | IP67 / IP69K |
| Flame Retardancy | UL94-V0 |
| Industry Approvals | EN50155; EN50121; EN45545; EN50124 |
