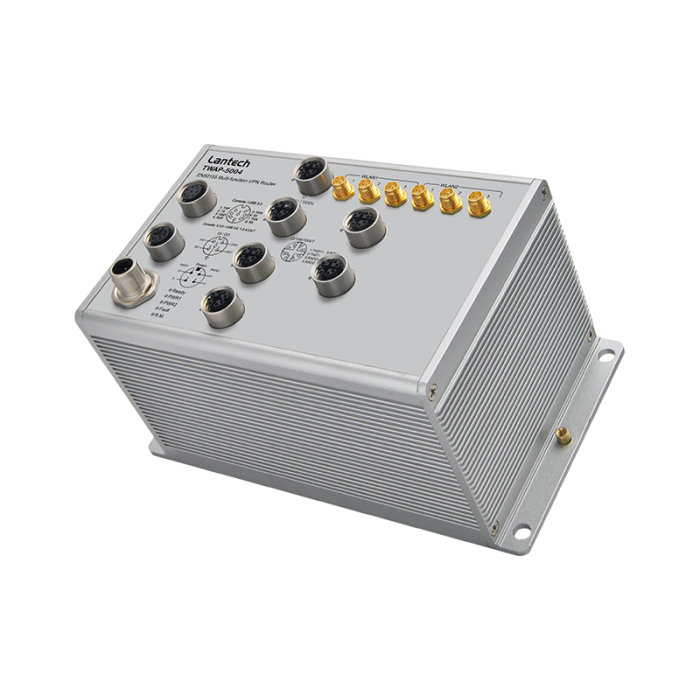

TWAP-5004

^{Operating Mode}

^{AP/BRIDGE/Client modes}

^{Radio Frequency Type}

^{DSSS, OFDM}

^{Wireless Standard}

^{IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz}

^{Wireless bandwidth}

^{5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mbps}

^Modulation

^{802.11b: DSSS
802.11a/g:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)}

^{Operating Frequency}

^{IEEE 802.11 a/b/g/n ISM Band, 2.412GHz~2.472GHz, 5150MHz~5850MHz}

^{Transmission Rate}

^{IEEE802.11ac: up to 1300Mbps
IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps
IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
IEEE802.11n: up to 450Mbps}

^{IEEE 802.11b/g/n(2.4Gbps)}

^{Output Power Tx +/- 2dB(per chain)
18dBm @ 1~11Mbps
18dBm @ 6~54Mbps
20/20dBm @ MCS0~MCS7 (HT20/40)
Receiver Sensitivity Rx +/- 2dB
≦-95dBm @ 1~11Mbps
≦-92dBm @ 6~18Mbps
≦-88dBm @ 24Mbps
≦-85dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-94dBm @ MCS0 (HT20/40)
≦-76dBm @ MCS7 (HT20/40)}

^{IEEE 802.11a/n/ac(5Gbps)}

^{Output Power Tx +/- 2dB(per chain)
20dBm @ 6~24Mbps
16dBm @ 36~54Mbps
19/18dBm @ MCS0 (HT20/40)
16/16dBm @ MCS7 (HT20/40)
19/18/18dBm @ MCS0 (VHT20/40/80)
13/13/13dBm @ MCS8 (VHT20/40/80)
13/13dBm @ MCS9 (VHT40/80)
Receiver Sensitivity Rx +/- 2dB
≦-92dBm @ 6~18Mbps
≦-86dBm @ 24Mbps
≦-84dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-93dBm @ MCS0 (HT20/40)
≦-71dBm/≦-80dBm @ MCS7 (HT20/40)
≦-90dBm @ MCS0 (VHT20/40/80)
≦-69dBm @ MCS8 (VHT20/40/80)
≦-66dBm @ MCS9 (VHT40/80}

^{Encryption Security}

^{WEP : (64-bit ,128-bit key supported)
WPA /WPA2 : IEEE802.11i(WEP and AES encryption)
WPA-PSK (256-bit key pre-shared key supported)
OKC** and 802.11r**
EAP,MD5,EAP,TLS,EAP,TTLS,EAP
MsCHAPv3 and PEAP **}

^{Wireless Security}

^{SSID broadcast disable**}

^Connectors

^{10/100/1000T: 6x ports M12 8pole X-coded incl. 2WAN/2LAN ports
USB/Console connector: 1 x M12 8-pole A-coded
STANDARD SMA / OPTIONAL QMA connector : 3 male WI-FI
Power Input connector : 1 x M12 4-pole A-coded
DI/DO : 1 x M12 5-pole A-coded}

^{Serial Baud Rate**}

^{1000Kbps high data rate,250kbps normal for RS232 ; 20Mbps high data rate,250kbps normal for RS422/485}

^{Serial Data Bits**}

^{5, 6, 7, 8}

^{Serial Partiy**}

^{odd, even, none, mark, space}

^{Serial Stop Bits**}

^{1, 1.5, 2}

^RS-232**

^{TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND}

^RS-422**

^{Tx+,Tx-, Rx+, Rx-,GND}

^{RS-485 (2-wire)**}

^{Data+, Data-,GND}

^{Isolation protection**}

^{RS422/485 2.5KV isolation; 8KV contact & 15KV air
RS232 8KV contact and 15KV air ESD
DIDO 3KV isolation
Input power 1.5KVA isolation}

^DI/DO

^{2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA}

^{Power & System indicator}

^{Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) , Ring Master(Green), System Ready(Green), Storage(Green), Serial1/Serial2(Green)**}

^{10/100/1000Base-T(X) port indicator}

^{Link/Activity (Green), Speed (Yellow)}

^Fault

^{Red: Ethernet link down or power down}

^Relay

^{Relay output to carry capacity of 1A at 24VDC}

^{Input power}

^{Dual DC input, isolated 16.8VDC~137.5VDC for (WV model); dual 9V~60VDC (24Vmodel)}

^{System power}

^20W

^Enclosure

^{IP 65/54 aluminum case}

^Dimension

^{178 (W) x 99 (D) x 103 (H) mm}

^Weight

^1000g

^{Storage Temperature}

^{-40oC ~ 85oC (-40oF ~ 185oF)}

^{Operating Temperature}

^{-20oC ~ 70oC (-4oF ~ 158oF)
-40oC ~ 70oC (-40oF ~ 158oF)(-E)}

^{Operating Humidity}

^{5% to 95% Non-condensing}

^EMC

^{FCC Part 15 Class A, EN55032}

^EMS

^{EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11}

^{Stability Testing}

^{EN61373 (Shock & Vibration)}

^{Railway verification}

^{EN50155*, 50121*,45545}

^MTBF

^NA

^Warranty

^{5 years}
