TX09D200VM0BAA

Part Name

TX09D200VM0BAA

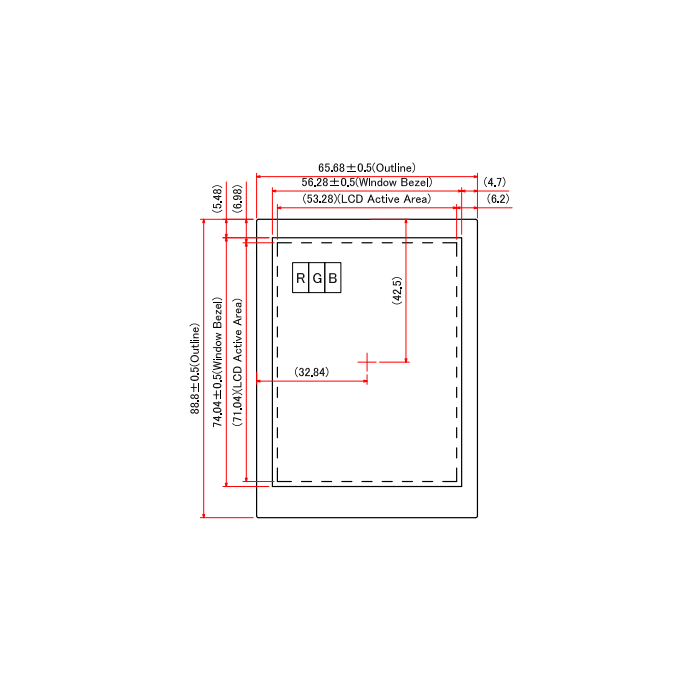

Module Dimensions

65.68 (W) mm x 88.8 (H) mm x 9.95 (D) mm

LCD Active Area

53.28 (W) mm x 71.04 (H) mm

Pixel Pitch

0.222 (W) mm x 0.222 (H) mm

Resolution

240 x (RGB)(W) x 320(H) dots

Colour Pixel Arrangement

R,G,B Vertical stripe

LCD Type

Trans missive Colour TFT; Normally Black

Display Type

Active Matrix

Number of Colours

16.7M Colours (8-bit RGB)

Backlight

LED

Weight

72g

Interface

C-MOS; 50 pins

Power Supply Voltage

3.3V for LCD; 12V for Backlight

Power Consumption

82.5mW for LCD; 1020mW for Backlight

Viewing Direction

Super wide version
