TX13D06VM2BAA

In stock
SKU:
TX13D06VM2BAA
Brand: KOE

5” WVGA, 16:9, RoHS compliant, LED LCD


Downloads:

Enquire Now
Enquire about this product

5” WVGA, 16:9, RoHS compliant, LED LCD


This product is listed in Digital Signage, Industrial Automation, Mining, Transport, LCD Displays

Part Name

TX13D06VM2BAA

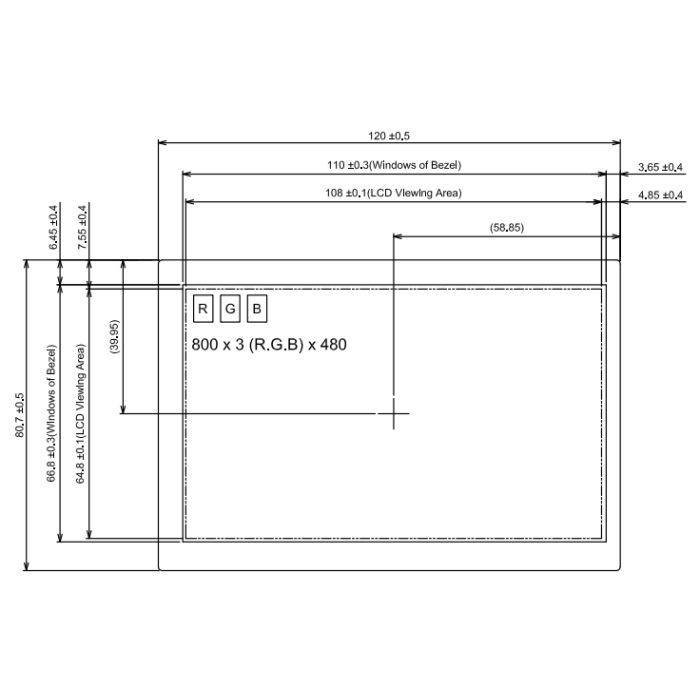

Module Dimensions

120 (W) mm x 80.7 (H) mm x 8 (D) mm

LCD Active Area

108 (W) mm x 64.8 (H) mm

Pixel Pitch

0.045 x 3 (W) mm x 0.135 (H) mm

Resolution

800 x 3 (RGB)(W) x 480(H) dots

Colour Pixel Arrangement

R,G,B Vertical stripe

LCD Type

Trans missive Colour TFT; Normally White

Display Type

Active Matrix

Number of Colours

262k Colours (8-bit RGB)

Backlight

LED

Weight

75g

Interface

C-MOS; 40 pins

Power Supply Voltage

3.3V for LCD; 12V for Backlight

Viewing Direction
