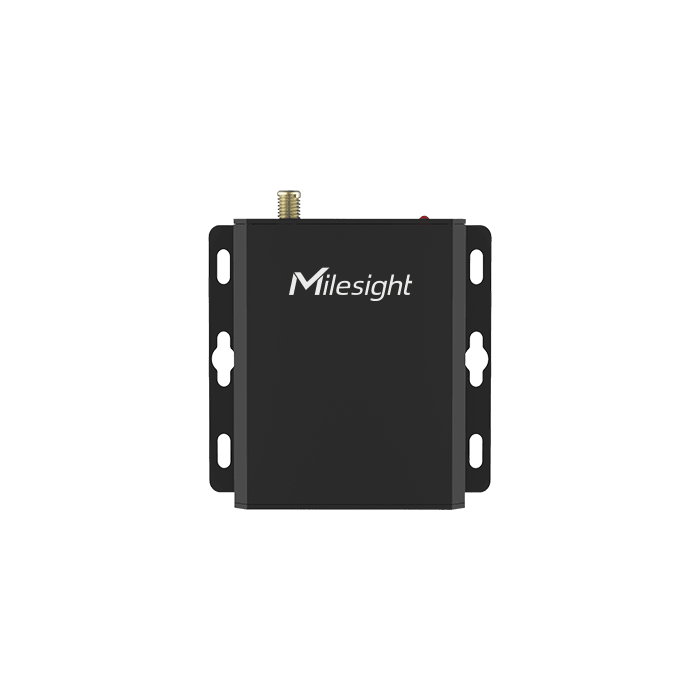

UC11 Series LoRaWAN Controllers GPIO/AI/RS232/RS485

In stock
SKU:
UC1152/UC1114/UC1122
Brand: Milesight IOT

LoRaWAN Controllers GPIO/AI/RS232/RS485 Wide Operating Temp


Enquire Now
Enquire about this product:

The UC11 series LoRa wireless controller is a device that collects data from a variety of sensors. It has a variety of I/O interfaces, such as analogue inputs, digital inputs, relay outputs, and serial ports, which make LoRaWAN network deployment and replacement easier. Furthermore, the UC11 series supports a variety of trigger conditions and actions that can be performed without the use of a network. The UC11 series is widely used in indoor applications such as smart industries, building automation, and so on, thanks to its industrial design and IP30 metal case.

Key Features

  • Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces
  • Ultra-wide-distance transmission up to a line of sight of 10km
  • Multiple triggering conditions and actions
  • Embedded watchdog for work stability
  • Industrial metal case design with a wide operating temperature range
  • Compliant with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution

This product is listed in Industrial Automation, Mining, Milesight IOT
LoRaWAN Interface
Connector 1 × 50 Ω SMA (Center PIN: SMA Female)
Protocol LoRaWAN® 1.0/1.0.2 Class C
Configuration Interface
Port 1 × Micro USB Port
IO
Connector Terminal block
Digital Inputs 2 x Opto-isolated Digital Inputs
DC Voltage (3-24V)
Digital Outputs 2 x SPDT Relay Contact Rating:
3 Amp DC (Max: 30 V) or 3 Amp AC (Max: 250 V)
Serial
Ports RS232/RS485
Baud Rate 4800~115200bps (RS232)/1200~115200 bps (RS485)
Protocol Transparent (RS232), Modbus RTU (RS485)
Analog Input
Input Range 4~20 mA
Resolution 12 bit
Power Supply
Connector Terminal block
Input Voltage 5-24V DC (Standard adapter: DC 12V/0.5A)
Physical Characteristics
Ingress Protection IP30
Dimensions 79 x 76 x 24 mm
Mounting Desktop or Wall Mounting
Others
Reset Button 1 × RESET (Inside The Device)
LED Indicators 1 × System, 1 × ACT
Built-in Watchdog
Operating Temperature -40°C to 70°C
