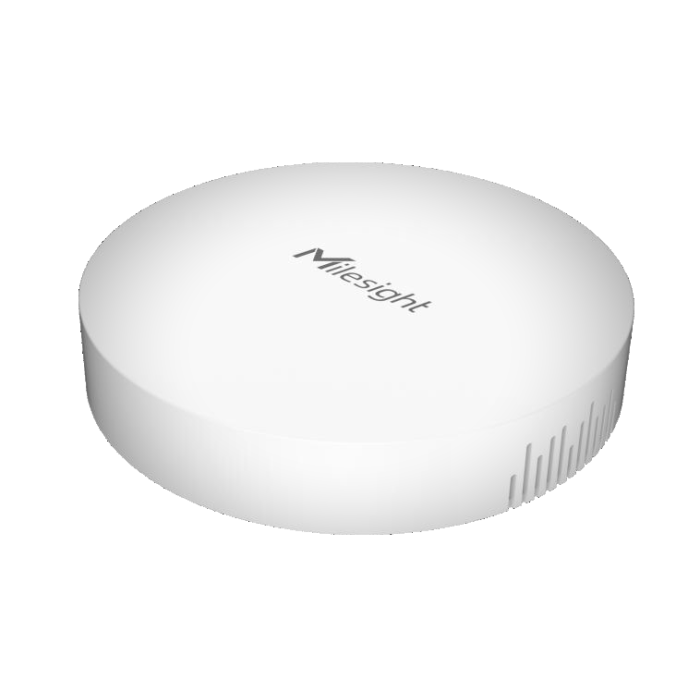

UG63 Mini LoRaWAN Gateway PoE Powered
In stock
SKU:
UG63
Brand: Milesight IOT
UG63 LoRaWAN Mini Gateway 8-channel Lightweight PoE Powered IP30
Key Features
- Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
- 8 half/full-duplex channels
- Support worldwide LoRaWAN® frequency range from 470 MHz to 928 MHz
- Support Listen Before Talk (LBT) for downlink
- DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
- Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
- Compatible with mainstream network servers like The Things Industries, ChirpStack, etc.
- Detect and analyze the noise level and provide intuitive diagram for deployment
- Built-in network server and MQTT/HTTP/HTTPS API for easy integration
Enquire Now
Enquire about this product:
This UG63 mini LoRaWAN Gateway is delicately designed with a mini size and aesthetic appearance. Apart from standalone deployment, with strong and reliable performance as well as many advanced features like LBT, it fits the LoRaWAN network coverage for indoor blind spots.
Key Features
- High-performance NXP industrial processor with big memory
- Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
- 8 half/full-duplex channels
- Support worldwide LoRaWAN® frequency range from 470 MHz to 928 MHz
- Support Listen Before Talk (LBT) for downlink
- Desktop, wall or ceiling mounting support
- DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
- Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMVPN
- Compatible with mainstream network servers like The Things Industries, ChirpStack, etc.
- Detect and analyze the noise level and provide intuitive diagram for deployment
- Built-in network server and MQTT/HTTP/HTTPS API for easy integration
| Hardware System | |
| CPU | 528 MHz, ARM Cortex-A7 |
| Memory | 256 MB DDR4 RAM |
| Flash | 4 GB eMMC |
| LoRaWAN | |
| Antenna | 2 × Internal Antennas |
| Channel | 8 (Half/Full-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| LBT | Support |
| Ethernet Interface | |
| Port | 1 × RJ45 (PoE PD supported) |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half-Duplex (Auto-Sensing) |
| Others | |
| Reset Button | 1 × RST |
| Console Port | 1 × Type-C |
| LED Indicators | 1 × SYS, 1 × LoRa |
| Built-in | Watchdog, RTC, Timer |
| Software | |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Management | Web, CLI, DeviceHub, Milesight IoT Cloud |
| Power Supply | |
| Power Input |
1. 1 × 802.3af standard PoE input |
| Physical Characteristics | |
| Ingress Protection | IP30 |
| Dimensions | Ф 115 x 21 mm (Ф 4.52 x 0.83 in) |
| Colour & Material | White, PC + ABS |
| Installation | Desktop, Wall or Ceiling Mounting |
| Environmental | |
| Operating Temp. | -20°C to +50°C (-4℉ to +122℉) |
| Storage Temp. | -40°C to +85°C (-40℉ to +185℉) |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
