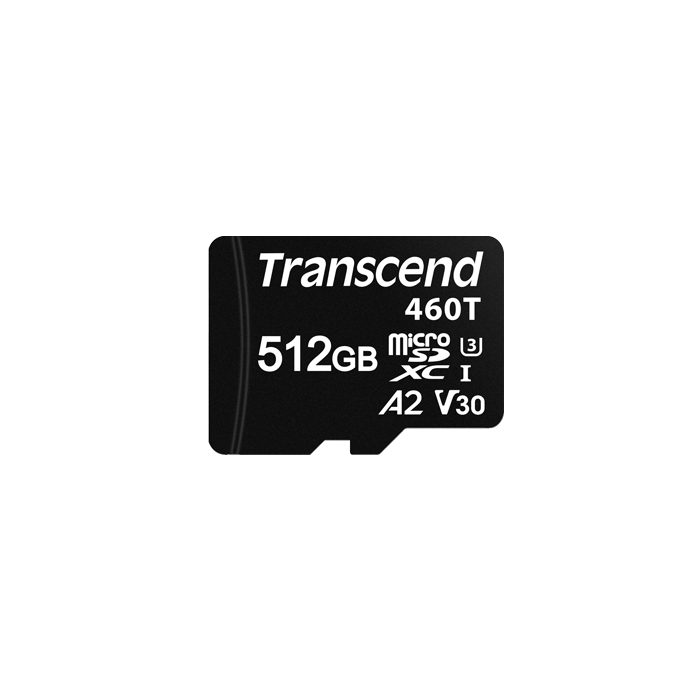

USD460T & USD460I microSD Cards

SKU: TSxxxxUSD460T

microSD Cards Utilizing top-quality 3D NAND Flash and rated to endure 3K P/E cycles

Description

Utilizing top-quality 3D NAND Flash and rated to endure 3K P/E cycles, Transcend's microSDXC 460T memory cards combine the advantages of high performance and exceptional endurance at an affordable price. They are ideal for write-intensive applications such as medical devices, surveillance systems, and POS terminals.

Transcend also offers the microSDXC 460I with wide temperature (-40℃ ~ 85℃) capabilities to ensure sustained functionality and optimal reliability.

Key Features:

Firmware:

  • Built-in LDPC ECC (Error Correction Code) functionality
  • Early Move
  • Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
  • Wear-Leveling

Hardware:

  • Compliant with RoHS 2.0 standards
  • Electrostatic protection (ESD IEC 61000-4-2)
  • Compliant with SD specification 6.1
  • Compliant with UHS-I
  • Compliant with Video Speed Class 30 (V30)
  • Compliant with Application Performance Class 2 (A2)
  • Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
  • Promised operational reliability in a wide temperature range (from -40°C to 85°C)
  • Supports Transcend Scope Pro software

Download

More Information

Brand Transcend
Specifications

Appearance

Dimensions 11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Form Factor
  • microSD flash card

Storage

Flash Type
  • 112-layer 3D NAND flash
Capacity
  • 64 GB/
  • 128 GB/
  • 256 GB/
  • 512 GB

Operating Environment

Operating Voltage
  • 2.7V ~ 3.6V
Drop Test
  • 1.5m free fall
Operating Temperature
  • Standard Temp.
    -25°C (-13°F) ~ 85°C (185°F)
  •
  • Wide Temp.
    -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
Shock
  • Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating) 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)

Power

Power Consumption (Max.) 0.5 watt(s)

Performance

Read Speed (Max.) up to 100 MB/s
Write Speed (Max.) up to 80 MB/s
Terabytes Written (TBW) up to 1343 TBW
Note
  • Speed may vary due to host hardware, software, usage, and storage capacity.
  • Terabytes Written (TBW) expresses the endurance under the highest capacity.

Ordering Information

64G TS64GUSD460T-VS1 64GB microSD A1 U1/V10, 3D TLC BiCS5
128G TS128GUSD460T-VS1 128GB microSD A2 U3/V30, 3D TLC BiCS5
256G TS256GUSD460T-VS1 256GB microSD  A2 U3/V30, 3D TLC BiCS5
512G TS512GUSD460T-VS1 512GB microSD  A2 U3/V30, 3D TLC BiCS5
