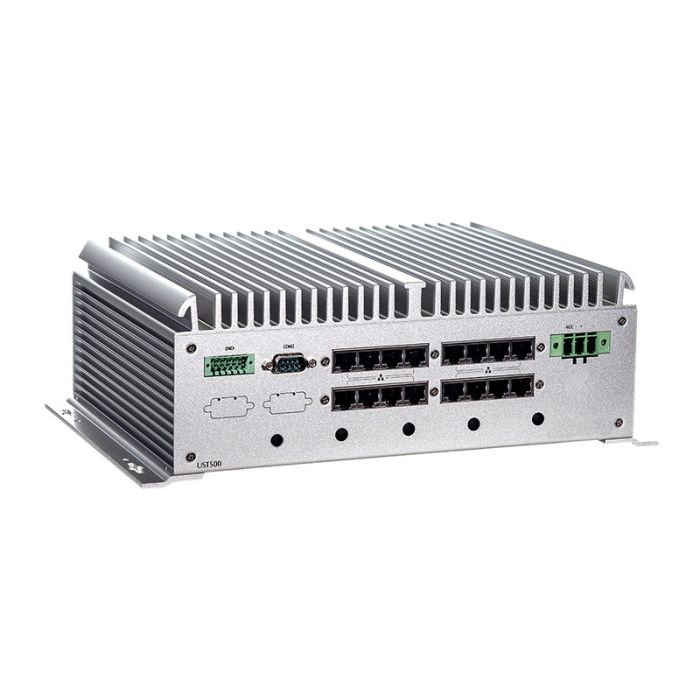

The UST500-517-FL is powered by LGA1151 socket 7th/6th generation Intel CoreTM and Pentium processors up to 65W with the Intel Q170 chipset. For IP cameras, the integrated 16 PoE ports are available in RJ-45 or M12 connectors. It offers comprehensive power protection, including intelligent power management technology for ACC on/off delay, shutdown delay, and over/under voltage protection. The UST500-517-FL can operate in a wide temperature range of -40°C to +70°C and with a vibration endurance of up to 3 Grms thanks to its robust structure and system design. For mobile surveillance applications, this transportation embedded box complies with ISO 7637-2 and EN 50155.
There are 16 Gigabit LAN ports that support 802.3at/af Power over Ethernet and have a total power budget of 200W. It has three surveillance monitors supported by its DVI-D, HDMI, and VGA interfaces. Furthermore, its externally accessible SIM card slot allows users to easily switch between telecommunication services. With wireless LAN modules, this user-friendly transportation embedded system can transmit video to the control centre in real time. For mass storage of video files, the two built-in or four swappable SATA hard drives are used.
Key Features:
CE, FCC, E-Mark, EN 50155 and EN 45545-2 certified
LGA1151 7th/6th gen Intel® Core™ & Pentium® processors (up to 65W) with Intel® Q170 (Kaby Lake/Skylake)
Fanless and Wide operating temperatures from -40°C to +70°C
Flexible LAN selection, up to 16 RJ-45 GbE PoE LAN ports
24 VDC power input
Intelligent solution of vehicle power management (ACC ignition)
Convenient and Accessible Storage, two/four 2.5” SATA drive, 1 mSATA
