UST520 Fanless Embedded System with 14th/13th Gen Intel Core
Fanless Embedded System with LGA1700 14th/13th/12th Gen Intel Core i9/i7/i5/i3 or Celeron Processor, Intel R680E, 9 to 60 VDC for In-vehicle Intelligent Surveillance Application
Key Features:
- CE, FCC, E-Mark, and R118 certified
- LGA1700 14th/13th/12th Gen Intel Core i9/i7/i5/i3 or Celeron processor (up to 65W) with Intel® R680E
- Fanless and wide operating temperatures from -40°C to +70°C
- Up to 8/16 GbE PoE port by M12/RJ-45 connector type
- Supports M.2 Key B and M.2 Key E for the wireless communication module
- Intelligent solution of vehicle power management (smart ignition)
- Convenient swappable HDD/SSD slots and flexible I/O windows
Description
Product Overview
The Axiomtek UST520 is a rugged, fanless in-vehicle embedded computer platform specifically engineered for demanding transportation, fleet, rail, and mobile signage environments. Powered by a choice of 12th, 13th or 14th Generation Intel® Core™ or Celeron® processors (up to 65 W TDP) combined with the Intel® R680E chipset, this system delivers high performance in harsh and mobile operating conditions.
With certifications including CE, FCC, E-Mark and R118, wide temperature tolerance (-40 °C to +70 °C) and support for smart vehicle power management (“smart ignition”), it is purpose-designed for on-board computing in buses, trains, monitoring vehicles or other mobile industrial platforms.
Key Features
High-Performance Processor Support
-
Leverages the Intel® R680E chipset and LGA 1700 socket for 12th/13th/14th Gen Intel® Core™ (i3/i5/i7/i9) or Celeron® processors, offering up to 65 W TDP for compute-intensive tasks.
Wide Temperature & Rugged-Grade Operation
-
Fully fanless operation and temperature rating from −40 °C to +70 °C enable dependable performance in extreme-duty in-vehicle environments.
High-Bandwidth PoE Interfaces
-
Offers up to 8 or 16 PoE channels of 2.5 GbE via either RJ-45 or M12 X-code connectors, ideal for camera, sensor or communication network deployment inside the vehicle or rolling stock.
Versatile Storage & Expansion
-
Supports swappable SATA drives (2.5″) with RAID 0/1/5/10 options, NVMe via M.2 Key M, and multiple wireless expansion slots (mPCIe, M.2 Key B, Key E) for LTE/5G, WiFi/Bluetooth or GPS modules.
Vehicle-Ready Power & I/O
- Terminal-block DC input (12/24/48 V) with smart ignition supports proper vehicle power-cycle control, while onboard I/O includes CANBus, serial console, digital I/O and more.
Certified for In-Vehicle Use
-
Meets E-Mark and R118 standards for automotive/transportation deployment, along with CE and FCC Class A certifications for industrial use.
Dimensions Drawings
Download
More Information
| Brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
UST520-RLS-A
Fanless embedded system with 14th/13th/12th Gen Intel® desktop processor (LGA1170), R680E, VGA, 2 HDMI, 2 6-in/2-out DIO, 2 CAN, COM, 4 USB 3.2, 8 RJ-45 PoE 2.5 GbE LAN, 2 SATA drives, smart ignition, and TDC
UST520-RLS-B
Fanless embedded system with 14th/13th/12th Gen Intel® desktop processor (LGA1170), R680E, VGA, 2 HDMI, 2 6-in/2-out DIO, 2 CAN, COM, 4 USB 3.2, 16 RJ-45 PoE 2.5 GbE LAN, 4 SATA drives, smart ignition, and TDC
UST520-RLS-C

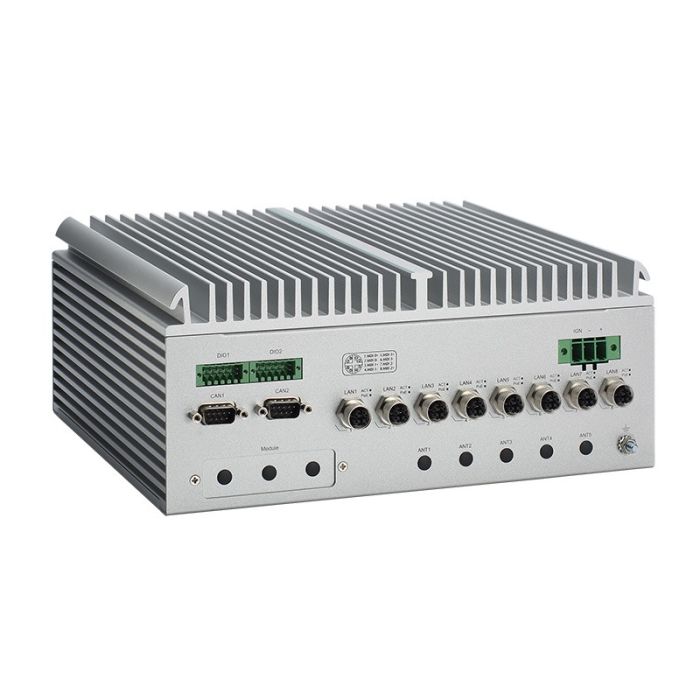

Fanless embedded system with 14th/13th/12th Gen Intel® desktop processor (LGA1170), R680E, VGA, 2 HDMI, 2 6-in/2-out DIO, 2 CAN, COM, 4 USB 3.2, 8 M12 X-code PoE 2.5 GbE LAN, 4 SATA drives, smart ignition, and TDC
Anti-Vibration Kit (P/N-8816N5008A0E)
For HDD stability for in-vehicle and rolling stock NVR applications
50906A24000E
Adapter 24V230W FSP230-AAAN3 WIRE FSP (only for office testing purposes)
594N3202730E
LAN cable M12-A male 8P to RJ-45
599000001100
P Cord YP12/YC12_CY-U0032 YUNG_LI 1830 mm
59905000000E
Power Cord YP-35/YC-12 (Australia)
