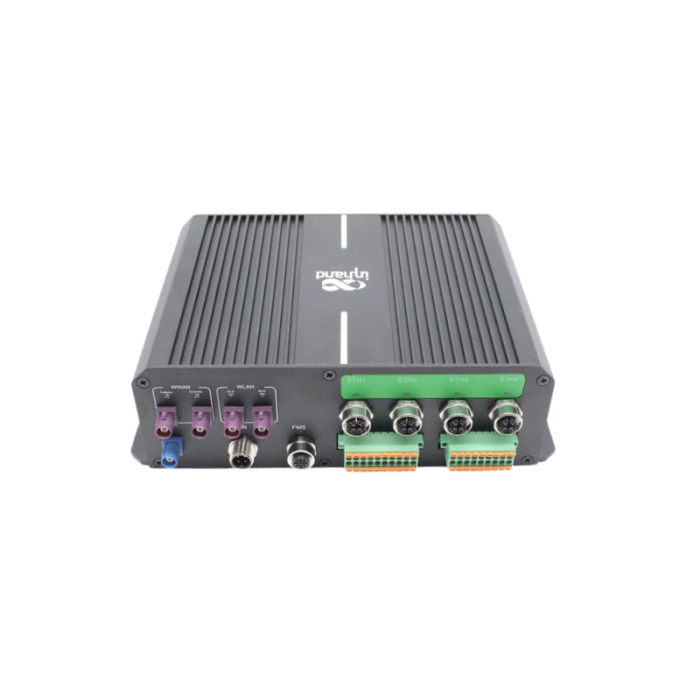

VG814 5G/4G In-Vehicle/Rail Gateway

Product Overview

The InHand VG814 (Roadway) is an all-in-one vehicle gateway engineered for public transport, fleet and roadway deployments. It integrates 5G or LTE cellular, high-speed Ethernet, dual-band Wi-Fi, GNSS and edge computing in a ruggedised form suitable for mobile applications. With built-in support for vehicle diagnostics, dual SIM redundancy and programmable environments (Python, Docker), it delivers robust connectivity, data collection and control for transit vehicles, buses and roadside systems.

Key Features

High Connectivity and Edge Intelligence

• 5G NR or LTE-Advanced cellular connectivity with dual SIM for reliable service continuity.

• Gigabit Ethernet plus dual-band Wi-Fi for high throughput in-vehicle networks.

• 72-channel GNSS receiver (GPS, GLONASS, Galileo, BeiDou) with dead-reckoning support for accurate positioning.

• Programmable edge computing environment supporting Python and Docker for custom applications and telematics.

Ruggedised Vehicle Design

• Vehicle-rated form factor with M12 connectors, FAKRA RF connectors and IP-rated enclosure for roadway and transit use.

• Wide operating temperature range and designed for the vibration, humidity and shock conditions found in transport environments.

• Compliant with ITxPT-style vehicle standards for onboard electronic interoperability.

Power and I/O Integration

• Wide DC input voltage range (9 V to 48 V or 9 V to 36 V) with ignition and power-control interface for seamless vehicle integration.

• Multiple vehicle-grade interfaces, including CAN bus, OBD-II/J1939, RS-232/RS-485, digital inputs/outputs for diagnostics and control.

• Built-in wall-mount or vehicle-cabinet mount design with rugged aluminium enclosure.

Certifications and Compliance

• CE, E-Mark, and RoHS compliant, with vehicle standard authorisation for public transport applications.

• Designed to meet EN 50155, EN 61373 and EN 50121 series standards for rolling stock and transport electronics (depending on configuration).

• Built for use in buses, coaches, trams and road-based fleet infrastructures with operator-grade reliability.
