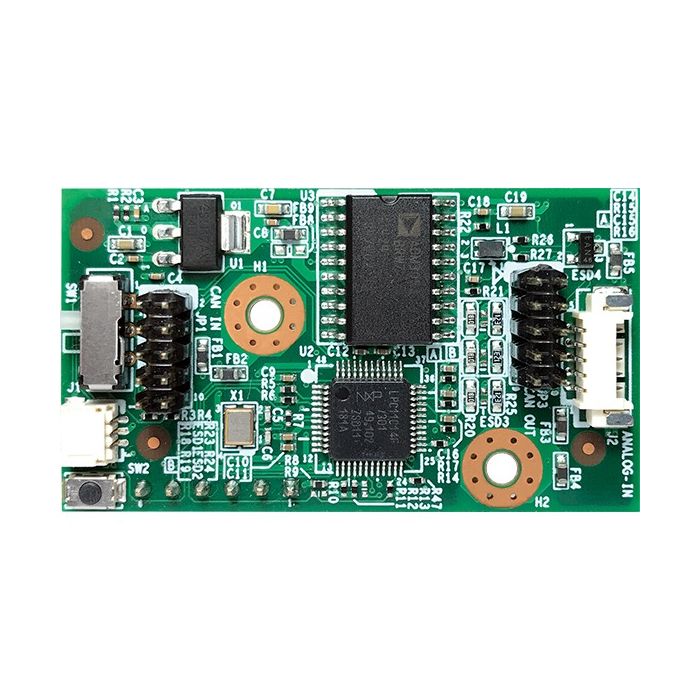

VIOB-CAN-03 CAN/J1939 Add-On Module
1 x SAE J1708 or J1939, 1 x CAN 2.0B or SAE J1939 Module
Key Features:
- 1 x SAE J1708 or J1939/1 x CAN 2.0B or SAE J1939 supported (by module)
- Proprietary form factor to release a mini-PCIe slot for additional applications
- Support bit rate up to 100 kbps~1 Mbps
- Wide-range operating temperature
- ESD and electrical protection
Description
Product Overview
The VIOB-CAN-03 is an embedded add-on module designed to expand CAN bus and J1708/J1939 connectivity in vehicle and industrial computing systems. With support for SAE J1708 and CAN 2.0B/SAE J1939 protocols, the module enables seamless integration of vehicle diagnostics, fleet management, and industrial control applications. Built with a proprietary form factor, it frees up mini-PCIe slots while maintaining reliable performance in harsh environments.
Key Features
Flexible Vehicle Protocol Support
- 1 × SAE J1708 or SAE J1939 interface
- 1 × CAN 2.0B or SAE J1939 interface
- Data rates from 100 kbps to 1 Mbps
Rugged and Reliable Design
- Wide operating temperature range: -40°C to 85°C
- ESD protection for stable operation
- Industrial-grade reliability for automotive and embedded use
Efficient Expansion
- Proprietary form factor conserves mini-PCIe slots
- Compact add-on design for space-constrained applications
- Simplifies integration with in-vehicle and embedded computers
Applications
- Vehicle diagnostics and telematics
- Fleet management systems
- Intelligent transportation solutions
- Industrial control and monitoring
Product Versions
Download
More Information
| Brand | Nexcom | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
VIOX-CAN01 (P/N: 10VKOBDII00X0)
Be used for VTC 1010/VTC 6210/VTC 72XX/VMC series/MVS series (by request). 1 x SAE J1708 or SAE J1939 module, proprietary form factor, UART interface
VTK-CAN-03 (P/N: 10VK00CAN01X0)
Be used for VTC 1010/VTC 6210/VTC 72XX/VMC series/MVS series (by request). 1 x CAN 2.0B or SAE J1939 module, proprietary form factor, UART interface
