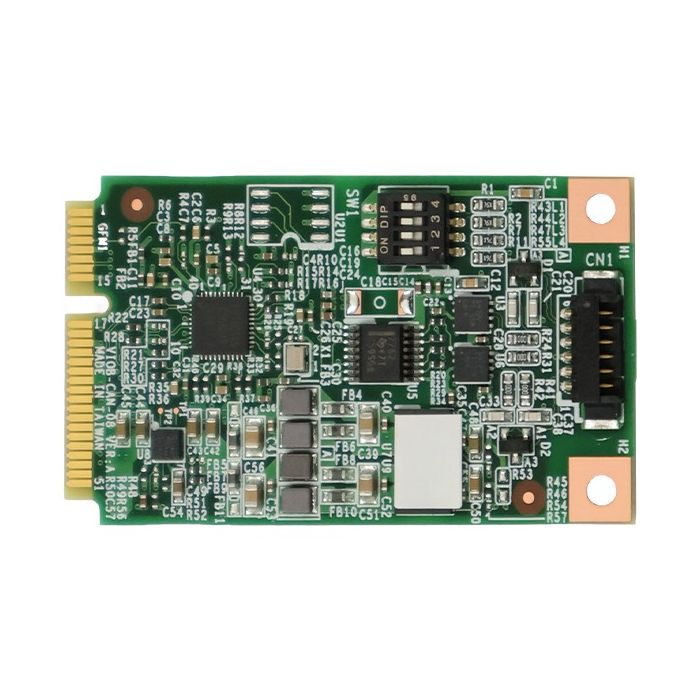

VIOB-CAN-08 Dual High-Speed Mini PCIe CAN FD Module

Product Overview

The NEXCOM VIOB-CAN-08 is a dual high speed Mini PCIe CAN FD module designed to add CAN FD communication to compatible embedded and mobile computing platforms. Featuring two CAN FD ports via a DB9 connector, it supports high speed vehicle and industrial data communication for telematics, transportation, automation and equipment monitoring applications. With a full size Mini PCIe form factor, wide operating temperature support and ESD protection, the VIOB-CAN-08 provides a compact and reliable expansion option for systems that need fast CAN communication in rugged environments.

Key Features

Dual CAN FD Interface

• Provides two CAN FD ports through a DB9 connector

• Designed for high-speed vehicles and industrial communication

• Suitable for ECU communication and equipment data exchange

• Supports modern CAN FD applications requiring higher data throughput

High Speed CAN Communication

• Supports bit rates from 5 kbps to 5 Mbps

• Compliant with ISO 11898-1 and ISO 11898-2

• Supports 11-bit and 29-bit CAN identifiers

• Suitable for advanced telematics and transportation systems

Mini PCIe Expansion Design

• Full-size Mini PCIe form factor

• PCIe interface for system integration

• Compact design for embedded platforms

• Easy to install in compatible NEXCOM systems

Termination and Signal Support

• Dual 120 Ohm line termination

• Termination can be enabled or disabled by the DIP switch

• Helps support flexible CAN network configurations

• Designed for stable communication in connected systems

Rugged Operating Environment

• Wide operating temperature from -40°C to 85°C

• Storage temperature from -50°C to 90°C

• Relative humidity support from 5% to 90% with the system chassis

• Designed for mobile, transportation and industrial environments

Applications and Use Cases

The VIOB-CAN-08 is suitable for:

• Vehicle telematics systems

• Transportation computers

• Railway and fleet monitoring platforms

• Industrial automation equipment

• CAN FD data acquisition

• ECU communication and diagnostics
