The VIP 1000 (VIP 1000-T & VIP 1000-R) is a new 2K dual HDMI Extender over IP system for public transportation applications that extends HDMI signals to over 100m and simplifies and simplifies video broadcasting in in-vehicle passenger information systems (PIS) and infotainment systems. The receiver has an additional RJ-45 network port that can be used as an in-vehicle video DaisyChain extender to support even more displays. Furthermore, multiple transmitters can deliver different videos over the same network, and a web interface can be used to select the appropriate signal.
Key Features:
Full HD HDMI (1.4b) extender over IP 9-36VDC input voltage with ignition control E mark for in-vehicle application Plug and Play 2 x Full HD HDMI output Unicast, daisy chain and multicast modes support Selectable video source Up to 100-metre distance

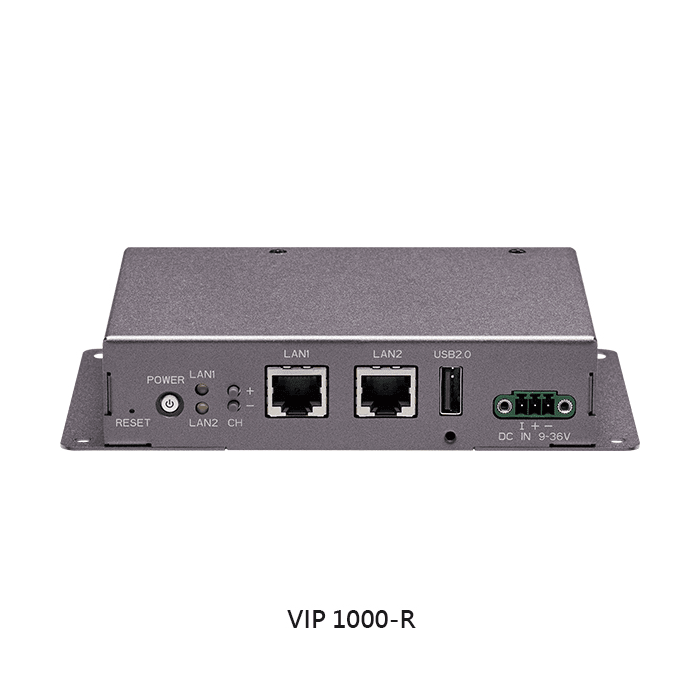

Transmitter: VIP 1000-T - 1 x Power button with LED - 1 x LED for LAN (Active/Link) - 1 x 10/100/1000 Mbps Ethernet - 1 x HDMI type A - 1 x USB2.0 OTG - 1 x Reset buttonReceiver: VIP 1000-R - 1 x Power button with LED - 2 x LED for LAN (Active/Link) - 2 x 10/100/1000 Mbps Lan switch - 1 x USB 2.0 type A - 1 x Reset button - 2 x buttons for video source selection - 1 x Phoenix connector for power (9~36VDC)/GND/ignition input
I/O Interface-Rear
Transmitter: VIP 1000-T - 1 x Phoenix connector for power (9~36VDC)/GND/ignition input
Receiver: VIP 1000-R - 1 x HDMI Type A for main output - 1 x HDMI Type A for second output
Power Management
System power On/Off by ignition signal
Dimensions
130 mm (W) x 100 mm (D) x 31 mm (H)
Weight
0.5 kg
Environment
Temperature Operating temperatures: 0°C to 70°C
Storage temperatures: -40°C to 85°C
Relative humidity: 90% (non-condensing)
Vibration & Shock
Vibration - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
