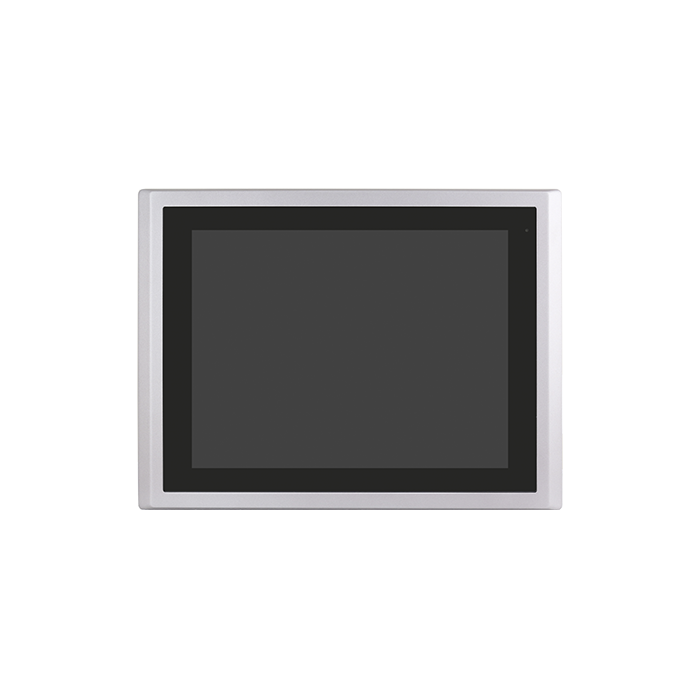

ViPAC-915P/R/G(H) 15” Intel 6th/7th Core i3/i5/i7 Panel PC

System

CPU

Intel 6th/7th Gen Core i3/i5/i7 processor

System Chipset

Intel H170

Memory

2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM

IO Port

4 x USB 3.0 type A

2 x RJ45 GbE LAN

1 x DB9 RS-232/422/485 default RS-232

1 x DB9 RS-232

1 x DB9 RS-422/485 default RS-485

1 x DB15 VGA

Rear side I/O port

1 x HDMI with Cover

1 x Line-out/Mic-in

1 x 2 pin Terminal block for external power switch

2 x LED indication for HDD/System

1 x System LED indication at front

1 x 3 pin TB Power connector

1 x Power Switch on/off

2 x 2W speaker at rear side

Option I/O

4 x USB 2.0 Type A via TB-5462 x DB9 COM port

1 x 8-bit GPIO (3 in/out/VCC/GND)

Storage Space

HDD

2 x 2.5” SATA HDD space, support RAID 0, 1, 5 (Easily Accessible storage design)

Expansion

1 x Full-size Mini PCIe on board(PCIe/USB/SATA,SATA by default)

Expansion Slot

1 x Half-size Mini PCIe on board (PCIe/USB, PCIe by default)

1 x SIM slot for option(Option wifi/BT/4G and antenna at rear side)

1 x PCIe x1 and 1 x PCIe x16 slot via TB-560E11E161 (default)

Display

Standard

High Brightness Optional

Display Type

15” TFT-LCD

15” TFT-LCD

Max. Resolution

1024 x 768

1024 x 768

Max. Color

16.2M

262K / 16.7M

Luminance (cd/m2)

300

1000

View Angle

176(H) / 176(V)

160(H) / 150(V)

Contrast

2000:1

800:1

Backlight Lifetime

70,000 hrs

50,000 hrs

Option

Auto Dimming

Auto Dimming

Touch Screen

Resistive Touch

Projected Capacitive Touch

Interface

USB

USB

Light Transmission(%)

Over 80%

Over 90%

Power

Power Input

DC 9~36V Power input, option AC power input

Mechanical

Construction

Aluminum die-casting front bezel and steel chassis Stainless front bezel (option)

Mounting

Panel Mount

IP Rating

Front Panel IP66

Dimensions

410 x 310 x 96.7 mm

Net Weight

6.3 kg

Environmental

Operating Temperature

0~50°C / -20~60°C (option)

Storage Temperature

-30~70°C

Humidity

10 to 95% @ 40°C, non- condensing

Certificate

CE / FCC Class A

Operating System Support

Windows embedded 7 Windows embedded 8.1 Windows 10 IoT Enterprise

ViPAC-915R

15" XGA Intel Core 6th Core i processor with H170 chipset, with Fan design panel PC, 2 x 260pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIe x1 and 1 x PCIe x16 slot, resistive touch window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

ViPAC-915P

15" XGA Intel Core 6th Core i processor with H170 chipset, with Fan design panel PC, 2 x 260pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIe x1 and 1 x PCIe x16 slot, projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.
