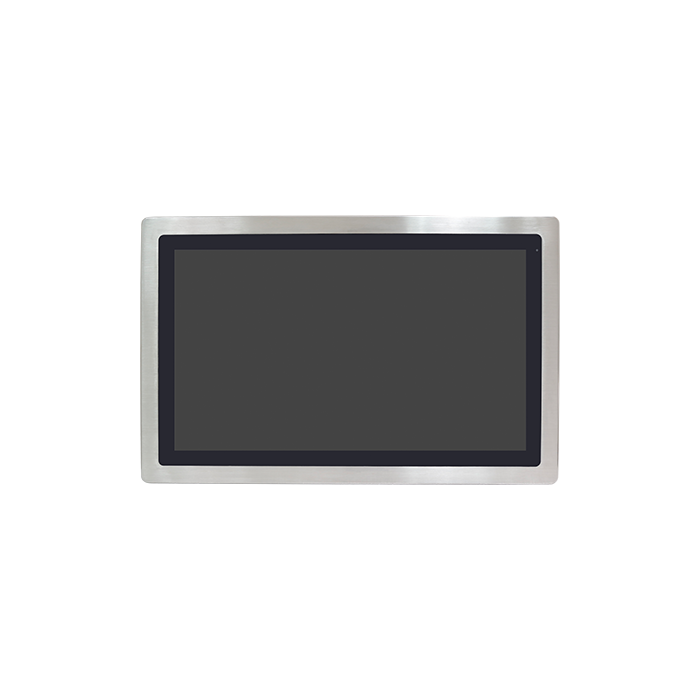

ViTAM-921BPR(H) 21” IP66 / IP69K Stainless Steel Panel PC

In stock

SKU:

ViTAM-921BPR

Brand: Aplex Technology Inc.

Aplex ViTAM-921BPR(H) 21” Stainless Steel Panel PC IP69K 8th Gen Intel M12 RFID Touchscreen

Key Features:

21” New Generation Stainless Steel Panel PC
8th Gen. Intel Core i3/i5 BGA type Processor
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Support Resistive Touch, Projected Capacitive Touch
Touch on/off Button on the Side Edge for Hygienic Cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting /
Space-saving VESA 75 x 75 mm Mounting

ViTAM-921BP
21" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter

ViTAM-921BR
21" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter

ViTAM-921BPH
21" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits

ViTAM-921BRH
21" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter, 1000 nits

Enquire Now

Enquire about this product:

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The 21" New Generation Stainless Steel Panel PC features a true flat front bezel design and a Grade 304 Stainless Steel Enclosure (Grade 316 available as an option). With an IP66/IP69K rating and M12 connectors, it ensures excellent protection against water and dust. The panel PC supports both Resistive Touch (for BR model) and Projected Capacitive Touch (for BP model). For convenient and hygienic cleaning, it includes a touch on/off button on the side edge.

The display options include a standard 21" TFT-LCD with 1920 x 1080 resolution and a high-brightness optional version. The high-brightness display offers a maximum luminance of 1000 cd/m², while the standard display provides 250 cd/m². The panel PC supports an 8th Gen. Intel Core i3/i5 BGA type processor, providing powerful performance for various applications.

The device supports versatile and ergonomic mounting options, including Yoke Mounting and space-saving VESA 75 x 75 mm Mounting. This makes it suitable for a wide range of industrial and commercial applications where durability, hygiene, and performance are essential considerations.

Key Features:

21” New Generation Stainless Steel Panel PC
8th Gen. Intel Core i3/i5 BGA type Processor
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Support Resistive Touch, Projected Capacitive Touch
Touch on/off Button on the Side Edge for Hygienic Cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting /
Space-saving VESA 75 x 75 mm Mounting

This product is listed in Industrial Automation

Specifications

System
CPU		Core i5-8365UE(Quad Core, 6 MB cache, 1.6GHz)Core i3-8145UE(Dual Core, 4 MB cache, 2.2GHz)
System Chipset		SoC
Memory		2 x 260-pin SO-DIMM up to 64GB DDR4 2400MHz
TPM		Firmware TPM (TPM 2.0 compliance)
IO Port
USB		1 x M12 8-pin for USB 2.0 with waterproof cover and chain
Serial / Parallel		1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
LAN		1 x M12 8-pin for LAN with waterproof cover and chain
Others		1 x Touch on/off button at the side
Power Connector		1 x M12 3-pin for DC power with waterproof cover and chain1 x Power switch on the rear
		2 x optional blank M12 connector with waterproof cover and chain
		for selecting two from the following options:
		2 x USB 2.0
Option		1 x USB 3.2 Gen.1
		1 x LAN
		1 x COM
		1 x CAN
Storage Space
HDD		1 x 2.5" SATA3 HDD (for option)
M.2		1 x B-key 2280 (SATA as default, PCI-e select by BIOS) for SSD
Expansion
		1 x Full size mSATA/mPCIe (mSATA as default, select by BIOS)
Expansion slot		1 x NANO-SIM
		1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module
RFID module		RFID module design on the front side (for option)
Display		Standard	High Brightness Optional
Display Type		21" TFT-LCD	21" TFT-LCD
Max. Resolution		1920 x 1080	1920 x 1080
Max. Color		16.7M	16.7M
Luminance (cd/m2)		250	1000
View Angle		178(H) /178(V)	178(H) /178(V)
Contrast		3000:1	3000:1
Backlight Lifetime		30,000 hrs	50,000 hrs
Touch Screen
Type	Resistive Touch (for BR model)Projected Capacitive (for BP model)
Interface	USB
Light Transmission(%)	Resistive Touch : 80%Projected Capacitive : 90%
Power
Power Input	DC 9~36V
Power Consumption	ViTAM-921BP: 40W
Mechanical
Construction	304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
Mounting	VESA mount 75 x 75, Yoke mount for optional
IP Rating	Total IP66/IP69K
Dimensions	571 x 362 x 55 mm
Net Weight	10 kg
Environmental
Operating Temperature	0~50°C
Storage Temperature	-30~70°C
Humidity	10 to 95% @ 40°C, non-condensing
Certificate	CE/FCC Class A
Operating System Support	Windows 10 IoT ENT LTSB, Windows 11
ViTAM-921BP	21" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
ViTAM-921BR	21" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter
ViTAM-921BPH	21" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits
ViTAM-921BRH	21" FHD IP66/IP69K stainless steel panel pc, Intel 8th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5 wire resistive touch window, 9~36V DC power input with Adapter, 1000 nits
