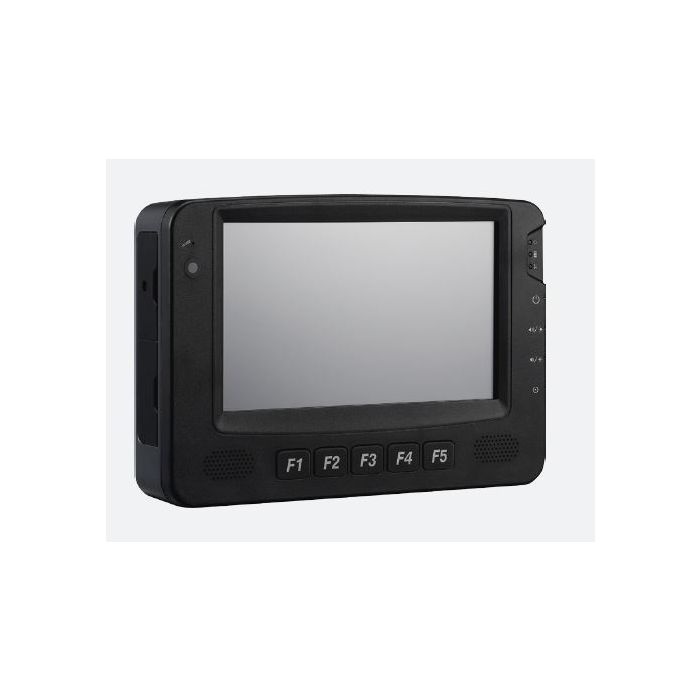

VMC110/111 - 7" ARM, AIO Vehicle Computer

In stock
SKU:
VMC110/111
Brand: Nexcom

7" Mobile Data Terminal with ARM® Cortex®-A9 platform


Enquire Now
Enquire about this product:

7" Mobile Data Terminal with ARM® Cortex®-A9 platform



·         7" 1024 x 600 TFT LCD monitor with resistor touch screen

·         ARM® Cortex®-A9 Dual Core Processor with 1GHz frequency

·         Compact and fanless design

·         On screen F1 ~ F5 programmable function keys

·         Linux and Android operating system

·         GPS/Wi-Fi/3G/LTE supported (Dead Reckoning included)

·         iButton & RFID for ID identification

·         Dual CAN Bus 2.0B

·         OBDII (ISO15765-4)/SAE J1939 protocol

·         Wide Range DC input from 9 ~ 36V

·         SW Utility for function demonstration on Android platform

·         CE/FCC/Emark


This product is listed in Mining, Transport, Nexcom, Mobile Computing
LCD Panel 7-inch TFT LCD Panel with LED Backlight 1024 x 600 pixels Brightness: 500 cd/m² (typical) Contrast ratio: 800:1 (typical) Viewing angle: 150(H), 145(V)
Touch Screen 4-wire resistant touch Anti-glare coating surface Transmission rate: 80% ± 3%
CPU & Chipset ARM® Cortex®-A9 Processor with 1GHz frequency Freescale Dual Core
Memory On-board DDR3L 2GB
Storage 1 x Micro SDHC Slot EMMC: 8G on board
Expansion 1 x half-size mini-PCIe (PCIe + USB) for WLAN 1 x full-size mini-PCIe (USB + UART) for WWAN OBDII: ISO15765-4 & SAE J1939 (Default: None, BOM optional) RFID (optional)
I/O Interface-Front F1 ~ F5 programmable function keys Light Sensor Internal Mic-in 2 x Built-in 2W speakers 3 x LED indicators (Power, Storage and WWAN)
I/O Interface-Lateral Right side
- 1 x SIM card slot
- 1 x Micro SD card slot
- 1 x USB 2.0 type A
- 1 x micro USB OTG for maintenance
Left side
- 1 x Power button
- 1 x Volume up/down
- 1 x Brightness up/down
- 1 x System reset button
I/O Interface-Rear/Bottom 1 x lockable power input with ignition 1 x RJ45 for LAN 2 x USB 2.0 Type A
- DB-15 connector
- Full RS-232
- RS-232/485
- CAN1 2.0B
DB-15 connector
- GPI x 3
Sink type: 5VDC TTL (default)
Source type: 3 ~ 28VDC
- GPO x 3
Sink type: 5VDC TTL (default), max current: 20mA
Source type: 3 ~
28VDC, max. current: 150mA
- GPS DR (Speed, direction, GND)
- CAN2 2.0B (Default) & (BOM optonal for OBD II (ISO 15765-4 & J1939))
- iButton
1 x Mic-in 1 x Line-out 3 x Antenna on I/O
- Rear: 1 x GPS, 1 x WWAN
- Bottom: 1 x GPS, 2 x WWAN
2 x Antenna on housing for Wi-Fi
Mechanical Cooling System: Fanless Enclosure: Plastic PC/ABS + Metal heat-sink Mounting: VESA 75/100 & Desktop mounting Ingress Protection: Front panel IP54 Dimension: 212.9mm (W) x 144.97mm (H) x 40mm (D)(8.4" x 5.7" x 1.6") Weight: 1.3kg
Power Management 9V~36V DC input Selectable boot-up & shut-down voltage Ignition: 8-level delay time on/off Reverse protection/over-voltage protection/low-voltage protection Wake up by SMS/RTC/ignition
Operating System Linux YOCTO 2.0 by Request Android 5.1
Environment Operating temperatures: Ambient with air -20°C to 70°C Storage temperatures: -30°C to 80°C Relative humidity: 10% to 90% (non-condensing) Vibration
Vibration test: IEC 60068-2-64, 2.5G
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24
Shock
MIL-STD-810G, 516.6 Procedure 1, trucks and semi-trailers=40g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75g
Certification CE/FCC class B/E-Mark
