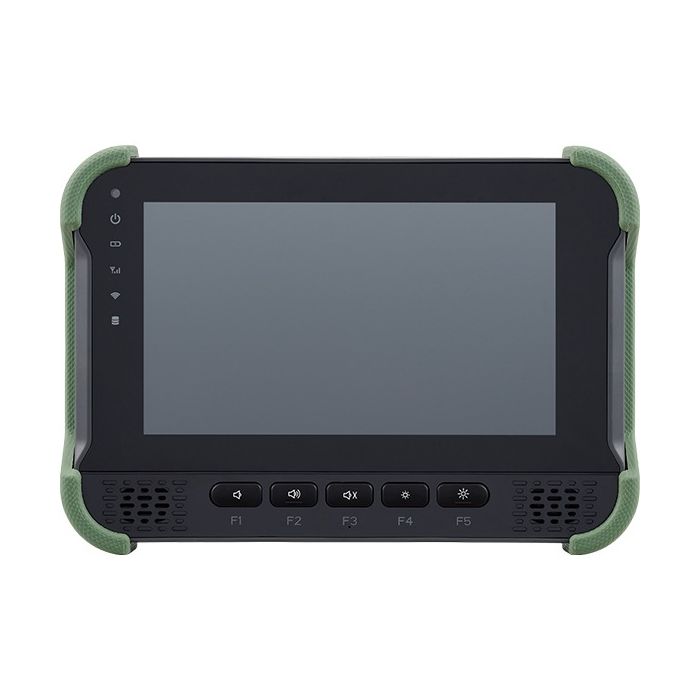

VMC2030 8" Rugged Vehicle Mount Computer with Atom x7433RE

Panel

• LCD panel
• 8-inch TFT LCD panel
• 1280x720 HD resolution
• Brightness 1000cd/m² typical
• Viewing angle 170° H, 170° V
• Contrast ratio 900:1 typical

Touchscreen

• Projected capacitive
• Anti-glare coating surface
• Glove-friendly 3mm touchscreen
• Transmission rate 80 ± 3 percent

Processor

• Intel Atom x7433RE processor, TDP 9W

Memory

• 1 x DDR5 4800 SO DIMM, in-band ECC, default 8GB, up to 16GB

Display Interface

• 1 x HDMI 2.0b, up to 3840x2160 at 60Hz

Storage

• 1 x M.2 Key M 2242 SATA 3.0, PCIe 3.0 x1
• 1 x mSATA occupies one Mini PCIe slot

Expansion Slot

• 1 x Full size Mini PCIe USB 2.0, PCIe 3.0 or SATA 3.0
• 1 x M.2 Key E 2230 USB 2.0, PCIe 3.0 x2, optional BOM version USB 2.0, PCIe 3.0, PCIe 3.0
• 1 x M.2 Key B 3042 or 3050 or 3052 USB 2.0, USB 3.2 Gen 2 for LTE or 5G NR with two external nano SIM slots

Sensor

• Default u blox NEO M9N GNSS for GPS, GLONASS, QZSS, Galileo, Beidou
• Optional M9V with dead reckoning
• G Sensor and gyroscope

System Capabilities

• TPM 2.0 Infineon SLB 9672XU2.0 FW15.23

I/O Interface Front

• 5 x programmable function keys F1 to F5 or volume, brightness and mute controls
• 1 x Light sensor
• 5 x LED indicator power, battery, WWAN, WLAN, storage
• 2 x Built in 2W speaker
• 1 x Built in microphone

I/O Interface Side

• Left side
  • 1 x System reset button with cover
  • 2 x nano SIM slot with cover
• Right side
  • 1 x Power button
  • 1 x USB 3.2 Gen 2 Type A with cover
  • 1 x Mic in and 1 x Line out with cover

I/O Interface Rear

• 1 x COM port RS 232 full with 5VDC or 12VDC
• 1 x 5 pin M12 A coded power
• 1 x 8 pin 2.5GbE M12 X coded
• 1 x 8 pin M12 A coded for 2 x USB 2.0
• 1 x HDMI
• 1 x 8 pin M12 A coded MULTI PORT1 with 2 x GPI, 2 x GPO, 1 x Isolated CAN FD
• 1 x 12 pin M12 A coded MULTI PORT2 with 1 x RS 232 Tx Rx, 1 x RS 232 Tx Rx or 422 or 485, PWM speed plus direction plus GND, optional 4 x composite video input or CAN 06
• 4 x SMA for WWAN
• 2 x RP SMA for WLAN
• 1 x SMA for GNSS

I/O Interface Internal

• RFID module optional, occupies one USB 2.0
• 13.56MHz RFID or contactless standard protocols
• Compatible with ISO 14443 Type A, MIFARE Classic, ISO 15693

Mechanical

• Fanless cooling
• Plastic enclosure
• VESA 75 mounting
• Complete IP65
• Dimensions 250.0mm W x 179.0mm H x 67.5mm D
• Weight 2.66kg

Power Management

• DC 9V to 60V input
• Reverse protection, overvoltage protection, and under voltage protection
• Ignition on or off control and programmable delay timing
• Wake by LAN, SMS, RTC and ignition

Environment

• Operating temperature -30°C to 60°C ambient with air
• Storage temperature -40°C to 80°C
• Relative humidity 10 to 90 percent non-condensing
• Vibration random 2g at 5Hz to 500Hz in operation
• Vibration MIL STD 810H 514.8 Procedure 1 Category 4 operating
• Storage MIL STD 810H 514.8E Procedure 1 Category 24
• IEC 60068 2 6 sinusoidal 5Hz to 500MHz 2G
• Shock
  • MIL STD 810H Method 516.8 Procedure I trucks and semi trailers 40g
  • Crash hazard MIL STD 810H Method 516.8 Procedure V ground equipment 75g
  • IEC 60068 2 27 operating half sine 20G 11ms, non operating half sine 50G 11ms

Operating System

• Windows 11
• Windows 10 64-bit
• Linux

Certifications

• CE
• FCC Class B
• E13 mark
