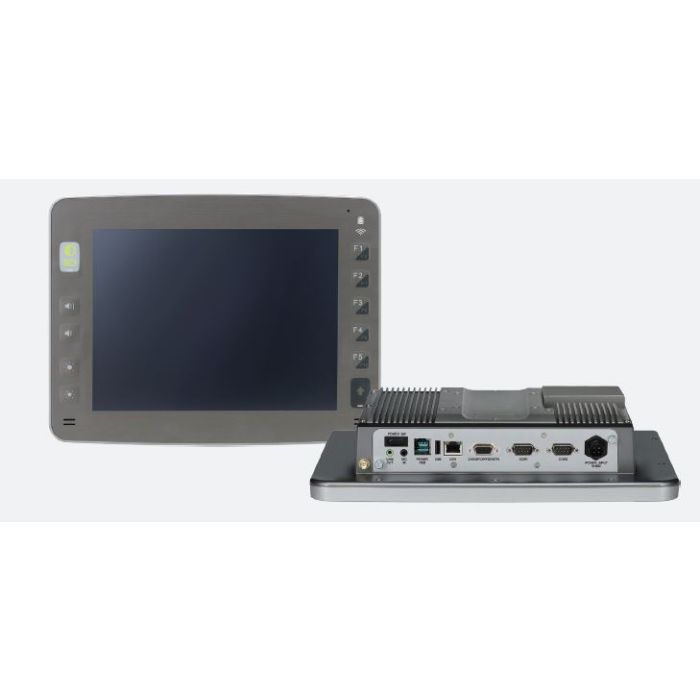

VMC3020 10.4" Rugged Vehicle Mount Computer

In stock
SKU:
VMC3020-2A01
Brand: Nexcom

Intel Atom® x5-E3930 processor, Touchscreen and IP65

Key Features:

  • 10.4" XGA TFT LCD monitor with 5-wire resistive touch
  • Aluminum die-casting and fanless design
  • Built-in Intel Atom® x5-E3930 processor, 1.8GHz
  • Automatic/manual brightness control
  • On-screen F1 ~ F10 programmable function keys
  • Powered USB and COM (5V/12V, 1.5A) for accessories
  • Military standards for vibration and shock
  • iButton and RFID for ID identification
  • Wide range DC input from 9V ~ 60V DC in
  • Sunlight readable capability: 1,200nits LCD brightness
  • Operating system: Windows and Linux
  • CE/FCC/E-Mark

Enquire Now
Enquire about this product:

VMC 3020, a 10.4-inch all-in-one robust vehicle mount computer, is designed for the warehouses, logistics, and material handling market. It implements the latest Intel Atom® x5-E3930 processor (codename Apollo Lake) and can work on Windows and Linux for different OS. markets. To work well in the special warehouse application, VMC 3020 is specially designed to power I/O (up to 12V DC out) to power on printers, and scanners… 1,200 nits brightness is for sunlight readable purposes.


This product is listed in Industrial Automation, Mining, Transport, Nexcom
LCD Panel
  • 10.4-inch TFT LCD panel with LED backlight
  • 1024 x 768 pixels (XGA)
  • Brightness: 1200 cd/m² (typical)
  • Viewing angle: 170° (H):170°(V)
  • Contrast ratio: 900:1 (typical)
Touch Screen Sensor
  • 5-wire resistant touch
  • Anti-glare coating surface
  • Transmission rate: 81 ± 3%
CPU & Chipset
  • Intel Atom® x5-E3930 processor dual core 1.8GHz
Memory
  • One 204-pin DDR3L 1600MHz SO-DIMM slot (default: 4GB)
Expandable Storage
  • 1 x CFast
  • 1 x 2.5" SATA SSD bay
Expansion
  • 1 x Half size mini-PCIe socket (USB 2.0, PCIe 2.0)
  • 1 x Full size mini-PCIe socket (USB 2.0) for LTE module with 1 x internal Mini-SIM
  • 1 x M.2 2230 Key E socket (USB 2.0, PCIe 2.0, SDIO 3.0, UART) for Wi-Fi module
I/O Interface-Front
  • 5 x on screen display buttons
    - Power on/off
    - Volume control (+/-)
    - Brightness control (+/-)
  • Light sensor
  • 4 x LED indicators (power, WLAN, shift, storage)
  • F1 ~ F10 programmable function keys
  • 2 x Built-in 2W speakers
I/O Interface-Lateral
  • Right Side:
    - 1 x CFast card slot
    - System reset button
    - USB 2.0 host type A connector
  • Left Side:
    - 1 x antenna for WWAN
I/O Interface-Bottom
  • 1 x Power Switch (ATX mode)
  • Lockable power connector (power, ignition, ground)
  • 2 x RS232 (full signals, RI, 0V, 5V/1.5A, 12V/1.5A)
  • 1 x DB15
    - 1 x Isolated CAN 2.0B
    - 1 x iButton
    - 1 x RFID (12V/1A. 5V/1A, 4pin)
    - 1 x Optional RS232 Tx/Rx (share with GPS UART)
    - 2 x GPI
        Sink type: 5VDC TTL (default)
        Source type: 3 ~ 28VDC
    - 2 x GPO
        Sink type: 5VDC TTL (default), max current: 20mA
        Source type: 3 ~ 28VDC, max current: 150mA
  • 1 x Powered USB (5V/1.5A, 12V/1.5A)
  • 1 x USB Type A (5V/1A)
  • 1 x Mic-in, 1 x Line-out
  • 1 x Antenna for GPS
I/O Interface-Top
  • 2 x Antenna for Wi-Fi
Mechanical
  • Cooling system: Fanless
  • Enclosure: Aluminum die casting
  • Mounting: VESA 75/100 & desktop mounting
  • Ingress protection: front panel IP65
  • Dimension: 289.98mm(W) x 229.97mm(H) x 68.70mm(D)
  • Weight: 3kg, 6.61lb
Power Management
  • 9V~60V DC in
  • Reverse protection/over-voltage protection/under voltage protection
  • Ignition On/Off control & programmable On/Off delay timing
  • Wake up by SMS, RTC, and ignition
Operating System
  • Windows 10, Linux
Environment
  • Operating temperatures: Ambient with air -30°C to 60°C
  • Storage temperatures: -30°C to 70°C
  • Relative humidity: 10% to 90% (non-condensing)
  • Vibration
    - Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
    - Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24
  • Shock
    - Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers= 20g
    - Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment= 75g
Standards/Certifications
  • CE/FCC class B/E13
