VMC4511-K

End of Life
SKU: VMC4511-K EOL

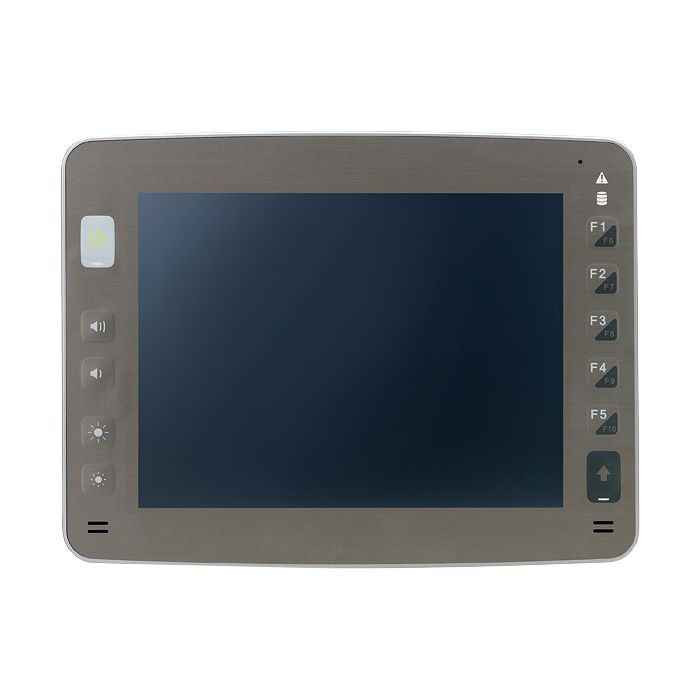

12.1" Rugged Vehicle Mount Computer with Intel® Core™ i, Touch Screen and IP65

Datasheet

Description

12.1" Rugged Vehicle Mount Computer with Intel® Core™ i, Touch Screen and IP65



·         12.1" XGA TFT LCD monitor with 5-wire resistive

·         Compact and fanless design

·         Built-in Intel® Core™ i7-2610UE processor

·         Automatic/manual brightness control

·         On screen F1 ~ F10 programmable function keys

·         GPS, WLAN, and WWAN supported

·         CANBus 2.0B, and OBDII for car diagnostic

·         Robust design with Die-cast aluminum

·         All enclosure compliant with IP65

·         Wide range DC input from 9 ~ 36V

·         Sunlight readable solution with 1300 nits display

·         Military test standard for vibration and shock

·         Operating system: Windows & Linux

Download

Product Data Sheet
User Manual

More Information

Specifications
General Cooling System: FanlessEnclosure: Aluminum die castingMounting: Support VESA 75/100, Panel and stand mountingThree SMA Type antenna connectors of BT/Wi-Fi/WWANPower Input: 9 ~ 36VDC input with IgnitionPower Consumption: 26W typicalIngress Protection: IP65Dimension: 340mm (W) x 262mm (H) x 75.1mm (D) (13.38" x 10.31" x 2.96")Weight: 3.5Kg, 7.72Lb
LCD Panel 12.1-inch TFT LCD panel with LED backlight1024 x 768 pixels (XGA)Brightness: 1300 cd/m² (typical)Contrast ratio: 600:1 (typical)
Touch Screen Sensor 5-wire resistant touchAnti-glare coating surfaceTransmission rate: 81 ± 3%
CPU & Chipset Intel® Core™ i7-2610UEIntel® QM67 PCH chipset
Memory One 204-pin DDR3 1333MHz SO-DIMM slot (up to 4GB)
Expandable Storage 1 x CFast1 x 2.5" SATA SSD bay
Expansion 2 x mini-PCIe socket (PCIe + USB) for WLAN/mSATA option1 x mini-PCIe socket (USB) x 1 for WWAN option2 x OBDII module with J1939 for option
I/O Interface-Front On screen display buttons x 5
Power on/off
Volume control (+/-)
Brightness control (+/-)Light sensor4 x LED indicators (Power on/off, Storage, Warning, Shift)F1 ~ F10 functions key2 x Built-in 2W speakers
I/O Interface-Lateral 1 x CFast card slotSystem reset buttonUSB 2.0 host type A connector
I/O Interface-Bottom 1 x GPS Antenna SMA connector(On housing)1 x Mic-in, 1 x Line out2 x USB 2.0/Ethernet (Host)2 x LAN interface for 10/100/1000Base-T1 x 9 ~ 36V, 3-pin (Power, Ignition, Ground), 10A1 x Circle Type 22-pin Multi-I/O Connector
1 x COM (optional RS-232/422/485; default RS-232)
1 x COM (RS-232 Tx/Rx)
1 x COM RS-232 (with either 0, 5 or 12V @ 600mA on pin9)1 x Circle Type 10-pin CONN
1 x OBDII module (option)
2 x DI and 2 x DO
1 x Circle Type 6-pin CONN for 5V/12VDC-out
Communication Module 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou)1 x WLAN and Bluetooth combo module for optional1 x WWAN module for optional
Power Management Selectable boot-up & shut-down voltage for low power protectionHW design ready for 8-level delay time on/off at user's self configurationPower on/off ignition, software detectableSupport S4 suspend mode; wake on RTC/SMS
Environment Operating temperatures: Ambient with air -30°C to 60°CStorage temperatures: -30°C to 70°CRelative humidity: 10% to 90% (non-condensing)Vibration (random): 2g @5 ~ 500Hz
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers=20g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75g
Operating System WES2009WES 7EWin7 Pro Embedded
Standards/Certifications CE approval, FCC Class BCE EN 60950-1 LVD
