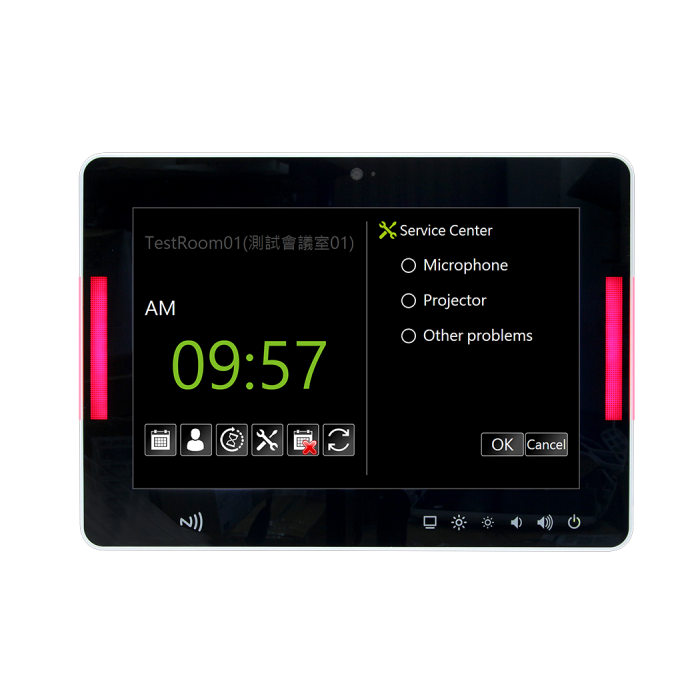

VNS-10WR2 10.1" Ultra Slim Panel PC with Rockchip RK3568
10.1" Ultra Slim Panel PC with Rockchip RK3568
Key Features:
- 10.1" 1280 x 800 Ultra Slim Panel PC with PCAP touch
- Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
- 4GB LPDDR4 / 64GB eMMC
- True colour LED indicating light bar
- Fanless operation from 0°C ~ 40°C
- Wide voltage input DC 12~24V and support Powered LAN (802.3at)
Description
Product Overview
The Avalue VNS-10WR2 is a 10.1-inch ultra-slim industrial panel PC designed for embedded and commercial applications that require performance, reliability and low power consumption. Powered by a quad-core ARM processor, it combines a bright projected-capacitive touch display, fanless design, wide voltage input and optional Power-over-Ethernet (PoE) support. With its slim profile, IP65 front protection and flexible mounting options, it is ideal for smart kiosks, HMIs, corridor displays and factory automation environments.
Key Features
Compact Performance
- Rockchip RK3568 ARM Cortex-A55 quad-core processor up to 2.0 GHz
- 4 GB LPDDR4 memory and 64 GB eMMC storage
- Supports Android 11 and Debian 11 operating systems
- Integrated Mali-G52 GPU with hardware-accelerated 3D graphics
Rugged and Reliable Design
- Fanless architecture for silent and maintenance-free operation
- Wide DC input range from 12 V to 24 V with optional PoE (802.3at) power input
- Front panel rated IP65 for dust and water resistance
- VESA 75 × 75 mm mounting compatible
Display and Touch Interface
- 10.1-inch TFT display with 1280 × 800 resolution
- Brightness 350 cd/m², contrast ratio 800:1 and wide 85° viewing angles
- Projected-capacitive multi-touch supporting up to 10-point input
Power and Connectivity
- External I/O includes two USB 3.0 ports, one Gigabit LAN port, audio jack and RS-232/RS-485 communication via RJ45
- Internal expansion includes M.2 Key B (3042) slot for SSD or LTE module, micro-SIM slot and optional Wi-Fi/Bluetooth
- Wide 12 V–24 V input range with lockable DC connector
Certifications and Compliance
- CE and FCC Class B certified
- Designed for 24/7 operation in industrial and embedded environments
- Operating temperature range from 0 °C to 40 °C and storage from −10 °C to 60 °C
Download
More Information
| Brand | Avalue Technology Inc | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
VNS-10WR2-CW49-1R
VNS-10WR2-4G/64G-Android 11
