VTC1021-BHIoT/CHIoT Atom E3940 Fanless In-Vehicle Computer PoE
View larger image
VTC1021-BHIoT/CHIoT Atom E3940 Fanless In-Vehicle Computer PoE
VTC 1021-BHIoT/CHIoT Intel Atom x5- E3940 Fanless In-Vehicle Computer w/Hailo AI Edge Telematics Solution, PoE Enabled (CHIoT)
Key Features:
Intel Atom x5-E3940 processor quad core 1.6GHz Built-in Hailo AI module Built-in U-blox M8N GPS, optional dead reckoning support Built-in CAN 2.0B. optional OBD2 SAE J1708/SAE J1939 2 x PoE support, total 60W (VTC 1021-CHIoT only) 2 x RJ45 10/100/1000 Fast Ethernet with LED 3 x DI and 3 x DO support Smart power management with ignition on/off delay via software control and low voltage protection Variety of wireless communication options Certified by CE/FCC/E13 mark
Description
The VTC 1021-BHIoT/CHIoT has a quad-core 1.6GHz Intel Atom x5-E3940 processor with powerful graphics and multimedia enhancement. The VTC 1021-BHIoT/CHIoT is a rugged, fanless, 1 DIN compact inclosure designed for vehicles with limited space for a computer system. For vehicle diagnostics and driver behaviour management, there's an onboard CAN 2.0B and an optional OBD interface (SAE J1939). GPS/Glonass/QZSS/Galileo/Beidou are all supported by an advanced GPS receiver, and optional dead reckoning is also available. WLAN and WWAN wireless data and voice connectivity are available on the VTC 1021-BHIoT/CHIoT. Its dual SIM external access design makes it easy for users to access their SIM cards.
Key Features:
Intel Atom x5-E3940 processor quad core 1.6GHz
Built-in Hailo AI module
Built-in U-blox M8N GPS, optional dead reckoning support
Built-in CAN 2.0B. optional OBD2 SAE J1708/SAE J1939
2 x PoE support, total 60W (VTC 1021-CHIoT only)
2 x RJ45 10/100/1000 Fast Ethernet with LED
3 x DI and 3 x DO support
Smart power management with ignition on/off delay via software control and low voltage protection
Variety of wireless communication options
Certified by CE/FCC/E13 mark
More Information
Brand
Nexcom
Specifications
CPU
Intel Atom® processor Apollo Lake E3940, 1.60GHz
Memory
1 x 204-pin DDR3L SO-DIMM socket support 1866MHz up to 8GB. Default 4GB
Storage
1 x 2.5” SATA 3.0 1 x mSATA for full-size mini-PCIe socket
Hailo AI acceleration module
Form factor: mini-PCIe (full size) Interface: PCIe Gen3 x 1 Performance: 13 tops
Expansion
1 x Full size mini-PCIe socket (USB 2.0 + PCIe + mSATA) 1 x Full size mini-PCIe socket (USB 2.0 + PCIe) with Hailo module 1 x Full size mini-PCIe socket (USB 2.0)
Function
1 x U-blox NEO-M8N onboard (support GPS/Glonass/QZSS/Galileo/Beidou) Built-in G-sensor TPM 2.0
I/O Interface-Front
1 x Power button with LED 4 x LED for WWAN, WLAN, SSD, GPS 1 x Line-out/MIC-in 1 x Reset button 1 x DB9 for fully RS232 2 x Type A USB 2.0 compliant host, supporting system boot up 2 x External accessible SIM card socket (selectable) with cover 1 x DB9 for expansion port (option) 2 x RJ45 PoE (including 2 x PoE LED light, VTC1021-CHIoT only)

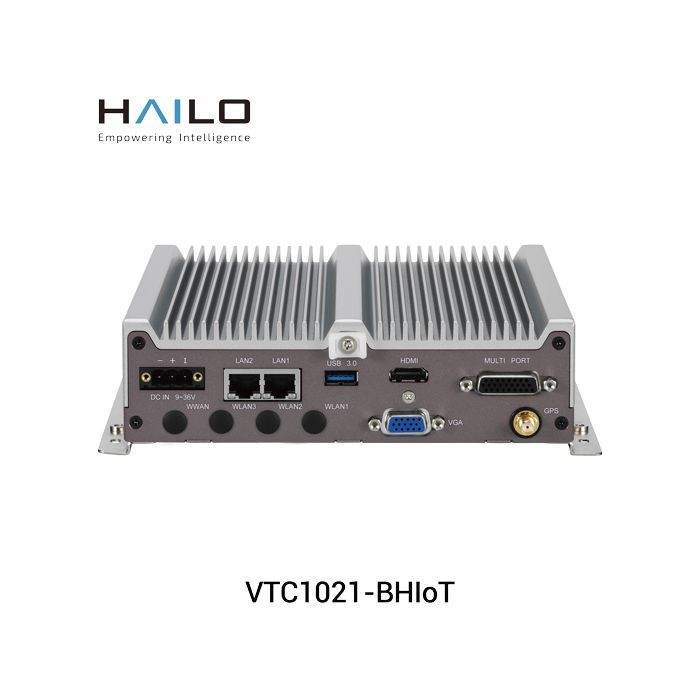

I/O Interface-Rear
1 x Phoenix connector for power (9~36VDC)/GND/ignition input 1 x Type A USB 3.0 compliant host, supporting system boot up 2 x RJ45 10/100/1000 fast Ethernet with LED 1 x DB15 VGA, resolution up to 1920 x 1080 @60Hz 1 x HDMI port, resolution up to 3840 x 2160 @30Hz 1 x DB26 port 5 x Antenna holes for GPS/WWAN/WLAN
Power Management
Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/S4 suspend mode
Operating System
Windows 10 Linux YOCTO (by request)
Dimensions
180 mm (W) x 180 mm (D) x 50 mm (H) (7.09” x 7.09” x 1.97”) Weight: 1.7 kg
Environment
Temperature Storage temperatures Humidity: IEC60068-2-3, Damp Heat Steady State Test, 40C, 95%, 48Hrs Vibration: IEC 60068-2-64, 2G for SSD or 0.5G for HDD Shock
Certifications
CE approval FCC Class A E13 Mark
