VTC210 Fanless In-Vehicle Computer with ARM Quad-core Cortex-A53

In stock
Brand: Nexcom

Fanless In-Vehicle Computer with ARM Quad-core Cortex-A53


Lock You have to Login or Register to download this file
Enquire Now
Enquire about this product

The VTC 210 has a quad-core ARM Cortex-A53 processor with advanced graphics and multimedia capabilities. The VTC 210 is a rugged, fanless, and compact computer inclosure designed for vehicles with limited space. It ships with an advanced GPS receiver that supports GPS/Glonass/QZSS/Galileo/Beidou by default. With an onboard micro-SIM slot, the VTC 210 offers WLAN and WWAN wireless data and voice connectivity.

VTC 210 provides SDK control API such as integration modules power/reset on/off, WDT control, ignition delay timer, and so on for better vehicle protection and control. The VTC 210 is designed to meet a variety of telematics applications, including infotainment, fleet management, dispatching, and mobile video surveillance.

Key Features:

  • Built-in Rockchip RK3328 Quad-core ARM® Cortex®-A53 processor
  • up to 1.5GHz
  • Built-in u-Blox NEO-M8N GPS
  • 1 x DB9 for full RS232
  • 1 x HDMI, (BOM option VGA + Audio)
  • WLAN module option (USB interface)
  • 1 x M.2 Key B for WWAN with 1 x internal Micro SIM slot
  • SDK for power/reset/WDT/IGN/UVP threshold/GNSS on/off control
  • Wide operating temperature 0°C ~ 70°C
  • Wide range DC input from 9V ~ 36V
  • Certified by CE/FCC/E13

This product is listed in Industries, Partners, Industrial Automation, Mining, Transport, Nexcom, Mobile Computing, Vehicle PCs
CPU Rockchip RK3328 Quad-core ARM® Cortex®-A53 processor up to 1.5GHz
Memory DDR4 2GB onboard (BOM option 4GB)
Storage eMMC 16GB onboard1 x Internal microSD slot
Expansion 1 x M.2 3042 Key B (USB 2.0, USB 3.0) for WWAN with 1 x internal Micro SIM1 x USB 2.0 wafer for Wi-Fi module
GNSS and Onboard Sensor 1 x Default u-Blox NEO-M8N GNSS module for GPS/GLONASS/QZSS/Galileo/BeidouG Sensor and gyroscope

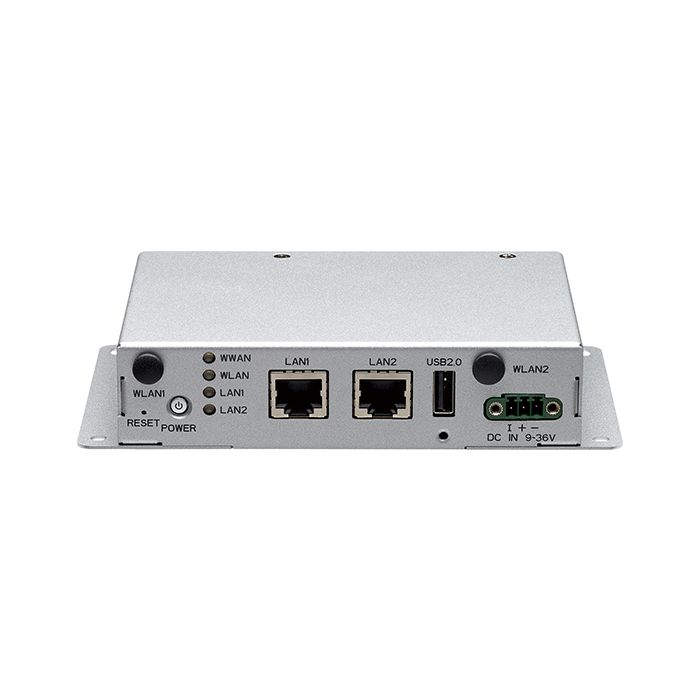

I/O Interface-Front

1 x Power button with LED

4 x LED for WWAN, WLAN, LAN1, LAN2

2 x RJ45 10/100/1000 fast Ethernet with LED

1 x USB 2.0 type A1 x Reset button

2 x Antenna holes for WLAN

1 x Phoenix connector for power (9 ~ 36VDC)/GND/ignition input

I/O Interface-Rear

1 x HDMI 2.0a for 4K@60Hz output (BOM option 2nd display, 1 x VGA output + 1 x audio jack output (L/R))

3 x Antenna holes for WWAN and GNSS

Power Management System power on/off by ignition signal
Operating System Linux
Dimensions 130mm (W) x 100mm (D) x 31mm (H)
Weight 0.5kg

Operating temperatures: 0°C to 70°C

Storage temperatures: -40°C to 85°C

Relative humidity: 90% (non-condensing)

Vibration & Shock

- Operating: MIL-STD-810H, Method 514.8, Category 4, common carrier US highway truck vibration exposure
- Storage: MIL-STD-810H, Method 514.8, Category 24, minimum integrity test

- Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g
- Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g


CE approval

FCC Class A

E13 Mark
