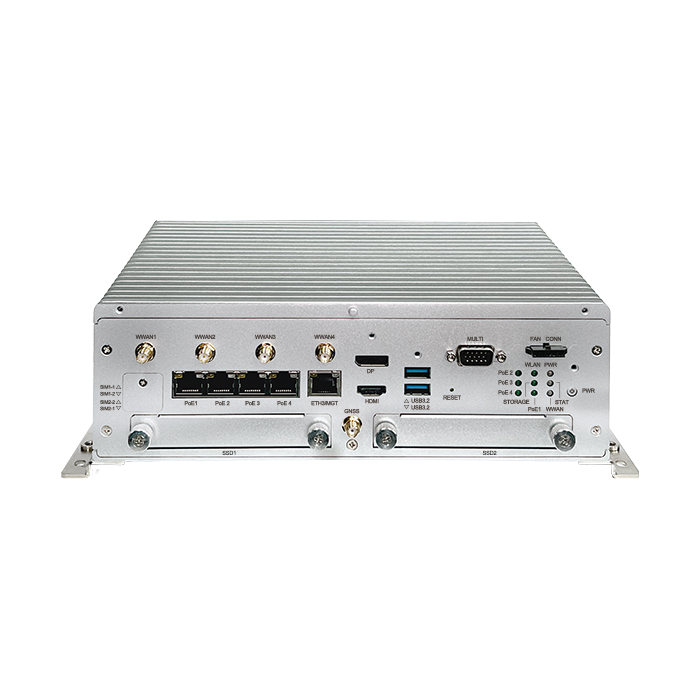

VTC7270-C8 GEN 12/13 Fanless 8 x POE AI Vehicle Computer

The VTC 7270-C8 is an in-vehicle telematics computer that uses artificial intelligence and has 30% more processing capacity than its predecessor thanks to its Intel® 12/13th Gen processor. Any in-vehicle application, including fleet management, logistics/AMR, ITS, construction, ANPR, and security surveillance of public transit, among others, can be satisfied by its 10-year lifespan support.

The VTC 7270-C8 can be installed extensively in small spaces, withstand harsh environments, and have a 24/7 operating time with the help of its compact, tough, and fanless design. The VTC 7270-C8 is a complex AI-aided telemetric computer that also includes a variety of peripherals, such as triple displays, a wide-range 9–36VDC with IGN control, 2.5GbE, 6 USB 3.2, 2 isolation CAN FD, 4 serial ports, NVMe storage, and 5 extension slots.

The user can set up LTE/5G modems, Wi-Fi 5/6 modules, and one or two Hailo AI accelerators (26TOPS) to function as the edge AI and implement AI services that collaborate with cloud SaaS. Additionally, the VTC 7270-C8 complies with MIL-STD-810H military standards for vibration and shock resistance and can work in harsh environments with temperatures ranging from -40°C to 65°C. The VTC 7270-C8 complies with CE/FCC classA, UKCA, and Emark regulations in terms of regulatory compliance. (E13).

Key Features:

• Powered by 12/13th Gen Intel® Core™ i with DDR5, excellent memory bandwidth, lower latency
• Rich I/Os, 8 x 2.5GbE PoE+, 1 x GbE, 6 x USB 3.2, 2 x CAN FD & 4 x Serials
• Up to 4 WWAN/WLAN combinations for mobile router Applications
• 2 x 2.5” SSD, 1 x NVMe ultra-speed SSD for data integrity
• Up to two Hailo AI accelerators (26TOPS workload each) in option
• 9~36V DC-IN with ignition control & OCP/OVP
• Wide range operating temperature of -40°C~65°C (fanless@35W CPU)
• Military standard for anti-vibration/shock
• CE/FCC, UKCA, Emark Certified
