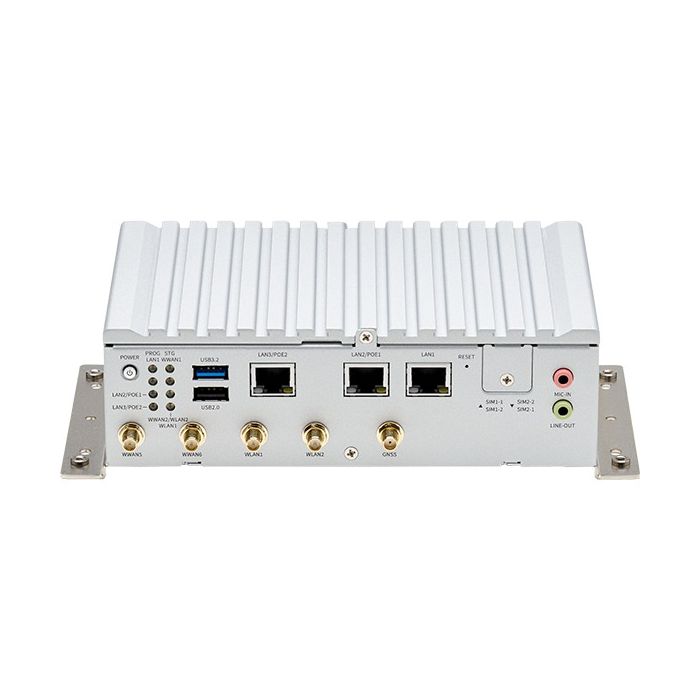

VTC1040/-C2 Fanless In-Vehicle Computer with Atom x7213RE
Fanless In-Vehicle Computer powered by Intel Atom x7213RE Processor
Key Features:
- Compact and fanless design
- 1 x Built-in CAN FD
- u-blox NEO-M9N onboard
- 4 x SIM card for WWAN modules
- Smart power management with ignition on/off delay via software control and low voltage protection
- 2 x PoE 802.3af/at, up to total 30W (VTC1040-C2)
- Certified by CE/FCC/E13 mark
Description
Product Overview
The NEXCOM VTC1040 and VTC1040-C2 are compact, vehicle-grade in-vehicle computers designed for telematics, fleet management, passenger information and industrial mobile applications. They combine efficient compute performance with wide power input support, ruggedised design and rich I/O options to serve in buses, trucks, service vehicles, logistics fleets and mobile control systems. With flexible display support, communication interfaces and expansion options, these systems provide reliable on-board computing for navigation, diagnostics, data logging, remote management and human-machine interface tasks.
Key Features
Efficient and Responsive Performance
-
Efficient Intel Atom processor series selected for vehicle embedded use
-
Balanced compute capability for telematics, route information, diagnostics and HMI tasks
-
Memory and storage options sized for consistent performance in noise-prone mobile environments
Rugged, Vehicle-Ready Design
-
Compact enclosure built for mounting in dashboards, consoles or control panels
-
Wide operating temperature range to handle hot and cold vehicle environments
-
Designed to withstand vibration and shock encountered in buses, trucks and industrial vehicles
Power and Connectivity
-
Wide DC power input range suited to vehicle electrical systems, supporting power management functions
-
Multiple Ethernet ports for network communication with sensors, gateways and vehicle systems
-
Multiple serial communication ports suitable for legacy equipment and sensor integration
-
USB ports for peripherals, storage devices and human interface devices
-
CAN bus connectivity for vehicle diagnostics and communication with onboard systems
-
Digital I/O for system status and interface control
Display and Expansion
-
Support for multiple display outputs for driver or passenger information screens
-
HDMI output for local display interfaces, depending on configuration
-
USB, serial and network ports to support cameras, sensors, scanners and data devices
Wireless and Positioning Support
-
Optional support for cellular connectivit,y such as LTE or 5G for remote management and telemetry
-
GNSS support for real-time location tracking and navigation applications
-
Dual SIM capability for carrier redundancy and enhanced network uptime
Applications and Use Cases
The VTC-1040 and VTC-1040-C2 are suitable for:
-
Fleet telematics and remote diagnostics
-
Passenger information and route display systems
-
Vehicle control interfaces and operator panels
-
On-board data logging and fleet analytics
-
Mobile signage or driver HMI
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
VTC 1040 (P/N: 10V00104000X0)
Intel Atom® x7213RE processor, 8GB DDR5 SO-DIMM, u-blox M9N GPS onboard, 1 x VGA, 1 x HDMI®, 3 x LAN, 2 x Full RS-232/422/485, 2 x RS-232 (Tx/Rx), 1 x CAN FD, 4 x DI, 4 x DO, 1 x USB 3.2, 1 x USB 2.0, 1 x Mic in, 1 x Line out
VTC 1040-C2 (P/N: 10V00104001X0)
Intel Atom® x7213RE processor, 8GB DDR5 SO-DIMM, u-blox M9N GPS onboard, 1 x VGA, 1 x HDMI®, 1 x LAN, 2 x PoE, 2 x Full RS-232/422/485, 2 x RS-232 (Tx/Rx), 1 x CAN FD, 4 x DI, 4 x DO, 1 x USB 3.2, 1 x USB 2.0, 1 x Mic in, 1 x Line out
