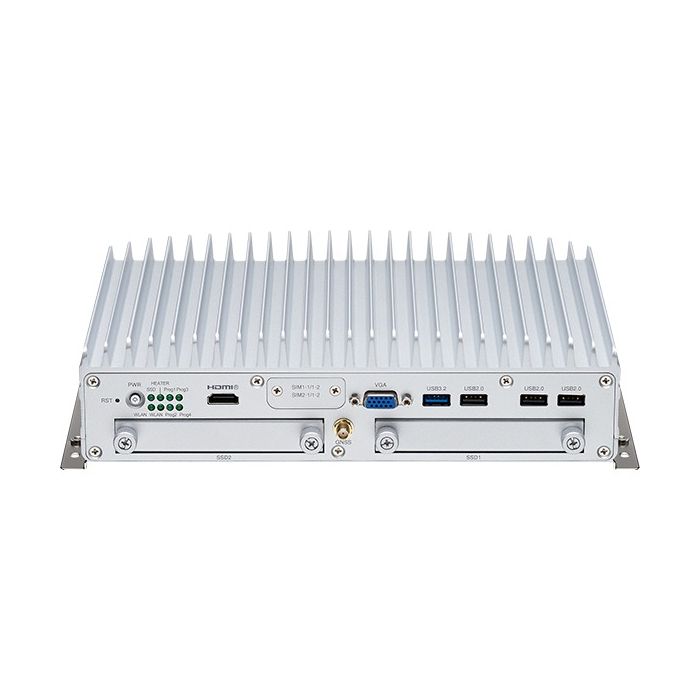

VTC7280-7/-5 Fanless AI Powered Vehicle Computer
Fanless AI-Powered Vehicle Computer Powered by Intel Core Ultra Processor (Series 1)
Key Features:
- Powered by Intel® CoreTM Ultra processor, up to 26 TOPS AI computing power
- Fanless, compact and rugged design
- 2 x 2.5GbE
- Expandable to 2 x WWAN and 2 x WLAN for enhanced mobile router performance
- Support 100/1000Base-T1 Automotive Ethernet (optional)
- 2 x 2.5” SSD, 1 x NVMe SSD (PCIe 4.0 x4) for data integrity
- DC 9V~36V input with ignition control & OCP/OVP
- Wide range operating temperature of -40°C~60°C
- MIL-STD military standard for anti-vibration/shock
- CE/FCC, UKCA, E-mark certified
Description
Product Overview
The NEXCOM VTC-7280-7.5 is a compact, power-efficient in-vehicle computer designed for transportation, fleet systems, buses, light rail and mobile applications. It combines robust Intel processor performance with wide input power support, flexible I/O and expansion options in a rugged chassis built to withstand harsh mobile and industrial environments. The system supports multiple displays, network interfaces, wireless expansion and vehicle control connectivity, making it suitable for telematics, passenger information, fleet diagnostics, route control and in-vehicle HMI.
Key Features
Efficient Performance
-
Intel processors selected for a balance between power efficiency and capability
-
Designed to handle telematics, navigation, diagnostics and in-vehicle computing workloads
-
Memory and storage options sized for responsive operation in mobile environments
Rugged, Vehicle-Ready Design
-
Compact enclosure built for installation in control panels, vehicle cabins or consoles
-
Wide operating temperature range to support extreme hot or cold conditions found in vehicles
-
Shock and vibration tolerance suitable for rolling stock, buses, trucks and industrial vehicles
-
Front panel or chassis mounting options for flexible installation
Power and Connectivity
-
Wide DC power input range for vehicle systems with power control support suitable for transport power profiles
-
Multiple Ethernet ports for network and sensor communication
-
Multiple serial interfaces (RS-232/422/485) for legacy devices, vehicle sensors or control units
-
USB ports for peripherals, storage or human interface devices
-
CAN bus support for vehicle diagnostics and control integration
-
Digital I/O for system signals and interface control
Display and I/O Expansion
-
Support for dual displays with multiple video outputs for driver or passenger information screens
-
HDMI and VGA options, depending on configuration, for local display interfaces
-
Multiple USB and serial ports to connect cameras, peripherals, scanners and sensors
Wireless and Positioning Support
-
Optional modules for LTE, 5G and Wi-Fi connectivity for telematics, remote management and diagnostics
-
GNSS support for real-time location tracking and navigation tasks
-
SIM card slots for carrier redundancy and enhanced network uptime
Dimensions Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
VTC7280-7 (P/N: 10V00728002X0)
Intel® Core™ Ultra 7 processor 155H, 5 x 2.5GbE PoE++, 1 x USB 3.2, 3 x USB 2.0, 3 x Serial, 2 x 2.5”SSD, 4DI/4DO, 2 x CAN FD, DC 9V~36V, IGN control
VTC7280-5 (P/N: 10V00728003X0)
Intel® Core™ Ultra 5 processor 125H, 5 x 2.5GbE PoE++, 1 x USB 3.2, 3 x USB 2.0, 3 x Serial, 2 x 2.5”SSD, 4DI/4DO, 2 x CAN FD, DC 9V~36V, IGN control
