SKU: VTK-GE64

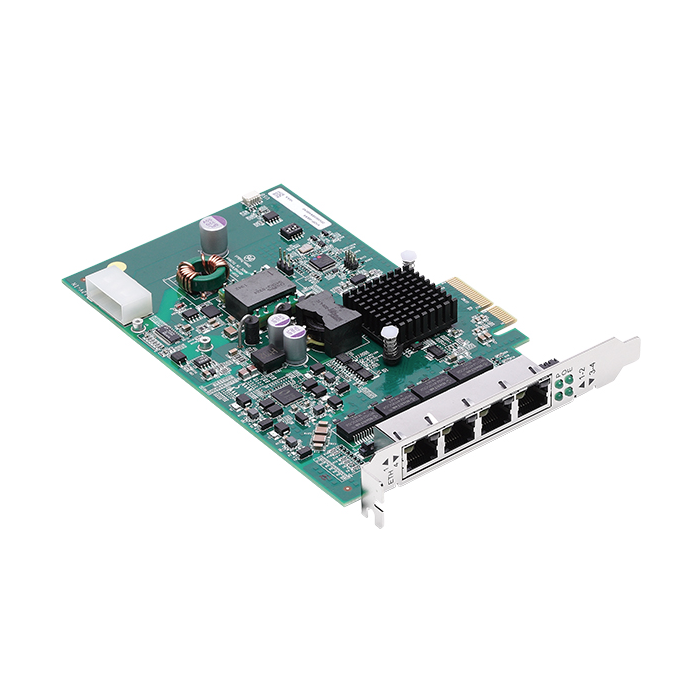

Intelligent 4-Port PoE+ GbE/GigE Frame Grabber

Datasheet

Description

In-vehicle and machine vision applications

4-Port independent GbE with PoE+ function

2KV isolation for LAN signal and power line

PoE on/off and power watt monitoring per port

Power source either from PCIe slot or extra 12VDC-IN

Half length PCIe card for easy and quick install

9K-byte Jumbo frame and PTP (IEEE 1588) support

Compliant with E-Mark, CE/FCC Class A and MIL-STD-810G for anti-vibration/shock

Tough environment with operating temp -30~85°C

Data sheet

Specifications

PCI Express	PCIe 3.0 x4 lane compliantHalf-length in size
Ethernet	4-Port RJ45 independent 10/100/1000 Mbit/sIEEE 802.3/802.3u/802.3ab and IEEE802.3x9K-byte jumbo frameIEEE 802.1AS/IEEE 1588 (PTP) supportGbE controller: Intel® 82580EB
Power over Ethernet (PoE)	IEEE 802.3af/at compliant25W per port in max., 4-port total at 60W PSEPower supply drawing from PCIe slot in default (ATC 8110)PoE on/off and power watt monitoring4-Pin power connector for extra power supply (12VDC-IN)
Protection	OCP & OVP2KV isolation for Ethernet
SDK for PoE Management	Interface: USB portWin10, Linux 4.x
Environment & Regulation	Operating temperatures: -30~85°CStorage temperatures: -40~85°CDamp heat test per EN60068-2-30Humidity: IEC60068-2-3, 40C, 95%, 48HrsCE, FCC class A, E-Mark (pre-installed on ATC 8110)
Mechanics	Anti-vibration - IEC 60068-2-64.2.5G (5~500Hz) - Operating: MIL-STD-810G, 514.6C Procedure 3, Category 4 - Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24Anti-shock - MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g - Crash hazard: Procedure V, ground equipment=75gDimension: 168mm x 111mm (L x H)Net weight: 158g
