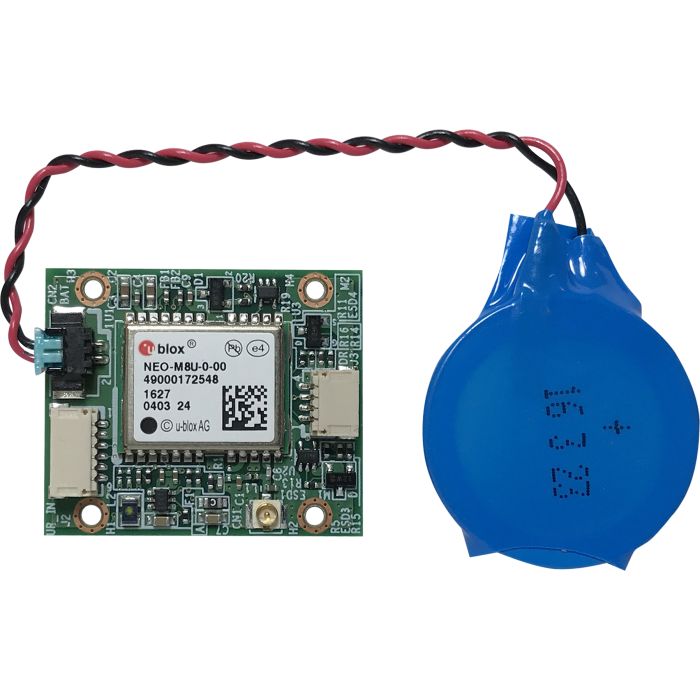

VTK-GPS-02/DR02/03 - Untethered DR GPS module
Description
An advantaged GNSS module for GPS, GLONASS, BeiDou and QZSS
u-blox M8 GNSS positioning engine featuring excellent accuracy and time-to-first fix performance
Automotive dead reckoning/untethered dead reckoning (by module)
Proprietary form factor releasing a mPCIe slot for additional application
Combines low power consumption and high sensitivity
Wide-range operating temperature
ESD and electrical protection
Download
More Information
| Specifications |
Form Factor Proprietary form factor I/O Connector Dual 6-pin wafer connector 2-Pin wafer for coin battery (by request) Function VTK-GPS-02 -- 1 x ublox NEO-M8N module for GPS, GLONASS, BeiDou and QZSS VTK-GPS-DR02 -- 1 x ublox NEO-M8L module for GPS, GLONASS, BeiDou and QZSS w/ automotive dead reckoning VTK-GPS-DR03 -- 1 x ublox NEO-M8U module for for GPS, GLONASS, BeiDou and QZSS w/ untethered dead reckoning Dimensions 25.4mm (L) x 25.4mm (W) (1.0” x 1.0”) Weight: 5g Environment Operating temperatures: -40°C~85°C Storage temperatures: -40°C~90°C Related humidity (with system chassis): 5%~90% Electrical Protection IEC 61000-4-2 electrostatic discharge (ESD): ±8KV/15KV (contact/air) Software Utility |
|---|
