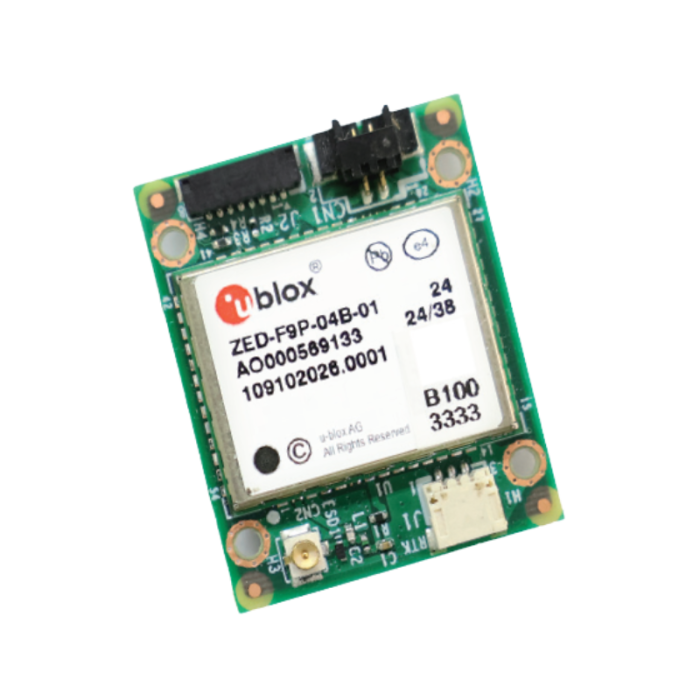

VTK-GPS-F9P/F9R u-blox ZED-F9 Series GNSS Module
Compact dual-band GNSS module with RTK, ADR, USB/UART, and wide-temp support.
Key Features:
- An advanced GNSS module supporting GPS, GLONASS, BeiDou, Galileo and QZSS with dual-band (L1 + L2) capability
- Powered by the u-blox F9 GNSS engine, providing centimetre-level accuracy in a compact, energy-efficient module
- Support multi-band RTK with fast convergence times and reliable
- Support ADR (Automotive Dead Reckoning) function (VTK-GPS-F9R)
- Proprietary form factor designed to free up a Mini PCIe slot for additional applications
- Combine low power consumption and high sensitivity
- Wide-range operating temperature: -40°C~85°C
- ESD and electrical protection: ± 8kV (contact) and ± 15kV (air)
Description
The VTK-GPS-F9 series are high-performance GNSS modules that leverage the u-blox F9 engine to support concurrent positioning with four major satellite systems: GPS, GLONASS, Galileo, and BeiDou. These modules offer high sensitivity and ultra-fast acquisition times.
Featuring a proprietary form factor, the VTK-GPS-F9 series is more compact and energy-efficient, allowing for quick and easy integration into a wide range of devices for seamless vehicle navigation and tracking.
The modules support advanced positioning technologies such as ADR (Automotive Dead Reckoning) and RTK, delivering robust performance even in challenging environments.
Designed to withstand demanding automotive conditions, the VTK-GPS-F9 series operates reliably across a wide temperature range of -40°C to 85°C. To further enhance durability, they comply with ESD protection standards of ± 8kV (contact) and ± 15kV (air), following IEC 61000-4-2.
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
|
Model |
Part Number |
Description |
|---|---|---|
|
VTK-GPS-F9P |
10VK00GPS22X0 |
u-blox NEO-F9P-04B module w/ RTK, UART I/F, supports 5V antenna, coin battery |
|
VTK-GPS-F9PU |
10VK00GPS23X0 |
u-blox NEO-F9P-04B module w/ RTK, USB I/F, supports 5V antenna, coin battery |
|
VTK-GPS-F9R |
10VK00GPS24X0 |
u-blox NEO-F9R-04B module w/ RTK and ADR, UART I/F, supports 5V antenna, coin battery |
|
VTK-GPS-F9RU |
10VK00GPS25X0 |
u-blox NEO-F9R-04B module w/ RTK and ADR, USB I/F, supports 5V antenna, coin battery |
