SKU: VTK-PA22-01

Public Address Module

Datasheet

Description

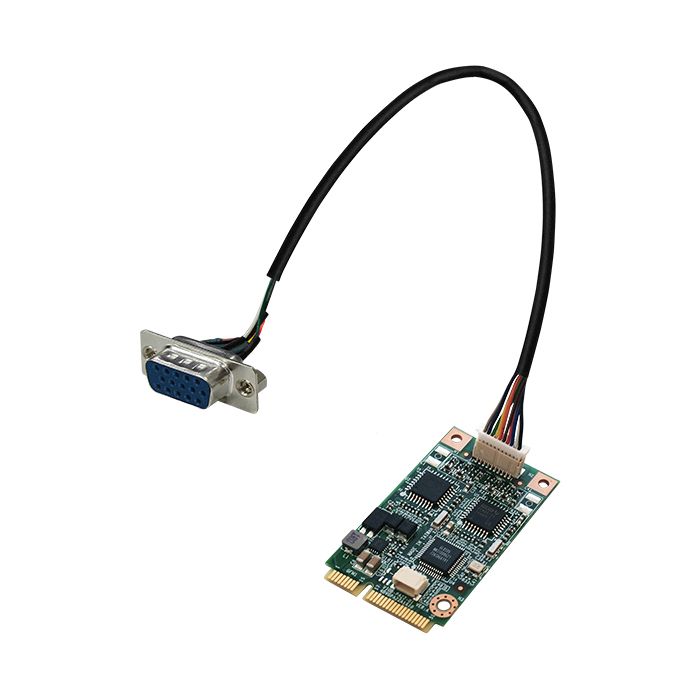

Public Address Module

· Additional 2 x Line-out & 2 x Mic-in channels for expand

· mini-PCIe form factor for easy & quick installation

· USB 2.0 interface access

· Software configurable for Windows & Linux environment

· Wide-range operating temperature

· ESD protection

Datasheet

Specifications

Form Factor	mini-PCIe form factor
PC Interface	USB 2.0
I/O Connector	DB15 connector for 2 x Line-out & 2 x Mic-in
Dimension	51mm (L) x 30mm (W) (2.01" x 1.18") Weight: 13g
Environment	Operating temperatures: -40°C~85°C Storage temperatures: -40°C~90°C Related humidity (with system chassis): 5%~90%
Certificate	CE, FCC Class A IEC 61000-4-2 electrostatic discharge (ESD): ± 8KV/15KV (contact/air)
Operating System	Windows XP/7/8/10 Linux kernel 3.x.x
Software	Windows, linux: sample codes Windows: demo utility
